Manufacturer	Mitac
Part Number	ND118T-8MD-1G8G-LVDS

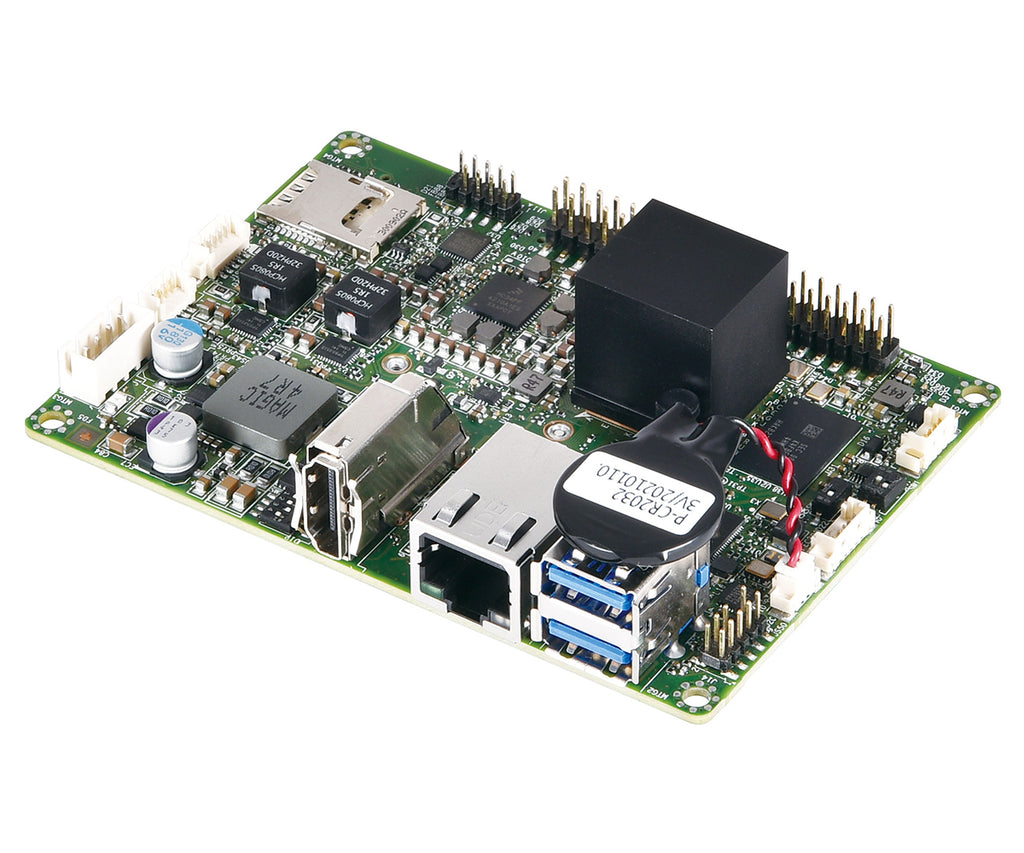

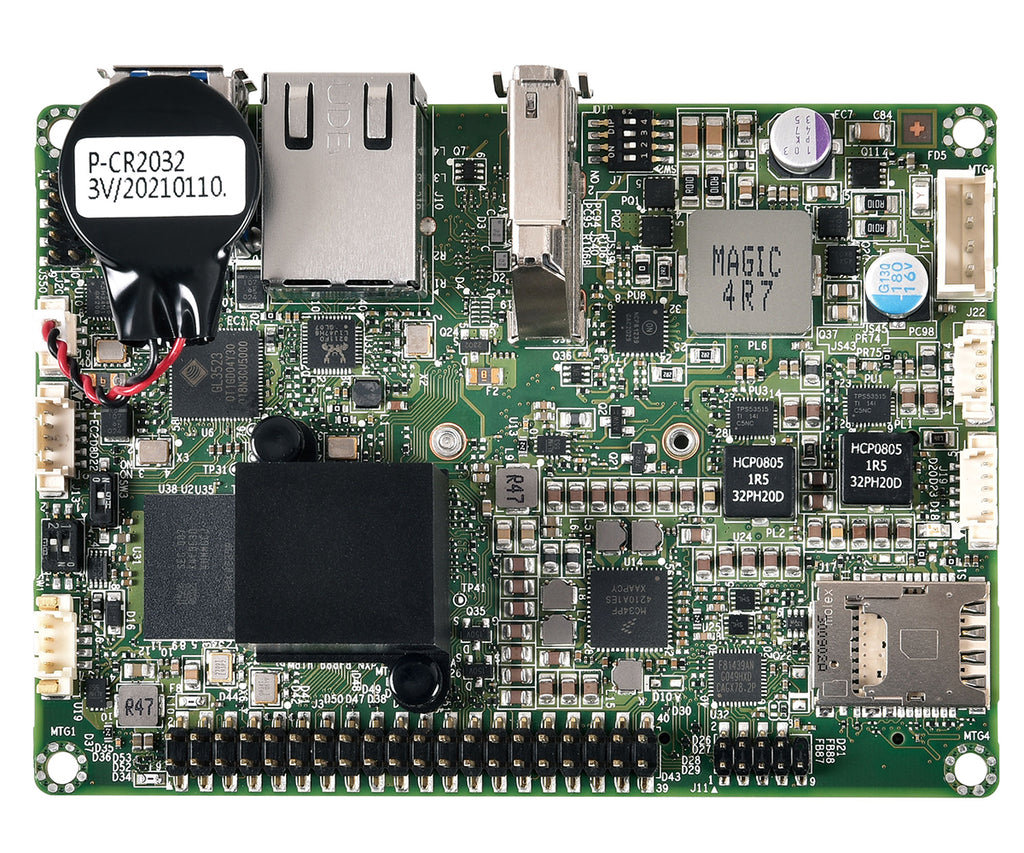

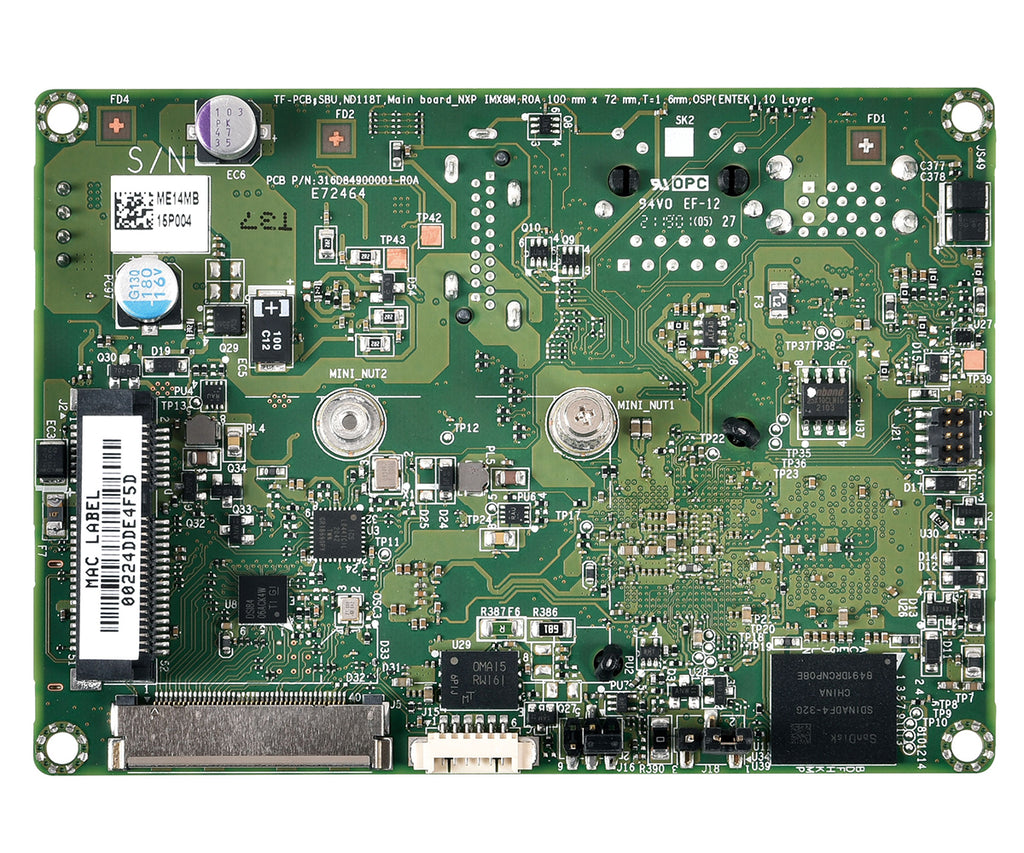

Model Name	ND118T
CPU	NXP i.MX8M Dual Core Processor 2 ARM Cortex-A53 Cores 1.3 GHz
Chipset	SoC
Memory	Onboard 1GB LPDDR4 Memory 800 MHz
Video	i.MX8 Integrated Graphics HDMI Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1080@60Hz
Audio	Realtek ALC5660
Storage Technology	Onboard eMMC 8GB Storage
Connectivity	1 x Realtek RTL8211FD GbE LAN
Expansion Slots	1 x Mini PCIe Slot (Full/Half Size, PCIe/USB)
Power	12-24V 4-Pin Power Connector

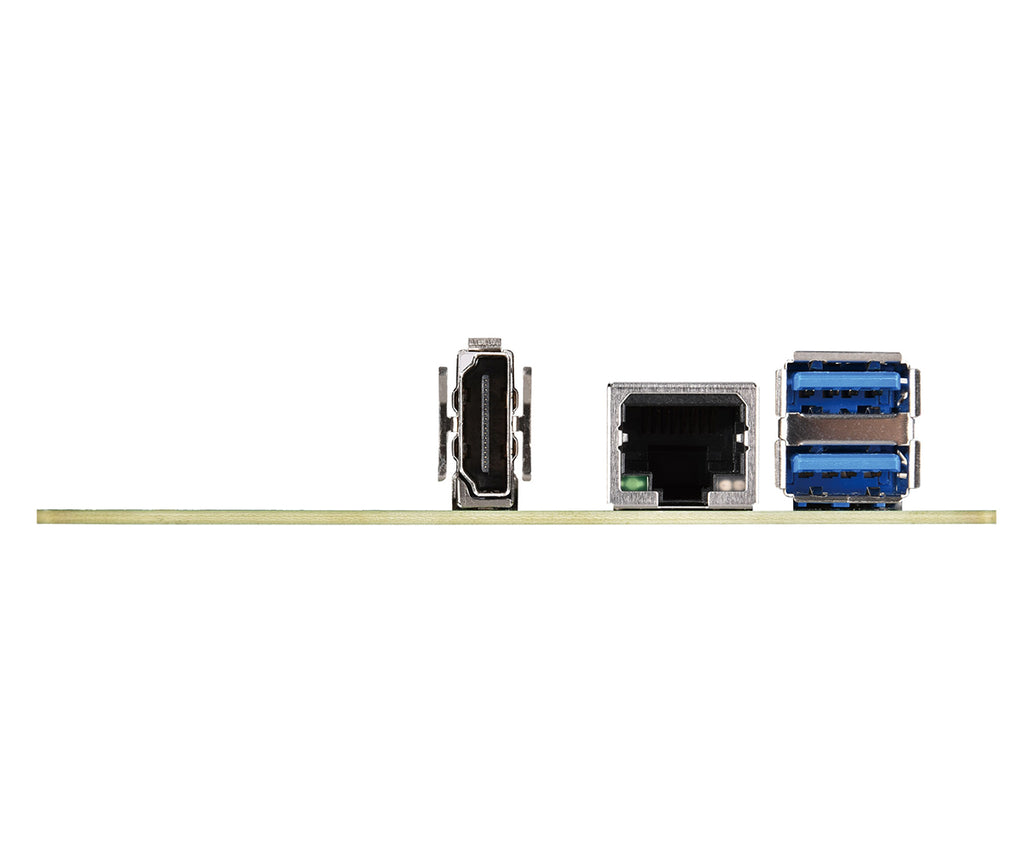

Rear I/O	1 x HDMI 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen1)
Onboard I/O Headers	1 x Micro SIM or Micro SD Combo Card Slot 1 x USB 2.0 header 1 x USB 2.0 OTG Port header 1 x Backlight Connector 1 x LVDS 1 x LCD PWR Selection header 1 x Audio Header (Mic In and Line Out) 1 x RS232/422/485 header 1 x 40-Pin General Purpose header (Compatible with Raspberry Pi 40-Pin header)
OS Support	Yocto 2.4/3.2/4.0 Ubuntu 20.04/22.04 Android 9 RUST: 1.56/1.66
Form Factor	Pico ITX 3.94" x 2.84" (in inches) 100 x 72mm
Environmental	Operating Temperature: -10°C to 65°C (-14°F to 149°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 10% to 95% (non condensing)
Compliance	CE / FCC Class B
Warranty	1-Year Manufacturer's Limited Warranty
