| Manufacturer | ASUS |

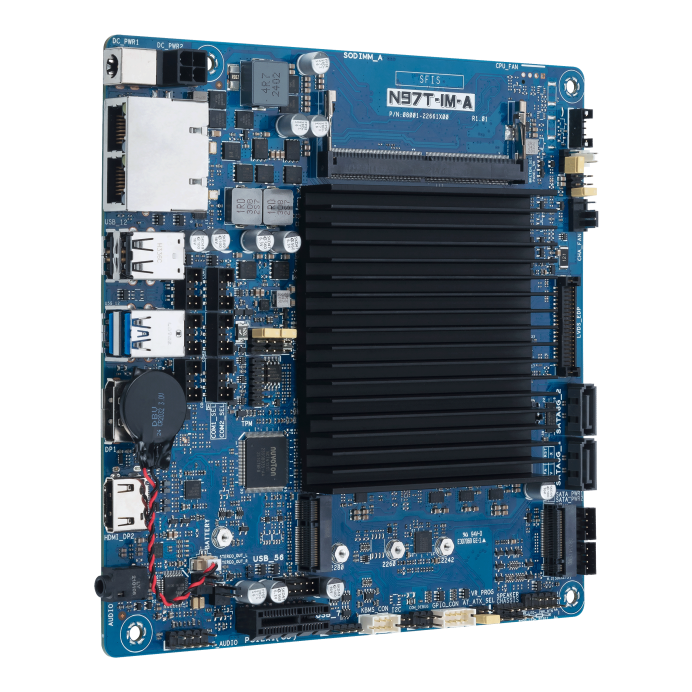

| Part Number | N97T-IM-A |
| CPU | Intel N97 Processor 3.60 GHz 4 Cores/4 Threads 12W TDP, 6 MB Intel Smart Cache |
| Chipset | SoC |
| Memory | 1 x DDR5 SODIMM slot Maximum 32GB Capacity 4800 MHz |
| Video | Intel UHD Graphics 1.20 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@60Hz DisplayPort 1.2 Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Triple Displays |
| Audio | Realtek ALC897 (Default Line-OUT, supports Line-IN by retasking) |
| Storage Technology | 2 x SATA Connector (Port 2 is multiplexed with the M.2 M-Key Slot when installing M.2 SATA drive) 1 x M.2 2242/2260/2280 M-key slot (SATA or PCIe 3.0 x2) |
| Connectivity | 2 x Realtek RTL8111H |
| Expansion Slots | 1 x PCIe 3.0 x1 Slot 1 x M.2 2242/2260/2280 M-key slot (SATA or PCIe 3.0 x2) 1 x M.2 2230 slot (E Key, PCIe x1 + USB 2.0 or CNVi) |
| Power | 9 - 36V Wide Voltage Input (2.5mm ID/5.5mm OD) Alternate 4-Pin Power Connector (internal) |
| Rear I/O | 1 x DC-IN 2 x Gigabit Ethernet RJ45 2 x USB 2.0 2 x USB 3.2 Gen1 1 x DisplayPort 1 x HDMI 1 x Audio I/O |
| Onboard I/O Headers |
6 x Serial COM1 Supports RS232/422/485: Ring/5V/12V select, switch by jumper COM2 supports RS232: Ring/5V/12V select, switch by jumper COM3 - COM6 Supports RS232 3 x USB 2.0 header (up to 3 ports) 1 x 4-pin PWM Chassis Fan header 1 x Front Audio header (Mic In and Line out) 1 x Front Panel Audio (Analog) 1 x Chassis Instrusion 1 x Buzzer header 2 x Stereo OUT (2-pin, 3W/channel amplifier) 1 x GPIO (8-bit) 1 x Clear CMOS 1 x COM Debug Header |
| OS Support | Windows 10 64-bit Windows 11 64-bit Windows IoT Enterprise Ubuntu RHEL OpenSUSE |
| Form Factor | Thin Mini ITX 6.7" x 6.7" 170 x 170mm |
| Environmental | Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% (non condensing) @ 40°C |
| Compliance | CE, FCC, VCCI, BSMI, RCM, CE-LVD |
| Warranty | 3-Year Manufacturer's Limited Warranty |
PRODUCT ID: N97T-IM-A
