| Manufacturer |
ASUS
|
| Part Number |

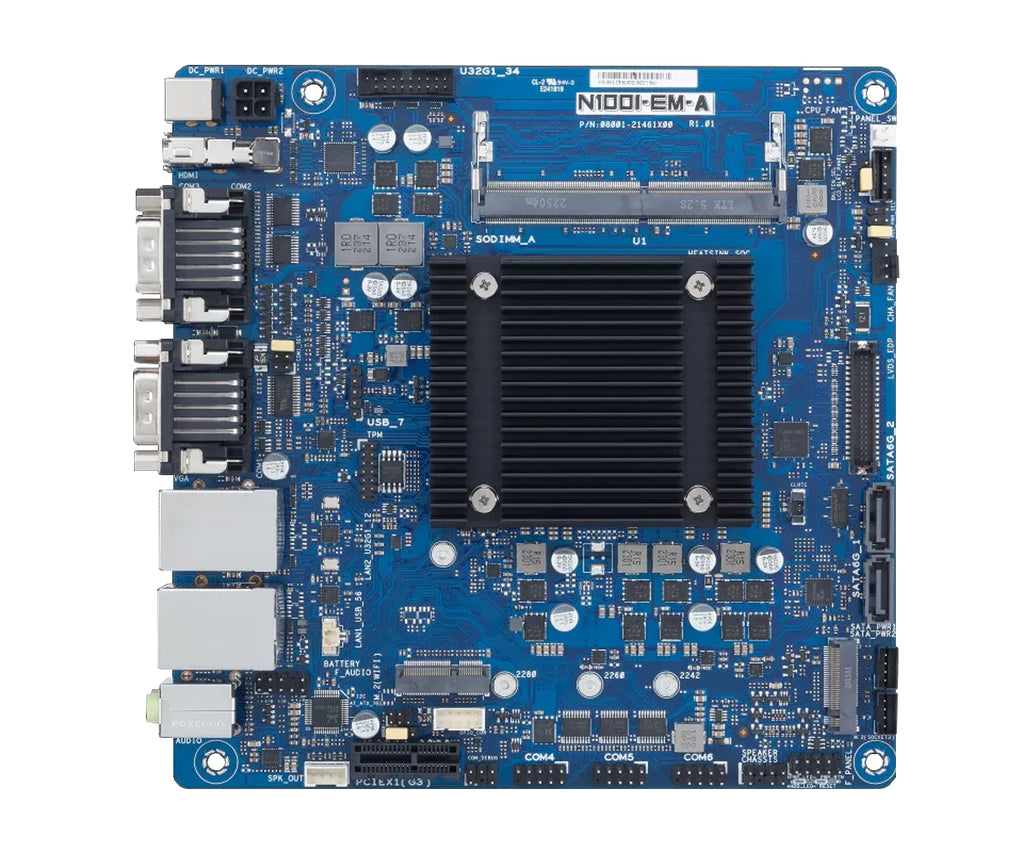

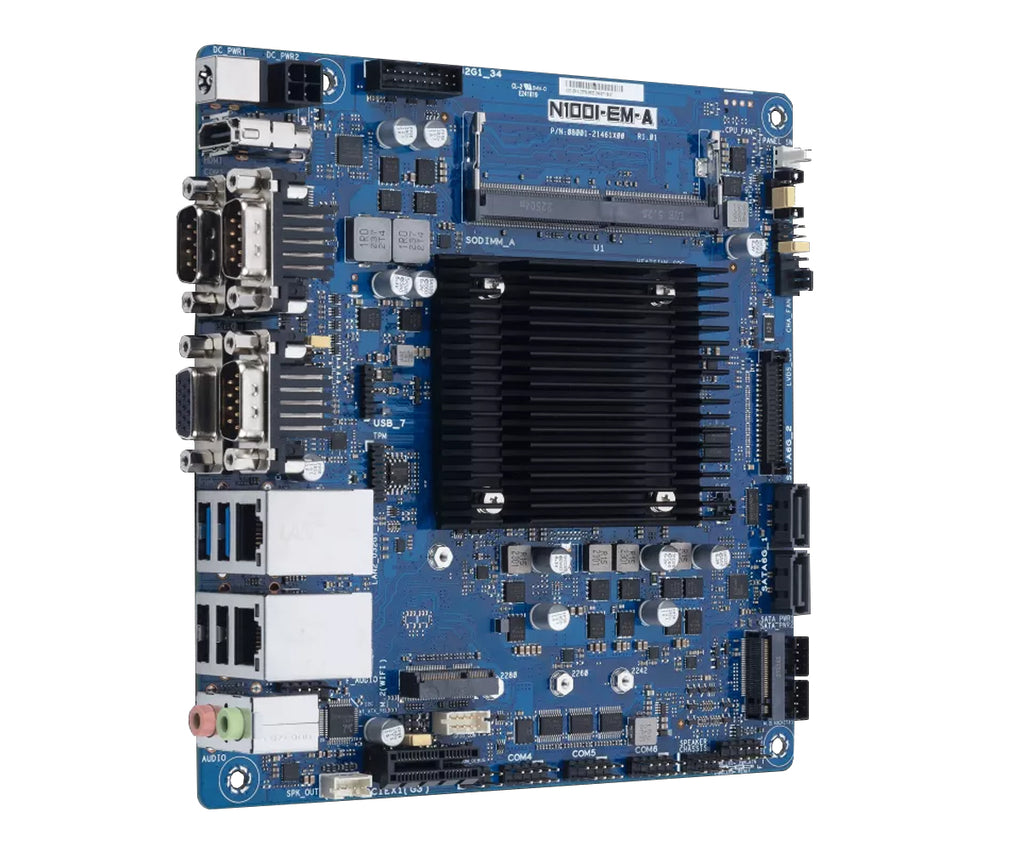

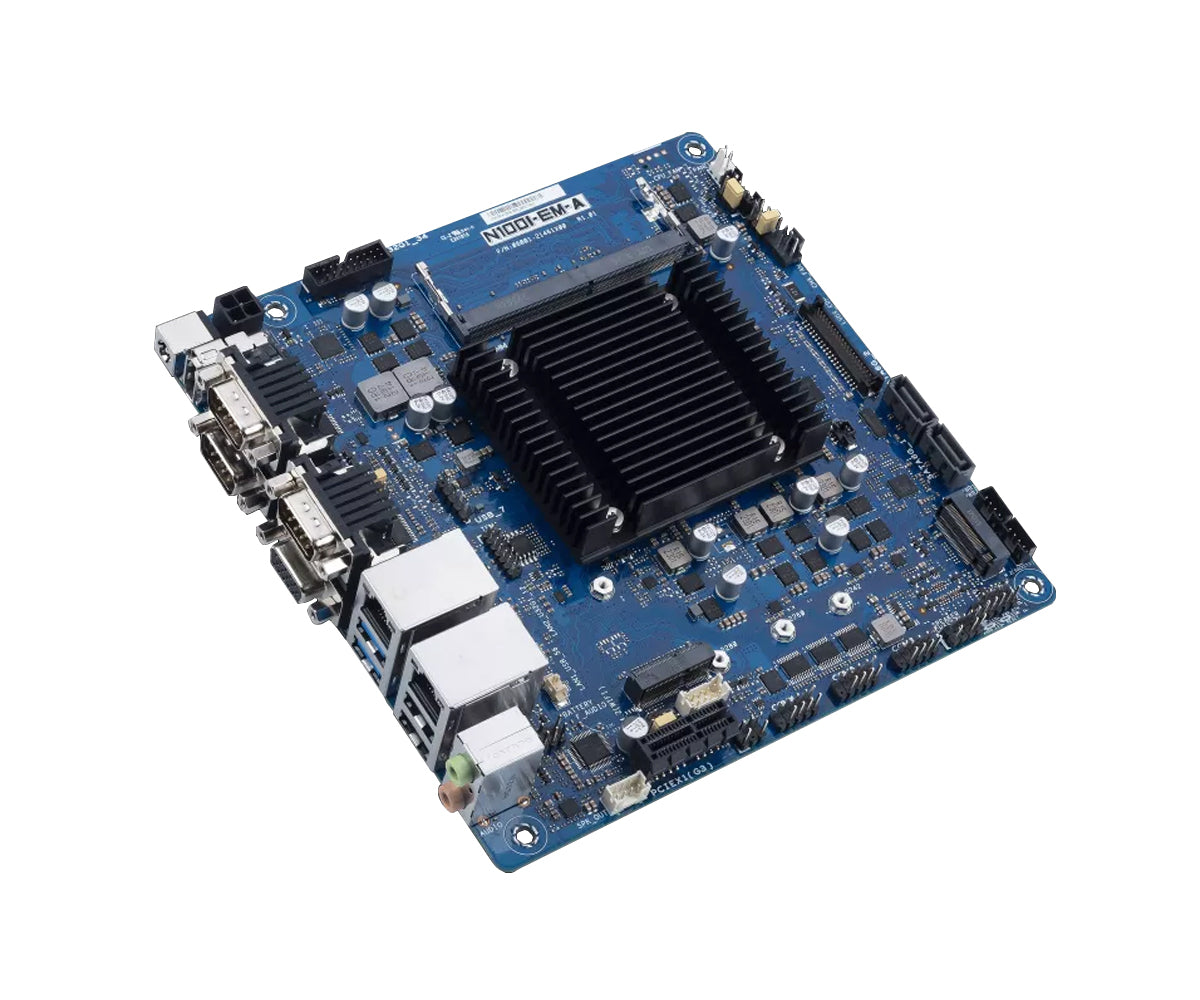

N100I-EM-A
|
| CPU |
Intel Celeron N100 Processor
4 Cores / 4 Threads
3.40 GHz
6W TDP, 6 MB Intel Smart Cache
|
| Chipset |
SoC
|
| Memory |
1 x DDR4 SODIMM slot
Maximum 16GB Capacity
3200 MHz
Non-ECC
|
| Video |
Intel UHD Graphics
750 MHz
24 Execution Units
HDMI Max Resolution: 3840x2160@60Hz
VGA Max Resolution: 1920x1200@60Hz
LVDS Max Resolution: 1920x1200@60Hz
Supports Triple Displays
|
| Audio |
Realtek ALC897 High Definition Audio
|
| Storage Technology |
2 x SATA3 6Gb/s Ports
1 x M.2 2280/2260/2242 slot (M Key, SATA/PCI-E 3.0 x1)
|
| Connectivity |
2 x Realtek RTL8111H GbE LAN
|
| Expansion Slots |
1 x PCI-E 3.0 x1 slot (x1 signal)
1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)
|
| Power |
12V DC-IN Barrel Connector
Alternate 4-Pin ATX Connector (DC In Mode)
|

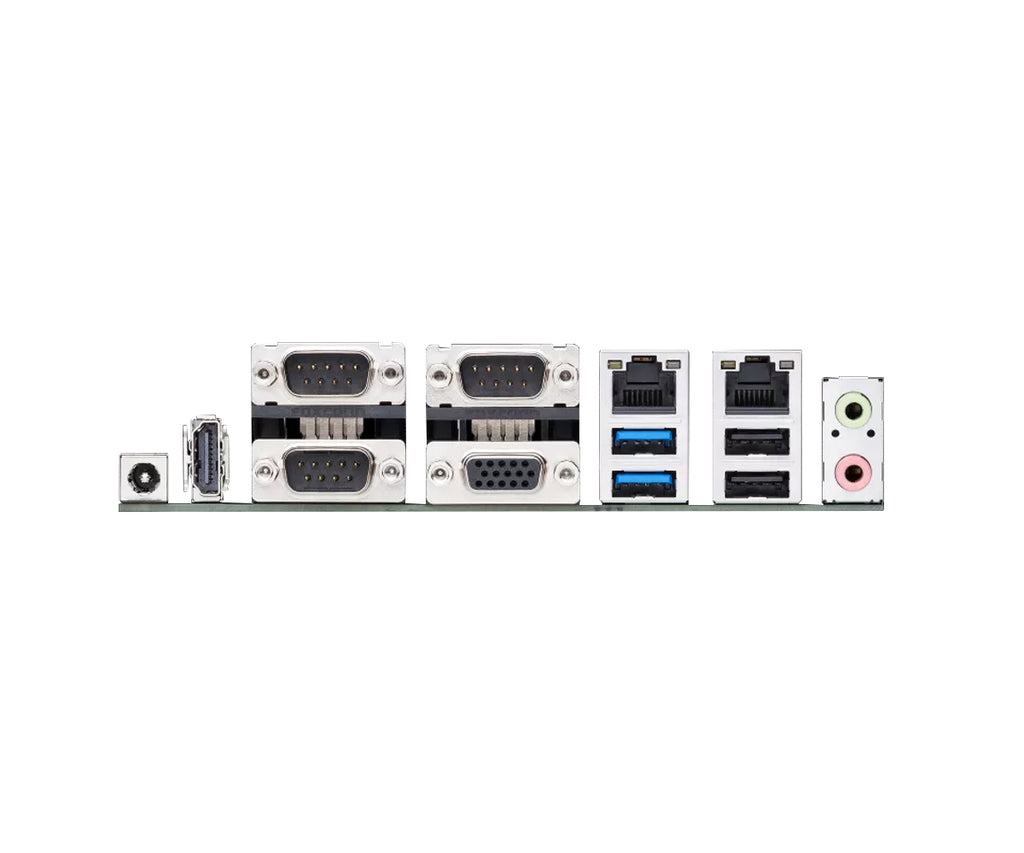

| Rear I/O |
1 x 12V DC-IN
1 x HDMI
2 x COM (RS232)
1 x COM (RS232/422/485)
1 x VGA
2 x RJ45 GbE LAN
2 x USB 3.2 (Gen1)
2 x USB 2.0
2 x Audio I/O
|
| Onboard I/O Headers |
1 x USB 3.2 (Gen1) header (Supports 2 ports)
1 x USB 2.0 header (Supports 1 port)
1 x Chassis Fan header
1 x Chassis Intrusion header
1 x Front Panel Audio header
3 x Serial Port header (RS232)
1 x System Panel header
1 x Speaker header
1 x Stereo Out header
1 x Clear CMOS header
1 x COM debug header
1 x GPIO connector
1 x LVDS Signal header
1 x LCD Panel Monitor Switch header
1 x LVDS Panel VCC Power Selection jumper
1 x LVDS Panel Backlight Enable Signal Selection jumper
1 x LVDS Backlight Panel header
1 x SPI TPM header
|
| OS Support |
Windows 10 (64-bit)
Windos IoT Enterprise
Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE
|
| Form Factor |
Mini ITX
6.7" x 6.7"
170 x 170mm
|
| Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 95% @ 40°C (non condensing)
|
| Warranty |
1-Year Manufacturer's Limited Warranty
|
