| Manufacturer | Mitac |
| Product ID | MZ1-10ADP-R680E-AC1000 |
| Model Name | MZ1-10ADP |
| CPU | Supports Intel 13th/12th Gen Processors LGA1700 Up to 125W TDP |
| Chipset | Intel R680E |
| Memory | 2 x DDR5 SODIMM slots 4800 MHz Maximum 64GB Capacity Xeon CPUs support ECC/Non-ECC Core/Celeron/Pentium support Non-ECC |
| Video | Intel UHD Graphics (CPU Dependent) VGA Max Resolution: 1920x1080@60Hz HDMI Max Resolution: 4096x2304@60Hz DisplayPort Max Resolution: 7680x4320@60Hz |
| Audio | Realtek ALC888S |
| Storage Technology | 4 x SATA6 Gb/s Connectors 1 x M.2 2280/2262/2242 slot (M Key, PCI-E x4/SATA) 1 x M.2 2280/2260/2242 slot (B Key, SATA) 1 x Mini PCI-E (SATA/USB2.0/PCIe x1) 1 x CFast Slot |
| Connectivity | 1 x Intel I225-LM 2.5GbE LAN 1 x Intel I225-V 2.5GbE LAN |
| Expansion Slots | 1 x PCI-E 4.0 x16 or PCI-E 4.0 x8 slot 2 x PCI-E 4.0 x16 slot (x4 Link) 1 x PCI-E 4.0 x16 slot (x8 Link) 1 x PCI-E 3.0 x1 slot (Open Ended Connector) 1 x Mini PCI-E slot (USB2.0/PCIe x1) |

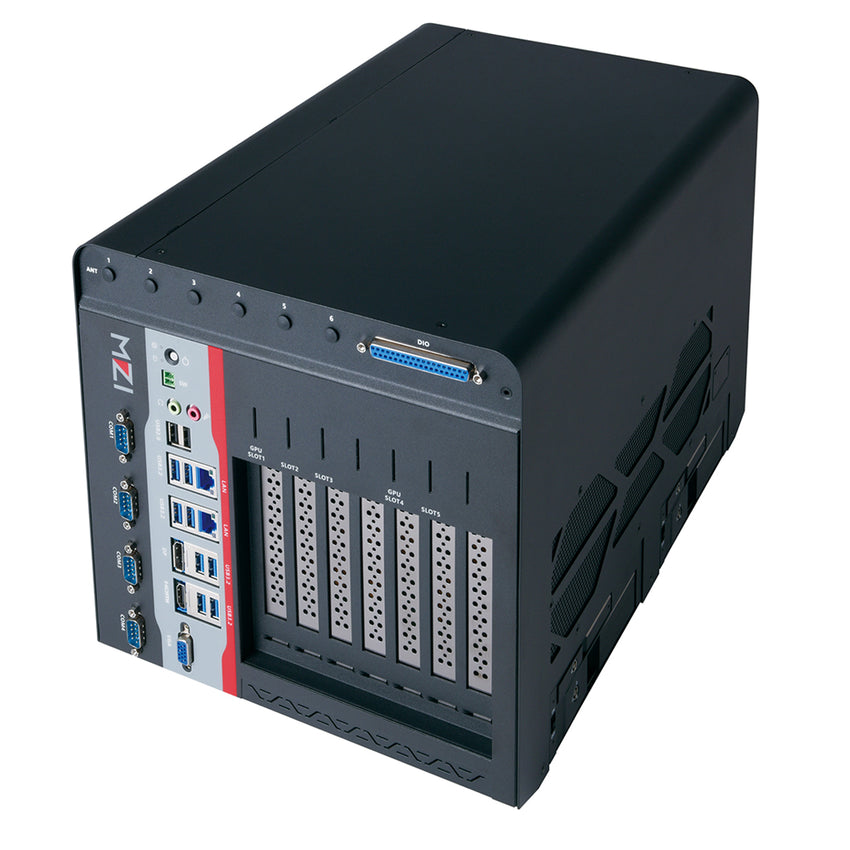

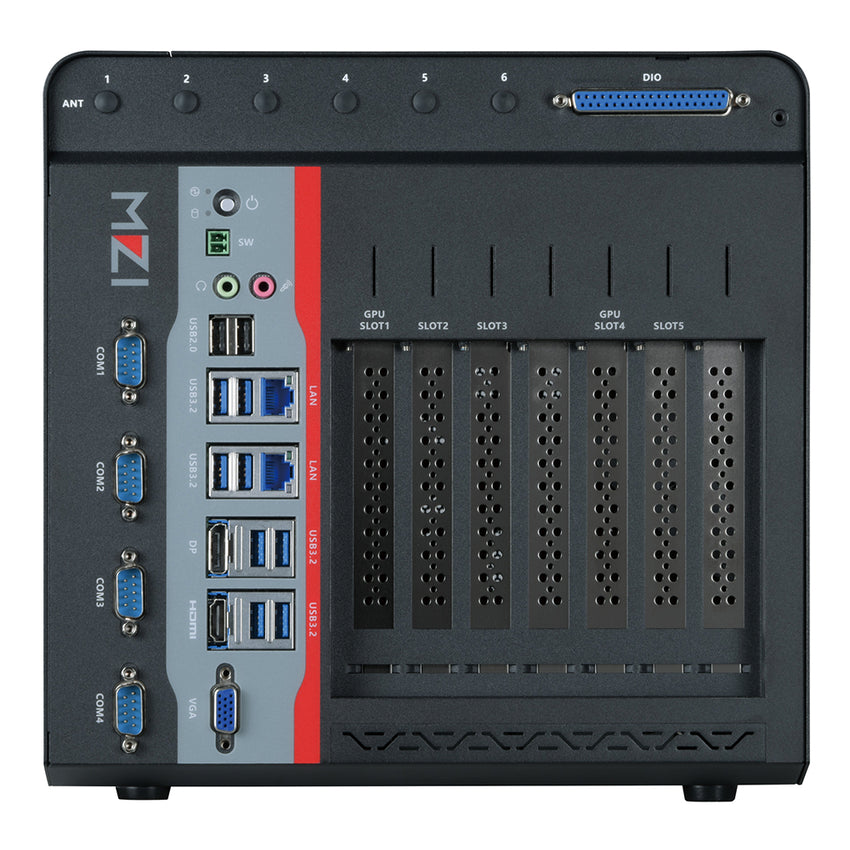

| Front Panel I/O | 1 x DB37 Connector (32-bit DIO) 6 x Antenna Cutout 1 x Power Button with LED 2 x Status LED (System, HDD) 1 x 2-Pin Remote Switch 2 x Audio I/O 2 x USB 2.0 1 x COM (RS232/422/485) 3 x COM (RS232) 2 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen1) 4 x USB 3.2 (Gen2) 1 x DisplayPort 1 x HDMI 1 x VGA |

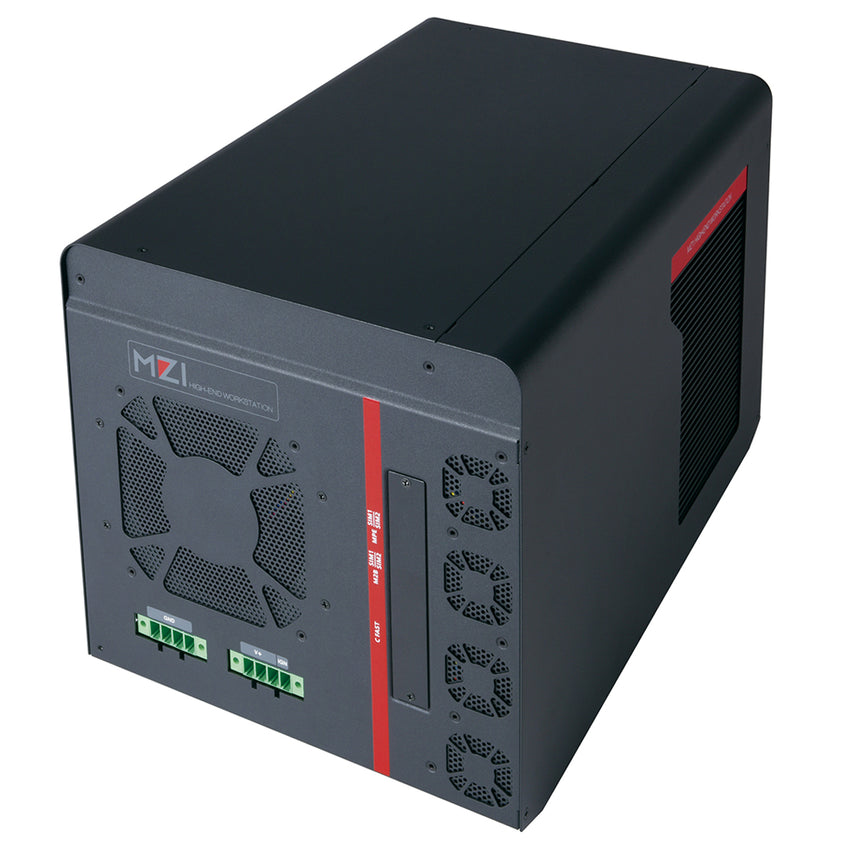

| Rear Panel I/O | 2 x 4-Pin 9-48V Terminal Block Power Input 1 x CFast Slot 2 x SIM slot to M.2 B-Key slot 2 x SIM slot to Mini PCI-E slot |
| Drive Support | 2 x 2.5" Hotswap SATA Bays (9.5mm Max) 2 x 3.5" Hotswap SATA Bays |
| OS Support | Windows 11 Windows 10 Ubuntu 22.04 |
| Power Supply | 2 x 4-Pin 9-48V Terminal Block Power Input Includes 1000W AC-DC Adapter |
| Case Dimensions | 264 x 415 x 256mm 10.4" x 16.3" x 10" (in inches) |
| Mounting | Wallmount |
| Environmental | *Max OT limit -10°C w/ dual GPU card / with 0.7m/s Air Flow and Wide Temperature Memory/Storage Operating Temperature (w/ 35W CPU, w/o GPU card): -40°C to 70°C (-40°F to 158°F) Operating Temperature (w/ 65W CPU, w/o GPU card): -40°C to 60°C (-40°F to 140°F) Operating Temperature (w/ 80W CPU, w/o GPU card): -40°C to 50°C (-40°F to 122°F) Operating Temperature (w/ 125W CPU, w/o GPU card): -40°C to 40°C (-40°F to 104°F) Non-operating Temperature: -40°C to 85°C (-40°F to 158°F) Operating Humidity: 10% to 90% (non-condensing) Non-operating Humidty: 10% to 95% (non-condensing) Vibration Resistance: MIL-STD-810H, Follow Method 514.8C-I Category 4 for Truck Shock Resistance: MIL-STD-810H 516.8 procedure I - functional shock, Operating 20G, 11ms (Follow IEC 60068-2-27 half sine) |
| Compliance | CE / FCC Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: MZ1-10ADP-R680E
