Model Number	MXO-T1135G7N12
CPU	Intel Core i5-1135G7 Processor 4 Cores / 8 Threads 2.4 - 4.2 GHz 12-28W TDP, 8MB Intel Smart Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Supports up to 64GB Capacity 3200/2933/2666 MHz Dual Channel Non-ECC, Unbuffered Memory Only
Video	Intel Iris Xe Graphics 1.10 GHz Mini DisplayPort Max Resolution: 4K@60Hz HDMI Max Resolution: 4K@60Hz Thunderbolt 4.0 to HDMI 2.1 or DisplayPort 1.4 Supports 4 Displays
Audio	USB HD Audio
Storage Technology	1 x SATA3 6.0 Gb/s Connector 1 x M.2 2280 slot: SATA or PCI-E 3.0 x4
Connectivity	1 x Realtek RT8111H GbE LAN Supports Wake On LAN Supports PXE Boot
Expansion Slots	1 x M.2 2242 slot 1 x M.2 2230 slot

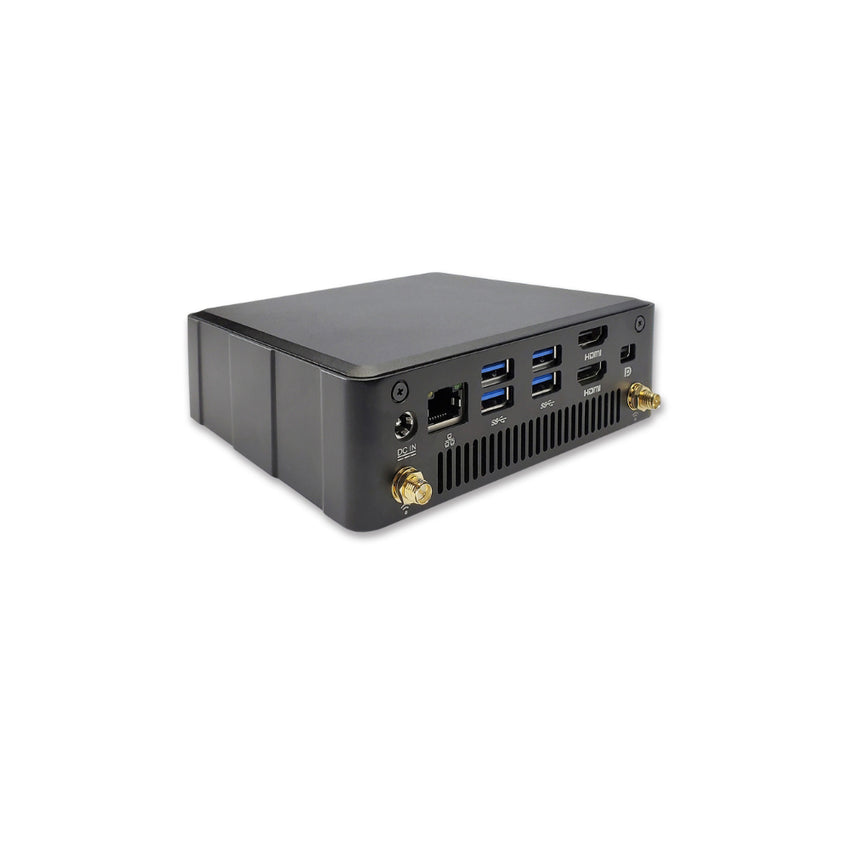

Rear Panel I/O	1 x 12-19V DC-IN 1 x RJ45 GbE LAN 4 x USB 3.1 2 x HDMI 1 x Mini DisplayPort 2 x Antenna Holes

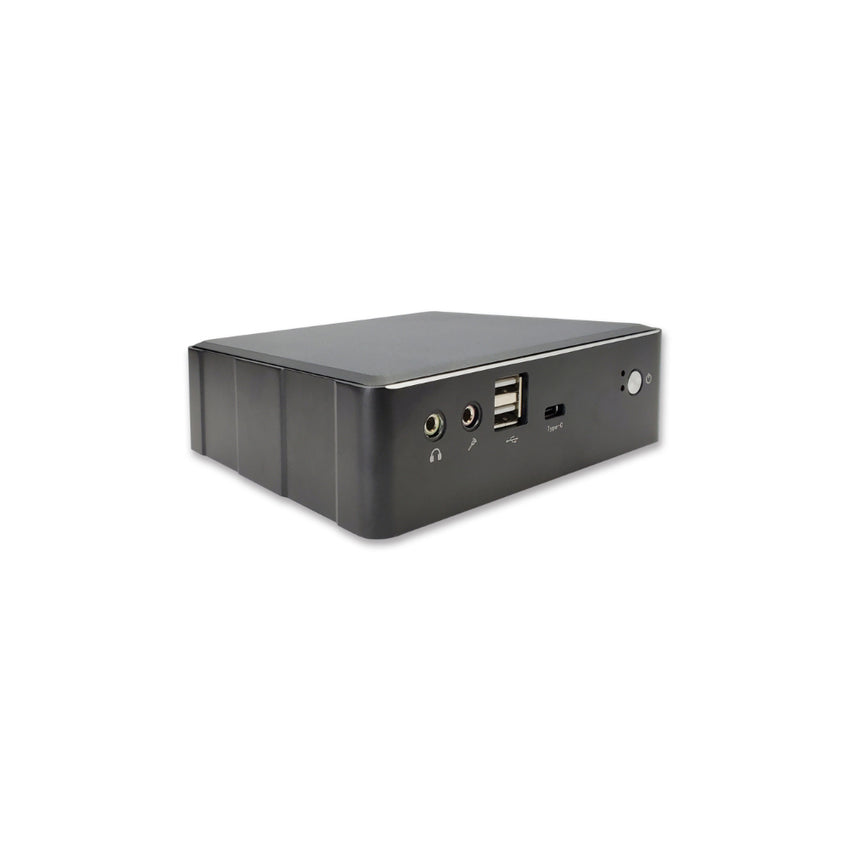

Front Panel I/O	2 x Audio I/O 2 x USB 2.0 1 x Thunderbolt 4.0 Type-C 2 x Status LED (Power, HDD) 1 x Power Button
Drive Support	1 x 2.5 " SATA Drive Bay 1 x M.2 2280 slot (SATA, PCI-E 3.0 x4)
OS Support	Windows 10, IoT Linux
Power Supply	12V or 19V DC-IN 60W 12V AC DC Adapter
Case Dimensions	5.44" x 4.95" x 1.48" (in inches)
Environmental	Operating Temperature: -5°C to 45°C (-4°F to 113°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Compliance	FCC, CE, RoHS Certified
Warranty	1-Year Warranty on Parts and Labor
