Model Number	MXO-T1135G7iF
CPU	Intel Core i5-1135G7 Processor 4 Cores / 8 Threads 1.8 - 4.2 GHz 15W TDP, 8MB Intel Smart Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Supports up to 32GB Capacity 4267/3200/2666 MHz Dual Channel Non-ECC, Unbuffered Memory Only
Video	Intel Iris Xe Graphics 1.10 GHz DisplayPort Max Resolution: 4K@60Hz HDMI Max Resolution: 4K@60Hz Supports 4 Displays
Audio	Realtek ALC897 7.1 Channel 2 x 3.5mm Analog Stereo Audio Jack
Storage Technology	1 x SATA3 6.0 Gb/s Connector M.2: SATA or PCI-E 3.0 x4
Connectivity	1 x Intel i211 GbE LAN 1 x Intel i219 GbE LAN Supports Wake On LAN Supports PXE Boot
Expansion Slots	1 x M.2 2242 slot 1 x M.2 2230 slot 1 x Mini PCI-E slot

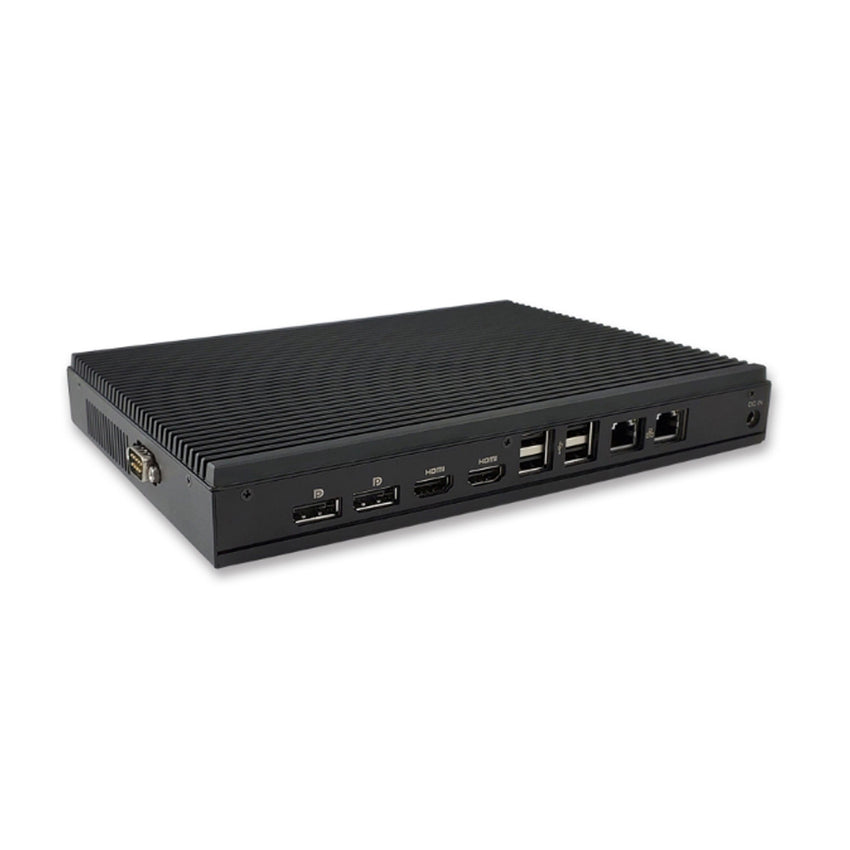

Rear Panel I/O	2 x DisplayPort 2 x HDMI 2 x USB 3.0 2 x USB 2.0 2 x RJ45 GbE LAN 1 x 12V or 19V DC-IN

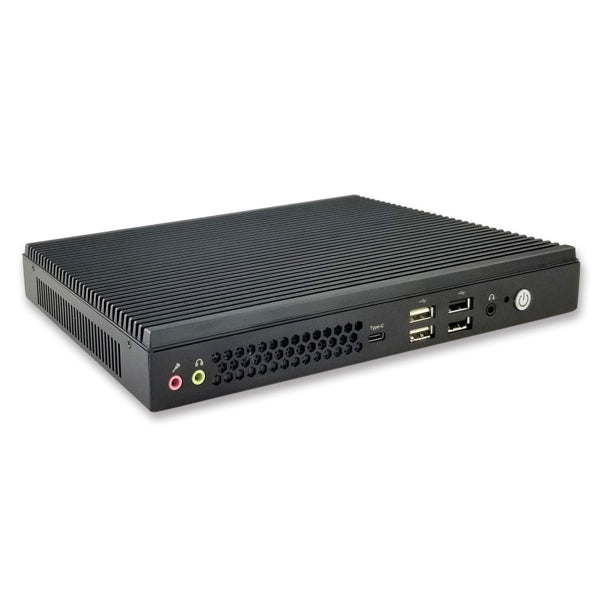

Front Panel I/O	3 x 3.5mm Audio In/Out 1 x USB Type-C Port 4 x USB 2.0 1 x Power LED 1 x Power Button
Side Panel I/O	1 x Serial COM Port
Drive Support	1 x M.2 2280 slot (SATA, PCI-E 3.0 x4)
OS Support	Windows 10, IoT Linux
Power Supply	12V or 19V DC-IN 60W 12V AC DC Adapter
Case Dimensions	9.25" x 6.8" x 1.3" (in inches) 235 x 173 x 33mm
Environmental	Operating Temperature: -20°C to 50°C (-4°F to 122°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Compliance	FCC, CE, RoHS Certified
Warranty	1-Year Warranty on Parts and Labor
