Model Number	MXO-G4100MX5
CPU	Intel Celeron N4100 Processor 4 Cores / 4 Threads 1.10 - 2.40 GHz 6W TDP, 4MB Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Supports up to 8GB Capacity 2666/2400/2133 MHz Dual Channel Non-ECC, Unbuffered Memory Only
Video	Intel UHD Graphics 600 200 - 700 MHz HDMI Max Resolution: 4096x2160@60Hz (Support HDCP) Mini DisplayPort Max Resolution: 4K@60Hz Type-C Port to DP or HDMI Max Resolution: 4K@60Hz Supports Triple Displays
Audio	Realtek ALC662 5.1 Channel 1 x 3.5mm Analog Stereo Jack Supports Optical S/PDIF Converter
Storage Technology	64GB eMMC Flash Storage M.2: PCI-E 3.0 x4 or SATA
Connectivity	1 x Realtek GbE LAN Supports Wake On Lan, PXE Boot 802.11ac Dual Band WIFI Bluetooth 4.0
Expansion Slots	1 x M.2 2230 slot (Occupied by WIFI Module)

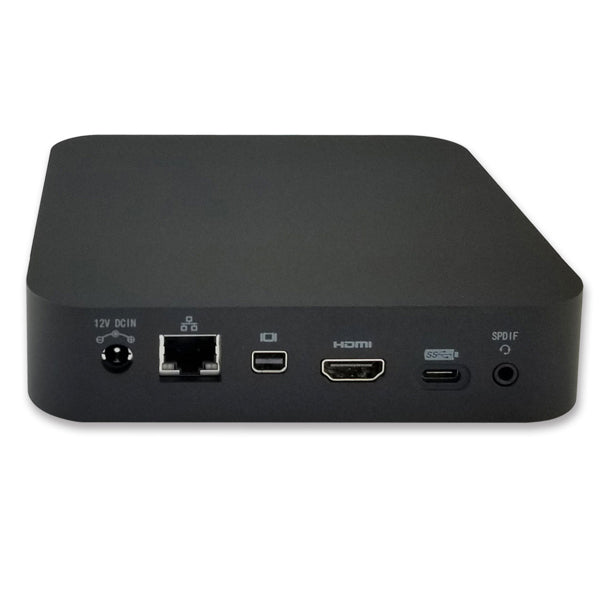

Side Panel I/O	1 x 12V DC-IN 1 x RJ45 GbE LAN 1 x Mini DisplayPort 1 x HDMI 1 x USB Type-C Port 1 x 3.5mm Audio Jack

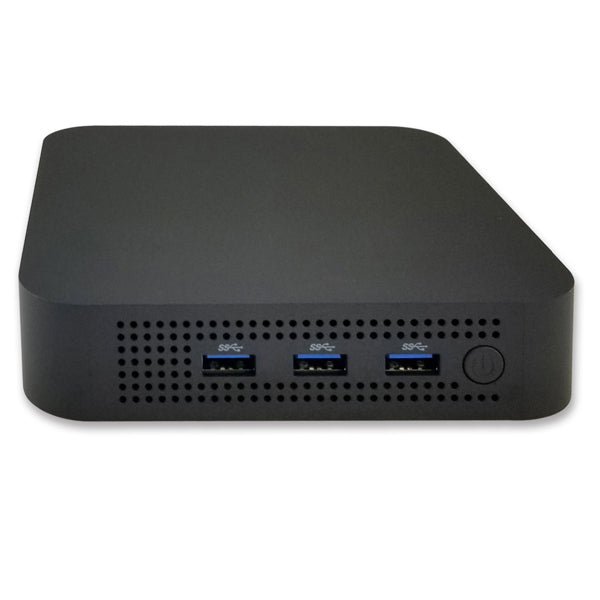

Front Panel I/O	3 x USB 3.0 1 x Power Button
Drive Support	1 x M.2 2280 slot (PCI-E 3.0 x4, SATA)
OS Support	Windows 10, IoT Linux
Cooling	Copper Heatpipe Cooling Blower
Power Supply	12V DC-IN 36W 12V AC DC Adapter
Case Dimensions	5.5" x 5.5" x 1.4" (in inches) 139.7 x 139.7 x 35.6mm
Environmental	Operating Temperature: 0°C to 55°C (32°F to 131°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Compliance	RoHS Certified
Warranty	1-Year Warranty on Parts and Labor
