| Manufacturer | Mitac |
| Product ID | MX2-10ADP-AC300 |
| Model Name | MX2-10ADP |
| CPU |
Supports Intel 14th/13th/12th Gen Core Processors Socket LGA 1700 Up to 65W TDP |
| Chipset |
Intel R680E Nuvoton NPCT760AABYX TPM 2.0 |
| Memory |
2 x DDR5 SODIMM slots Maximum 96GB Capacity Supports ECC/Non-ECC 4800 MHz |
| Video |
Intel UHD Graphics DisplayPort 1.4 Max Resolution: 3840x2160@60Hz HDMI 1.4 Max Resolution: 3840x2160@30Hz VGA Max Resolution: 1920x1080@60Hz Supports Triple Displays |
| Audio | Realtek ALC888 |
| Storage Technology |
1 x SATA Connectors 1 x M.2 2280/2260/2242/2230 slot (PCI-E 4.0 x4, SATA) 1 x Mini PCI-E slot (USB 2.0, PCIe x1, SATA) 1 x M.2 3052/3042/2242/2260 slot (USB 3.0, SATA, PCIe x1) |
| Connectivity |
4 x Intel I226-LM 2.5G LAN |
| Expansion Slots |
1 x PCI-E 4.0 x16 slot (Single Slot, Maximum 111.15 x 200 x 18.7mm) 1 x Mini PCI-E slot (USB 2.0, PCIe x1, SATA) 1 x M.2 3052/3042/2242/2260 slot (USB 3.0, SATA, PCIe x1) 1 x M.2 2230 slot (CNVi, PCIe x1, USB 2.0) 2 x SIM Slots 2 x Xpansion Slots |

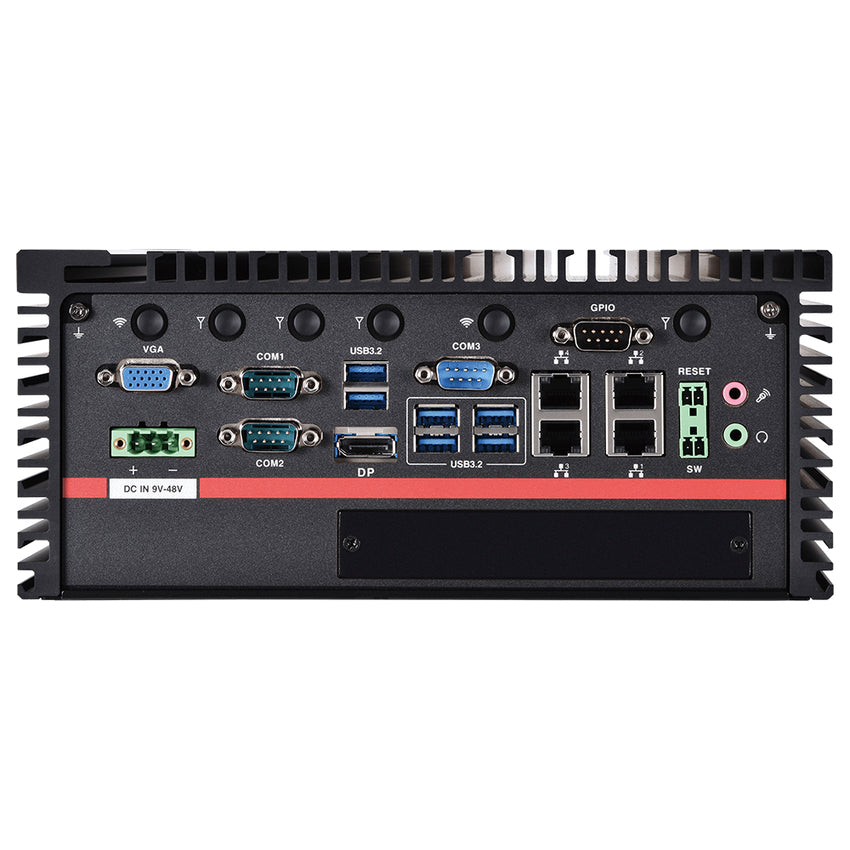

| Rear Panel I/O |
6 x Antenna Cutouts 1 x VGA 1 x 9-24V 3-Pin Terminal Block DC-IN 3 x COM (RS232/422/485) 2 x USB 3.2 (Gen2) 1 x DisplayPort 1 x 8-bit GPIO 4 x RJ45 2.5G LAN 1 x 2-Pin Terminal Block Remote Reset Button 1 x 2-Pin Terminal Block Remote Power Button 2 x Audio I/O |

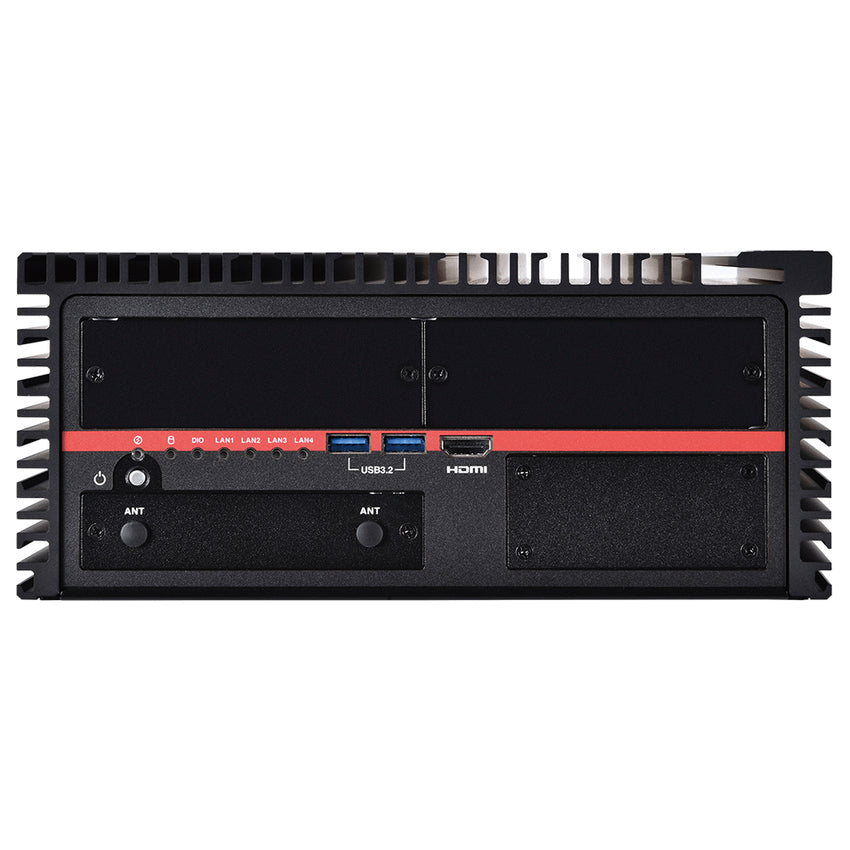

| Front Panel I/O |
1 x Power Button 7 x Status LED (Power, HDD, GPIO, LAN) 2 x USB 3.2 (Gen2x2) 1 x HDMI |
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2280/2260/2242/2230 slot (PCI-E 4.0 x4, SATA) 1 x Mini PCI-E slot (USB 2.0, PCIe x1, SATA) 1 x M.2 3052/3042/2242/2260 slot (USB 3.0, SATA, PCIe x1) |
| OS Support |
Windows 10 64-Bit Windows 11 64-Bit Linux (Support by Request) |
| Power Supply |
9-24V Terminal Block DC-IN 300W AC Adapter |
| Case Dimensions |
268 x 246 x 108mm 10.6" x 9.7" x 4.3" (in inches) |
| Mounting |
Wallmount |
| Environmental |
Operating Temperature for 35W TDP CPU: -40°C to 70°C (-40°F to 158°F) Operating Temperature for 65W TDP CPU: -40°C to 50°C (-40°F to 122°F) Non-Operating Temperature: -40°C to 85°C (-4°F to 185°F) Operating Humidity: 10% to 90%R/H (non-condensing) Non-Operating Humidity: 10% to 95% @ 85°C (non-condensing) Operating Vibration: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) Operating Shock: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Compliance |
CE / FCC Class A / LVD CoC: EN62368-1 *E13-Mark/EN50155/EN50121/EN45545-2 by Request |
| Warranty |
1-Year Manufacturer's Limited Warranty |
PRODUCT ID: MX2-10ADP-AC300
