Product ID	MWS-WRX80E-PLG
CPU	Supports AMD Ryzen Threadripper Pro Prcoessors Socket sWRX8
Chipset	AMD WRX80
Memory	8 x DDR4 DIMM slots Maximum 2048GB Capacity 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC UDIMM, RDIMM, 3DS RDIMM and LRDIMM 8 Channel Memory
Video	GPU Dependent
Storage Technology	8 x SATA 6Gb/s Ports 1 x M.2: PCI-E 4.0 x4 2 x M.2/U.2: PCI-E 4.0 x4
Connectivity	1 x Intel X550-AT2 10G Dual Port LAN WIFI 6 2x2 Wi-Fi 6 (802.11a/b/g/n/ac/ax) Supports 2.4/5GHz Frequency Bands Bluetooth 5.2
Expansion	7 x PCI-E 4.0 x16 slot Support PCIe bandwidth bifurcation for RAID on CPU function
Rear I/O	1 x Clear CMOS Button 1 x BIOS Reset Button 2 x WIFI Antenna Connectors 1 x BIOS Flashback USB 3.2 (Gen2) 8 x USB 3.2 (Gen2) Type-A 2 x RJ45 10G LAN 1 x USB 3.2 (Gen2) Type-C 1 x USB 3.2 (Gen2x2) Type-C 5 x Audio I/O 1 x SPDIF Out
Front Panel I/O	6 x Status LED 2 x USB 3.0 1 x NMI Button 1 x ID Switch 1 x System Reset 1 x Power Button

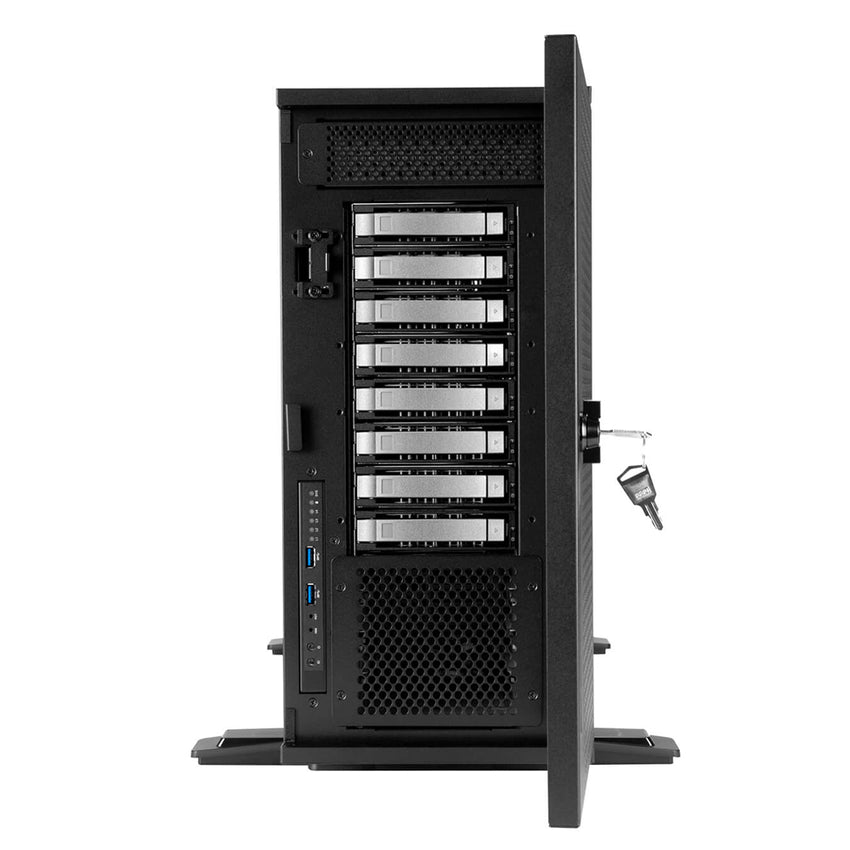

Drive Support	8 x 3.5"/2.5" Hotswap Drive Bays 1 x 3.5" or 2 x 2.5" Internal Drive Bays 3 x M.2 22110/2280/2260/2242 slot (PCI-E 4.0 x4) Note: 2 x M.2 will disable U.2 Support
Power Supply	1+1 Redundant 1600W 80+ Platinum CRPS AC Input 100-127V Max 1000W Output AC Input 200-240V Max 1600W Output
Cooling	3 x 92x25mm PWM Middle Fans 1 x 120x25mm PWM Rear Fan

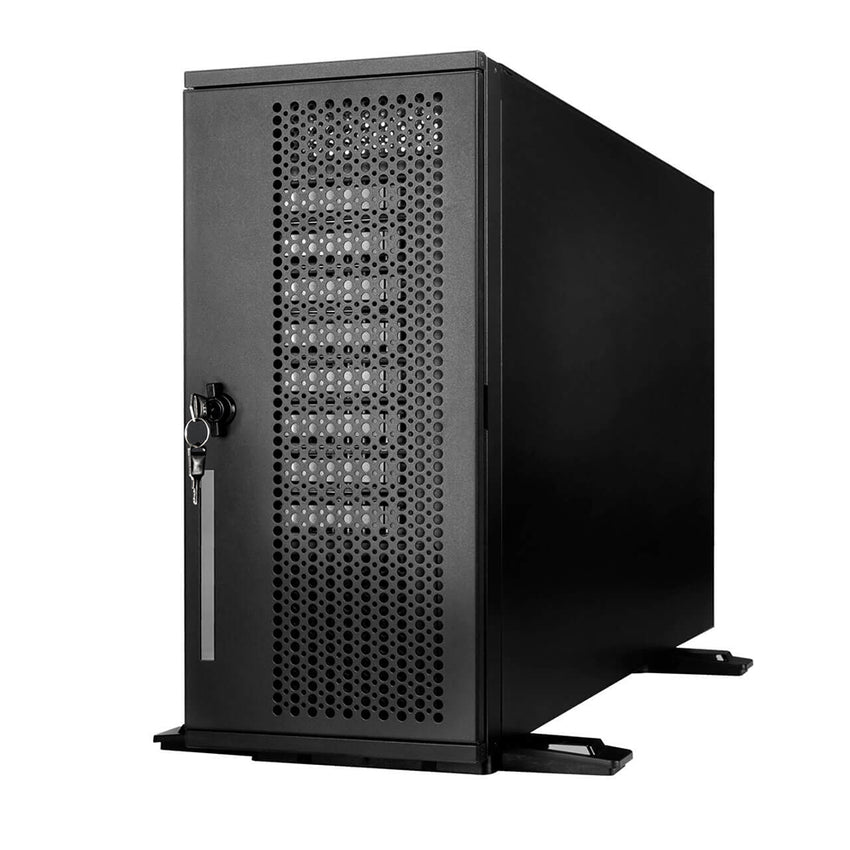

Case Dimensions	4.5U Rackmount or Tower 589.7 x 200 x 430mm 23.22" x 7.87" x 16.93" (in inches) Optional 28" Tool-less Ball-bearing Slide Rails
Warranty	1 Year Manufacturer's Limited Warranty
