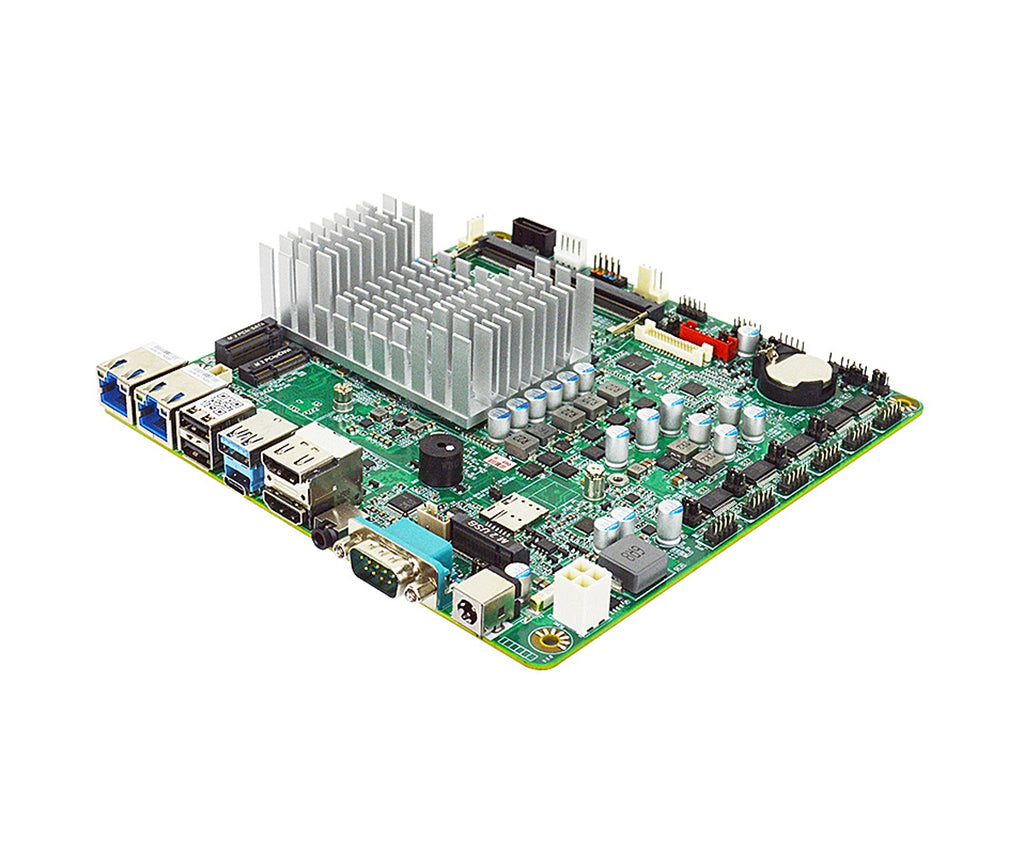

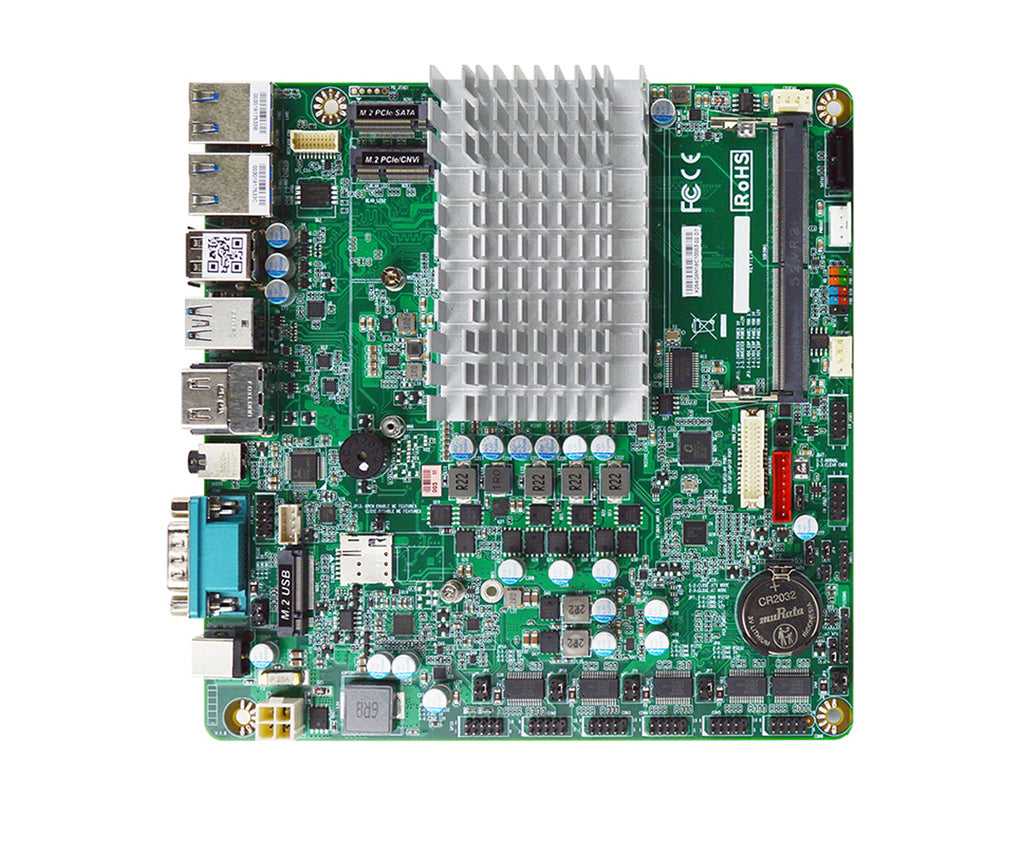

Manufacturer	Jetway
Part Number	MTX-TWL1-N1500210
Model Name	MTX-TWL1
CPU	Intel N150 Processor 4 Cores / 4 Threads 3.6 GHz 6W TDP, 6 MB Intel Smart Cache
Chipset	SoC Onboard NUVOTON TPM v2.0
Memory	1 x DDR5 SODIMM slots Maximum 32GB Capacity 4800 MT/s
Video	Intel Graphics 1 GHz 24 Execution Units DisplayPort 1.4 Max Resolution: 4096x21260@60Hz HDMI 2.0b Max Resolution: 4096x2160@60Hz LVDS/eDP Max Resolution: 1920x1080@60Hz Supports Triple Display
Audio	Realtek ALC897 HD Audio and 3W Amplifier
Storage Technology	1 x SATA Connector 1 x M.2 2242/2280 (PCIe 3.0 x2, SATA)
Connectivity	2 x Intel I226-V 2.5GbE LAN
Expansion Slots	1 x M.2 3042/3052 slot (USB3.2/2.0, B-Key) 1 x M.2 2230 slot (USB2.0/PCIe 3.0 x1/CNVi, E-Key) 1 x Nano SIM slot
Power	1 x 12-28V DC-IN Alternate 2x2 Internal Power Connector Note: No Isolation Circuitry, do not use both power connectors

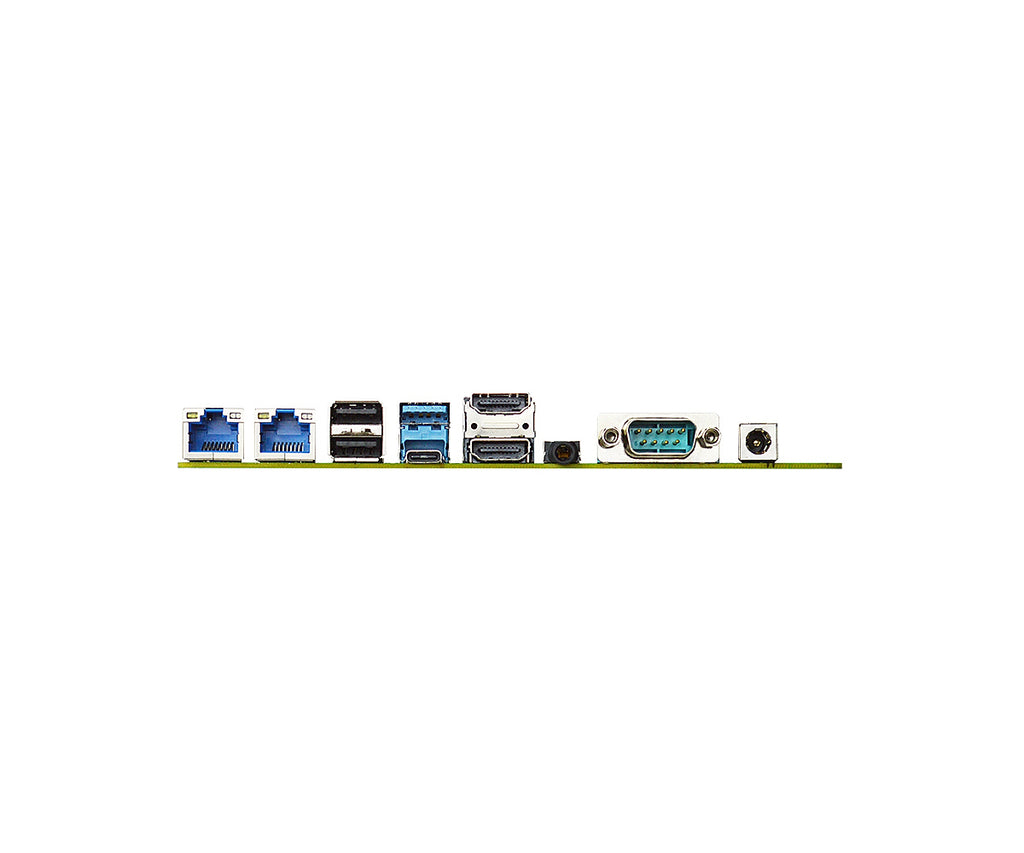

Rear I/O	2 x RJ45 2.5GbE LAN 2 x USB 2.0 1 x USB 3.2 (Gen2x1) 1 x USB 3.2 (Gen2x1) Type-C with DP 1.4 2 x HDMI 2.0b 1 x 3.5mm Audio I/O 1 x Serial Port (RS232/422/485) 1 x 12-28V DC-IN (2.5mm/5.5mm)
Onboard I/O Headers	2 x USB 2.0 headers (Supports 4 ports) 5 x Serial headers (RS232) 1 x 24-bit Dual Channel LVDS/eDP header 1 x 8-bit GPIO header 1 x AT/ATX Mode jumper 1 x 9-pin Front Audio header 1 x PS/2 Keyboard and Mouse header 1 x 5-pin SMBUS header 2 x Fan header
OS Support	Windows 10, Windows 10 IoT Enterprise WIndows 11, Windows 11 IoT Enterprise CentOS 9, Debian 11.9, Fedora 37-1.7, FreeBSD 13.1 OpenBSD 7.4, OpenSUSE 15.5, OPNSense 23.7, pfSense 2.6.0 RedHat Enterprise 8.5, TrueNAS 13.0-U6.1, Ubuntu 22.04, DynFi Firewall 4.03
Form Factor	Mini ITX  6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: -20°C to 75°C (-4°F to 167°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F) Operating Humidity: 10% to 90% (non condensing)
Warranty	2-Year Manufacturer's Limited Warranty
