Product ID	MPE-PH13FEI
CPU	Supports Intel 9th Gen Core Processors Supports up to 65W TDP
Chipset	Intel Q370
Memory	2 x DDR4-2666MHz Slots Maximum 32GB Capacity Non-ECC, Unbuffered
Video	Intel UHD Graphics 630 350 MHz - 1.10 GHz HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 4096x2304@60Hz
Audio	Realtek ALC662 HD Audio
Storage Technology	4 x SATA3 6Gb/s Connectors 1 x M.2 2260/2280 M Key slot (PCIe or SATA)
Connectivity	1 x Intel i219-LM GbE LAN 1 x Intel i211-AT GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot (inaccessible) 1 x M.2 2230 E Key slot (PCIe, USB 2.0)

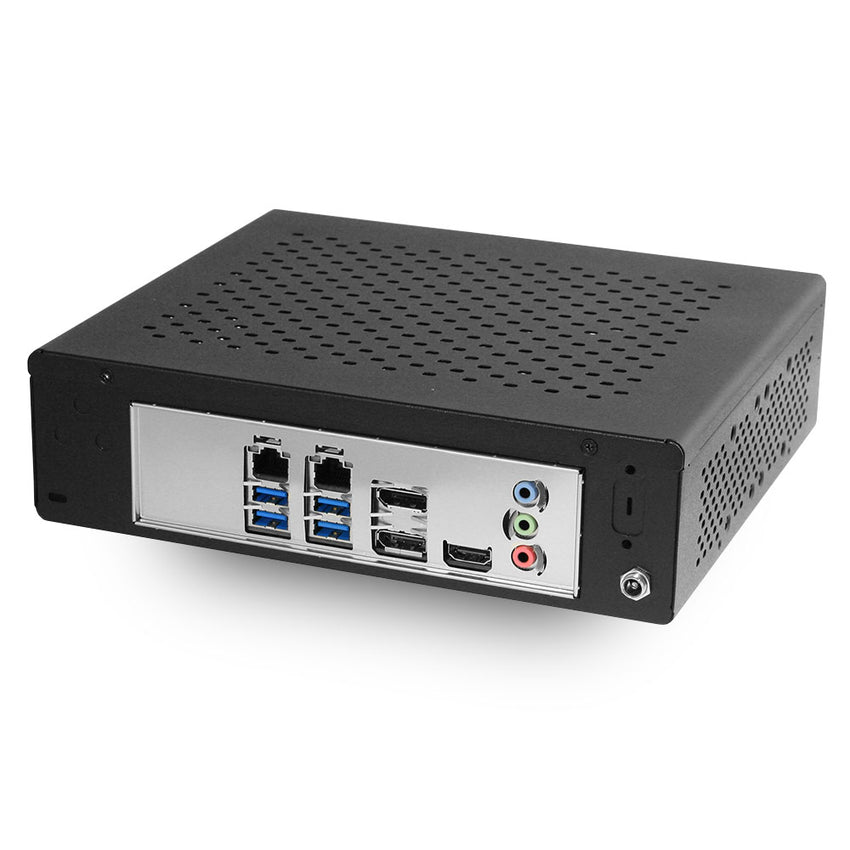

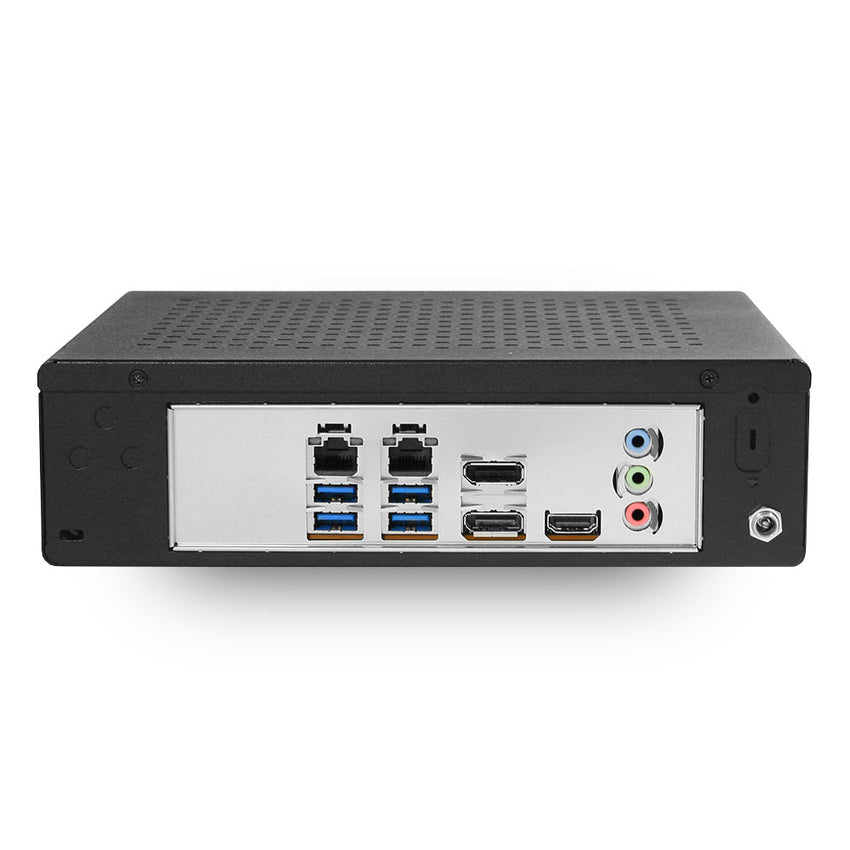

Rear Panel I/O	2 x RJ45 GbE LAN 4 x USB 3.1 (Gen2) 2 x DisplayPort 1 x HDMI 3 x Audio I/O 1 x 12V DC-IN
Front Panel I/O	2 x USB 3.0 1 x Power Button w/ LED
Drive Support	2 x 2.5" HDD/SSD 1 x M.2 slot (2260/2280, PCIe or SATA)
Fan Support	Supports 2 x 40x10mm Case Fans
Power Supply	12V DC-IN 120W 12V AC-DC Adapter
Case Dimensions	228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5" (in inches)
Mounting	Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options)
Warranty	1-Year Warranty on Parts and Labor
