| Manufacturer |
Mitac |
| Product ID |
MP2-10MTS-125U-AC |
| Model Name |
MP2-10MTS |
| CPU |
Intel Core Ultra 5 125U Processor
2 P-Cores / 8 E-Cores / 2 Low Power E-Cores / 14 Threads
700 MHz - 4.3 GHz
12W - 57W TDP, 12 MB Intel Smart Cache |
| Chipset |
SoC
Onboard Nuvoton NPCT760AABYX TPM2.0 |
| Memory |
1 x DDR5 SODIMM slot
Maximum 32GB Capacity
4800 MHz
|
| Video |
Intel Xe Graphics
1.85 GHz
4 Xe-Cores
HDMI 1.4 Max Resolution: 4096x2160@24Hz
DisplayPort 1.2 Max Resolution: 7680x4320@60Hz
Supports Triple Displays |
| Audio |
Realtek ALC888S
|
| Storage Technology |
1 x SATA Connector
1 x M.2 2280 slot (NVMe/SATA)
1 x M.2 2242 slot (SATA)
|
| Connectivity |
4 x Intel I226-LM 2.5GbE LAN (Optional PoE Module)
2 x Optional Intel I210-IT GbE LAN
|
| Expansion Slots |
1 x M.2 2242/3042/3052 slot (B Key, USB 2.0/PCIe x1/SATA)
1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)
|

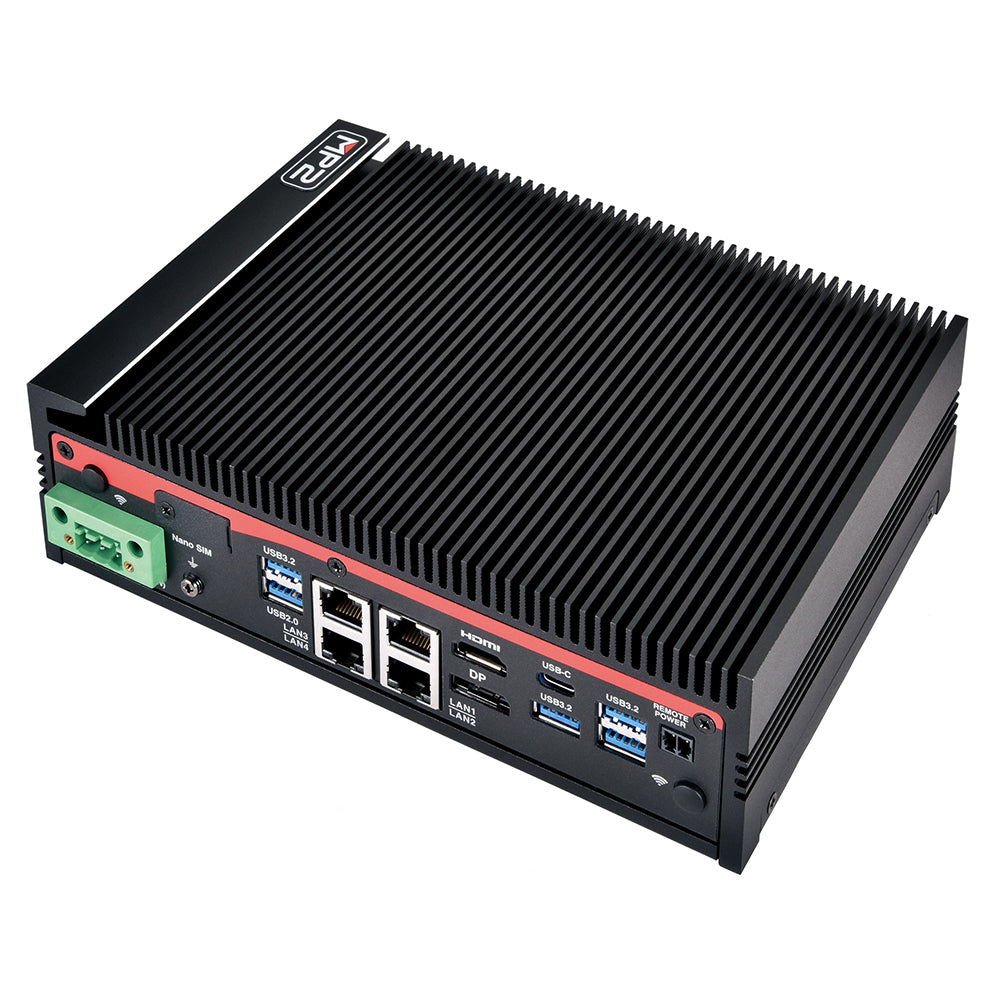

| Rear Panel I/O |
1 x USB 3.2 (Gen1) Type-C (Supports DP alt Mode)
4 x RJ45 GbE LAN
1 x Nano SIM Slot with Cover
1 x USB 2.0 port
1 x HDMI 1.4
1 x DisplayPort 1.2
4 x USB 3.2 (Gen2)
1 x 3-Pin 8-26V Terminal Block Power Input
1 x 2-Pin Terminal Block Remote Power On/Off
2 x Antenna Cutout
|
| Front Panel I/O |
2 x Antenna Cutouts
3 x RS232
1 x 8-Bit GPIO
2 x USB 2.0
1 x RS232/422/485
1 x Audio Line Out
1 x Status LED (HDD)
1 x Power Button with LED
|
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280 slot (M Key, NVMe/SATA)
1 x M.2 2242 slot (B Key, SATA)
|
| OS Support |
Windows 10
Windows 11
Linux (Support by Request)
|
| Power Supply |
8-26V DC-IN 3-Pin Terminal Block
72W AC-DC Adapter
|
| Case Dimensions |
210 x 150 x 63mm
8.3" x 5.9" x 2.5" (in inches)
|
| Mounting |
Wallmount / Side Mount
75x75mm VESA and DIN Rail Mount Combot Kit (Optional)
|
| Environmental |
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Non-operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 95% (non-condensing)
Operating Vibration: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
Operating Shock: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Compliance |
CE / FCC Class A
|
| Warranty |
1-Year Warranty on Parts and Labor |
