Manufacturer	Jetway
Part Number	MM02-10
CPU	Supports Intel 10th Gen Core Processors, Comet Lake Socket LGA 1200 Supports up to 95W TDP
Chipset	Intel Q470E
Memory	4 x DDR4 DIMM slots Supports up to 128GB Total Core i9/i7 supports up to 2933 MHz Core i5/i3 supports up to 2666 MHz Pentium/Celeron supports up to 2400 MHz Non-ECC, Unregistered Memory Only
Video	Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz
Audio	Intel Display Audio (via HDMI)
Storage Technology	6 x SATA3 6Gb's ports Supports RAID 0/1/5/10/JBOD 1 x M.2 22110/2280/2260/2242 slot (PCI-E 3.0 x4) 1 x M.2 2280/2260 slot (PCI-E 3.0 x2)
Connectivity	2 x Intel I225-LM PCIe 2.5 GbE 1 x Intel I219-LM PHY Gigabit LAN (iAMT 12.0) 1 x Intel I210-AT PCIe Gigabit LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot 1 x PCI-E 3.0 x8 slot 1 x PCI-E 3.0 x4 slot 1 x PCi-E 3.0 x1 slot 1 x M.2 2230 slot (E-Key, USB and PCie CNVi WIFI)
Power	24-pin ATX Power Connector 8-pin 12V ATX Power Connector for CPU

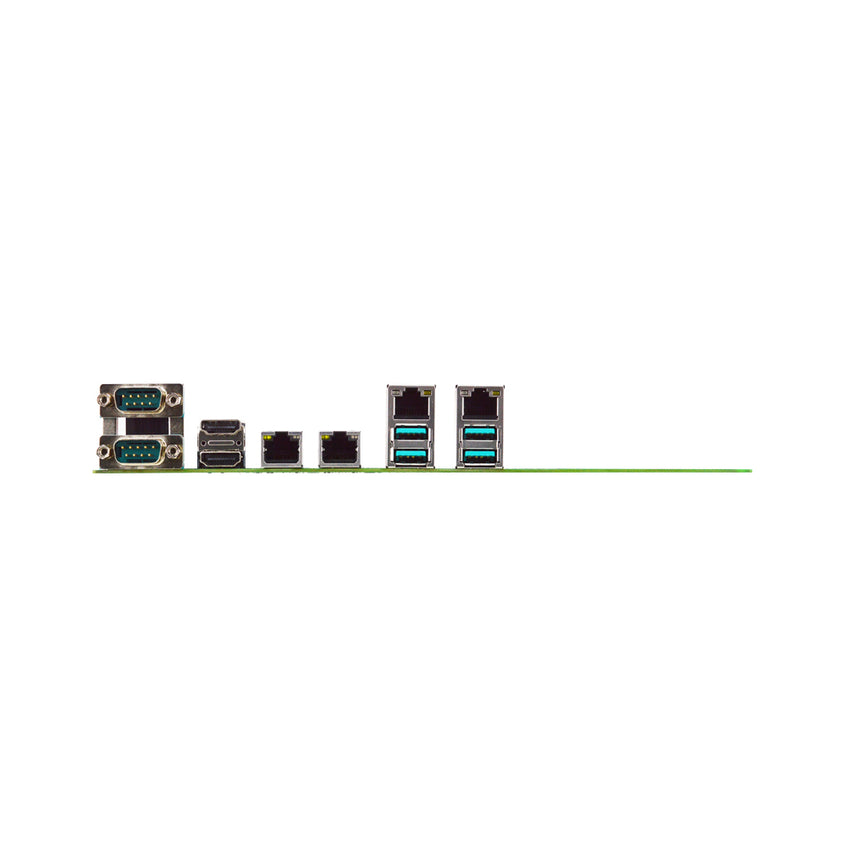

Rear I/O	2 x Serial Ports (RS232/422/485) 2 x HDMI 2 x RJ45 2.5GbE LAN 2 x RJ45 GbE LAN 4 x USB 3.2 (Gen2)
Onboard I/O Headers	1 x USB 3.2 Gen2 header (Up to 2 ports) 2 x USB 2.0 headers (up to 4 ports) 4 x Serial headers (RS232) 1 x 8-bit GPIO header 1 x Chassis Intrusion header 1 x PS2 Keyboard/Mouse Combo header 1 x AT/ATX Mode jumper 1 x 5-pin SMBUS header 6 x 3-pin SYS Fan header 1 x 4-pin CPU Fan header
Form Factor	Micro ATX 244 x 244mm 9.6" x 9.6" (in inches)
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F) Humidity: 10% to 90% RH @ 40°C (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
