Manufacturer	GigaIPC

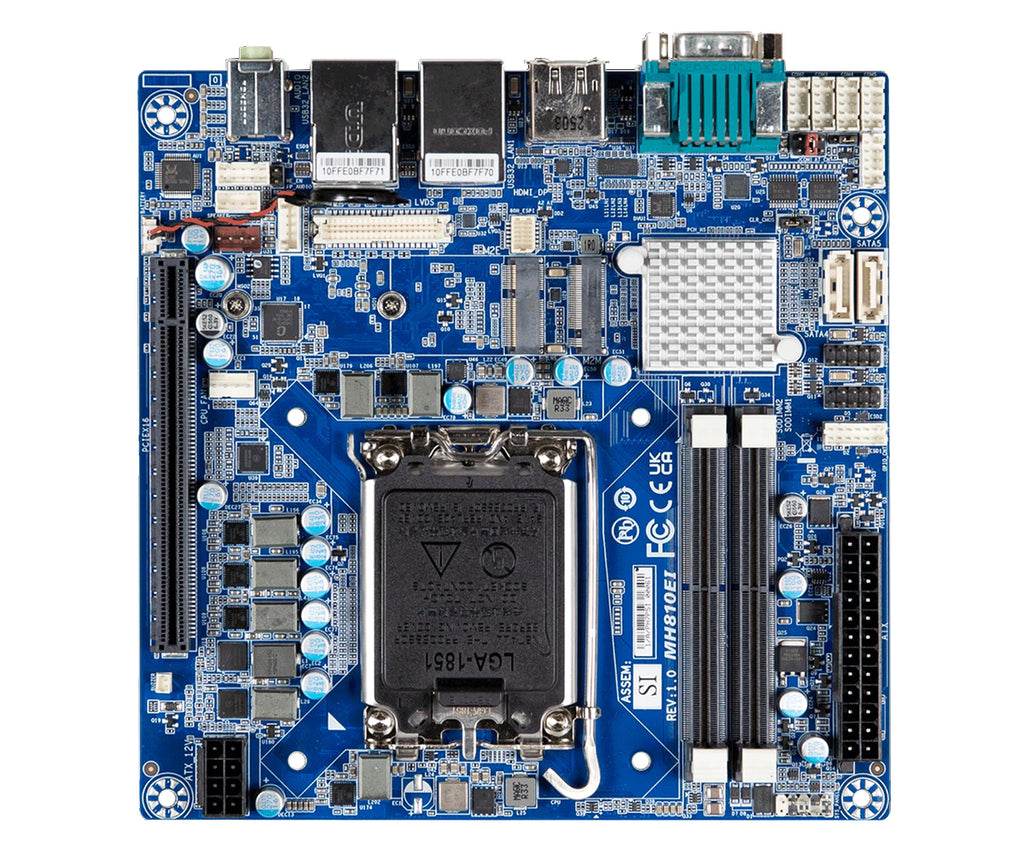

Part Number	mITX-H810E
CPU	Supports Intel 15th Gen Core Ultra Series 2 Processors, Arrow Lake-S Socket LGA 1851 Maximum 65W TDP
Chipset	Intel H810 Onboard TPM 2.0 Infineon SLB9670VQ2.0
Memory	2 x DDR5 SODIMM/CSODIMM slots Maximum 128GB Capacity 5600/6400 MHz Dual Channel
Video	Intel UHD Graphics (CPU Dependent) HDMI Max Resolution: 7680x4320@60Hz DisplayPort Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1080@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Triple Displays
Audio	Realtek ALC897
Storage Technology	2 x SATA Connectors 1 x M.2 2280 slot (PCI-E 4.0 x4, SATA)
Connectivity	1 x Intel I226V 2.5GbE LAN 1 x Intel I219V GbE LAN
Expansion Slots	1 x PCI-E 4.0 x16 slot 1 x M.2 2230 slot (E Key)
Power	1 x 24-Pin ATX Power Connector 1 x 12V 8-Pin ATX Power Connector for CPU

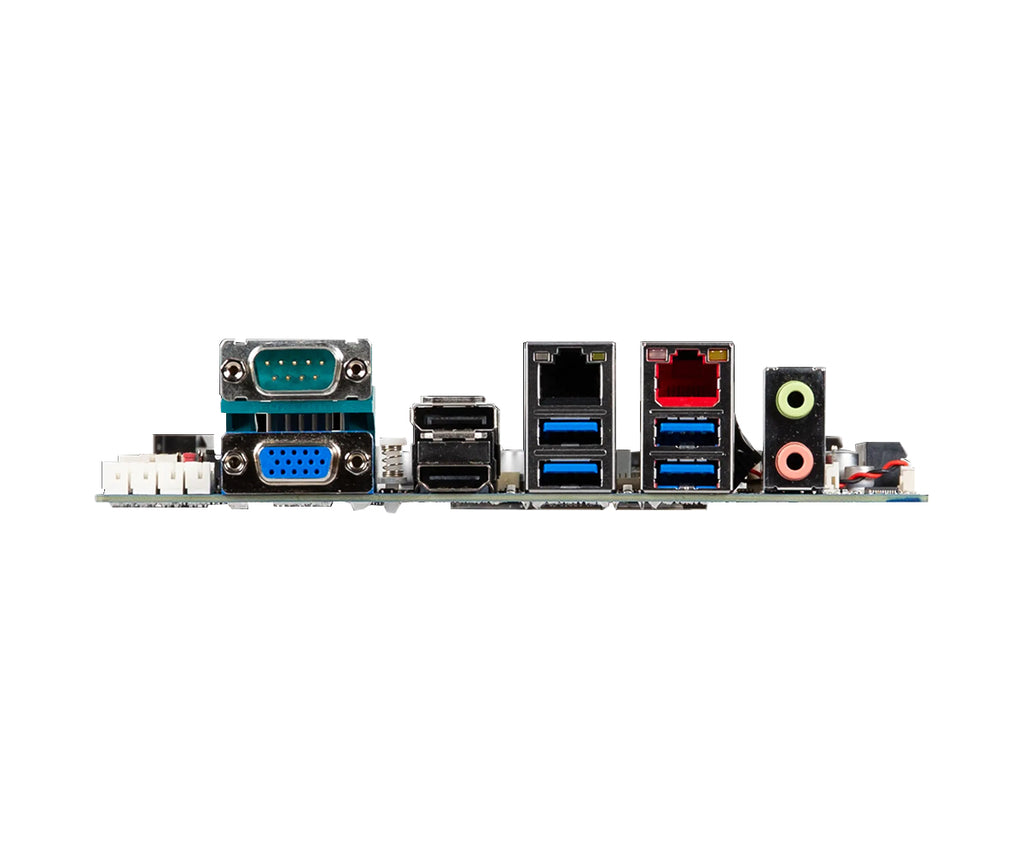

Rear I/O	1 x COM (RS232/422/485, RI/5V/12V) 1 x VGA 1 x DisplayPort 1 x HDMI 1 x RJ45 GbE LAN 4 x USB 3.2 (Gen2x1) 1 x RJ45 2.5GbE LAN 2 x Audio I/O
Onboard I/O Headers	1 x CPU Fan header 1 x System Fan header 1 x Front Panel header 1 x Front Panel Audio header 1 x 2W Speaker Out header 4 x USB 2.0 headers 1 x COM header (RS232/422/485) 1 x COM header (RS232) 1 x 8-bit GPIO and SMBus header 1 x Backlight Control header 1 x Clear CMOS jumper 1 x Buzzer 1 x AT/ATX Mode Select jumper
OS Support	Windows 11 Windows 10
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 90% (non condensing) Storage Humidity: 0% to 90% (non condensing)
Warranty	2-Year Manufacturer's Limited Warranty
