Manufacturer	Jetway

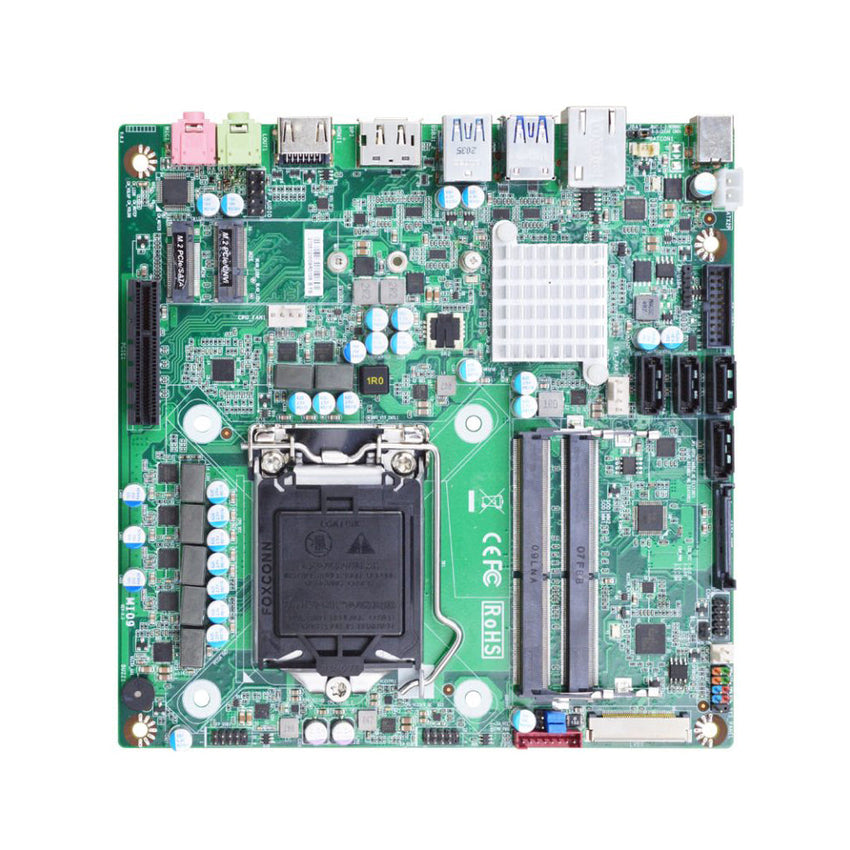

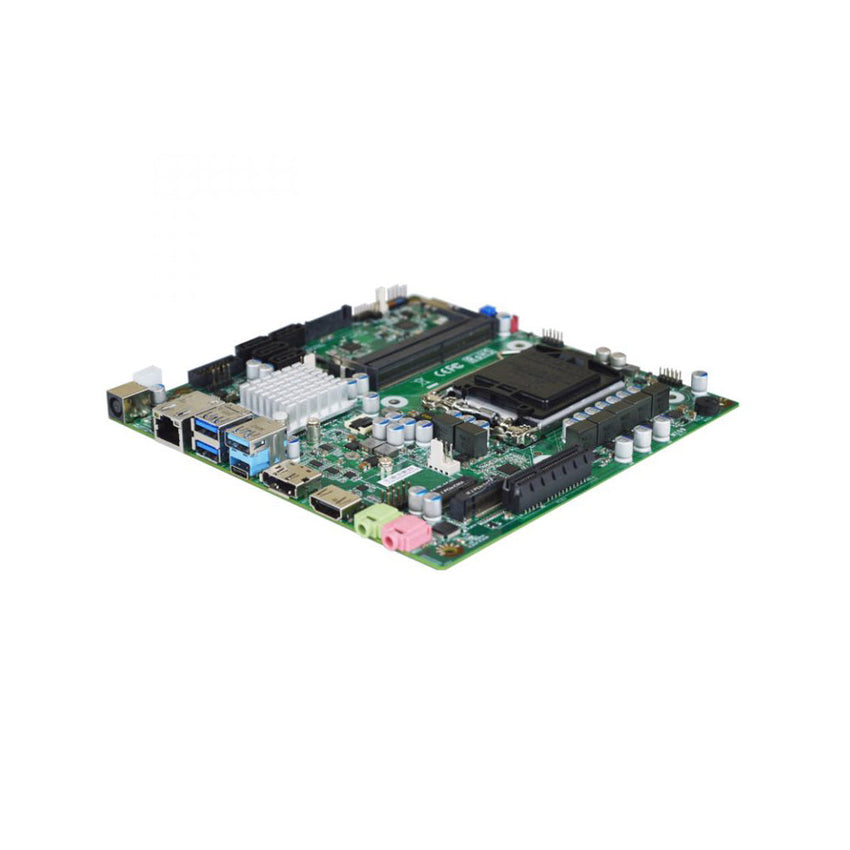

Part Number	MI09-32
CPU	Supports Intel 11th/10th Gen Core Processors Max TDP 65W LGA1200
Chipset	Intel H470 Onboard Nuvoton TPM 2.0
Memory	2 x DDR4 SODIMM Slots Maximum 64GB Capacity Core i9/i7 Supports up to 2933 Mhz Core i5/i3/Pentium/Celeron Supports up to 2666MHz Dual Channel Supports non-ECC Unbuffered memory
Video	Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Dual Displays
Audio	C-Media HS-100B USB Audio
Storage Technology	4 x SATA3 6Gb/s Connectors Supports RAID 0/1/5/10 1 x M.2 2280/2260/2242 slot (SATA/PCI-E 3.0 x4)
Connectivity	1 x Intel I219-V PHY GbE LAN
Expansion Slots	1 x PCI-E 3.0 x4 slot 1 x M.2 2230 slot (E-Key, CNVi)
Power	1 x 12-19V DC-IN (5.1 ID/7.4mm OD) Alternative 19V 2-Pin power connector (Molex 557-02R) Note: No isolation circuitry, use only one power source

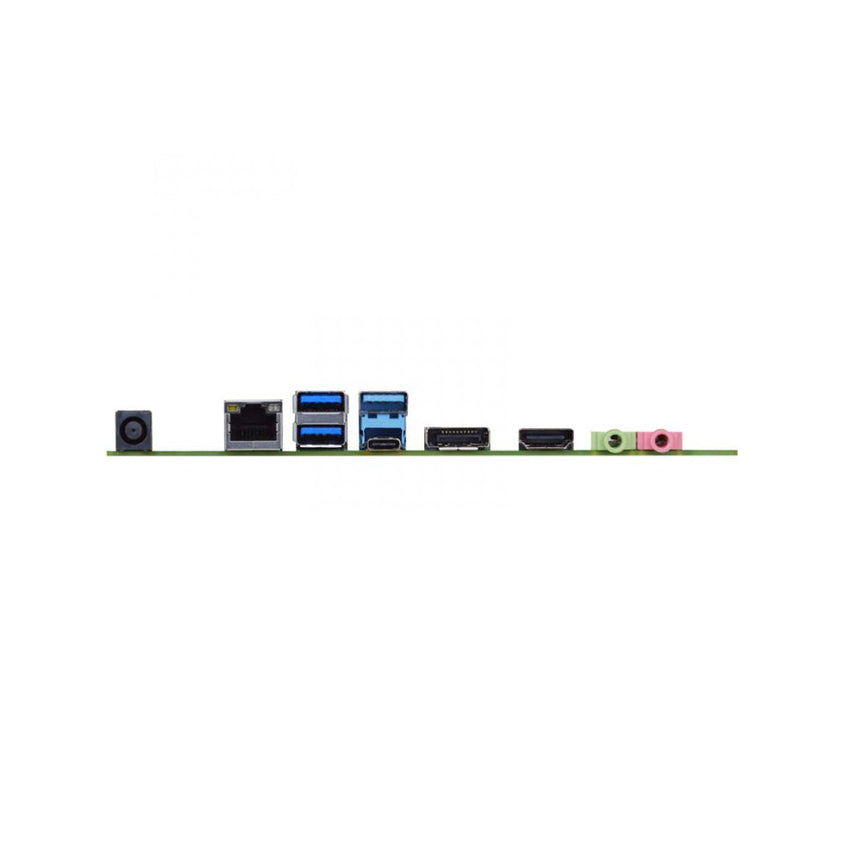

Rear I/O	1 x 19V DC-IN (5.1 ID/7.4mm OD) 1 x RJ45 3 x USB 3.2 (Gen2) Type-A 1 x USB 3.2 (Gen1) Type-C 1 x DisplayPort 1 x HDMI 2 x Audio I/O
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports up to 2 Ports) 3 x USB 2.0 headers (Supports up to 5 Ports) 1 x Serial header (RS232/422/485) 1 x 24-bits Dual Channel LVDS Connector/Inverter 1 x AT/ATX Mode jumper 1 x 9-Pin Front Audio header 2 x 4-Pin Fan header 1 x 2-Pin Alternate Power-In Connector
Form Factor	Thin Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches)
Compliance	CE, FCC, LVD, RoHS, REACH
Environmental	Operating Temperature: 0°C - 60°C (32°F - 140°F) Storage Temperature: -20°C - 85°C (-4°F - 185°F) Humidity: 10% to 90% RH (Non-condensing)
Warranty	2-Year Manufacturer's Limited Warranty
