Product ID | MES-N100IEMA |
CPU | Intel N100 Processor 4 Cores / 4 Threads 3.40 GHz 6W TDP, 6 MB Intel Smart Cache |
Chipset | SoC |
Memory | 1 x DDR4 DIMM slot Maximum 16GB Capacity 3200MHz Supports non-ECC, unbuffered memory |
Video | Intel UHD Graphics 750 MHz 24 Execution Units HDMI Max Resolution: 3840x2160@60Hz VGA Max Resolution: 1920x1080@60Hz |
Audio | Realtek ALC 897 HD Audio Codec |
Storage Technology | 2 x SATA3 6Gb/s Connector (shared with M.2) 1 x M.2 2280 slot (PCI-E 3.0 x1/SATA) |
Connectivity | 2 x Realtek 8111H GbE LAN |
Expansion Slots | 1 x M.2 2230 slot (CNVi, E-Key) |

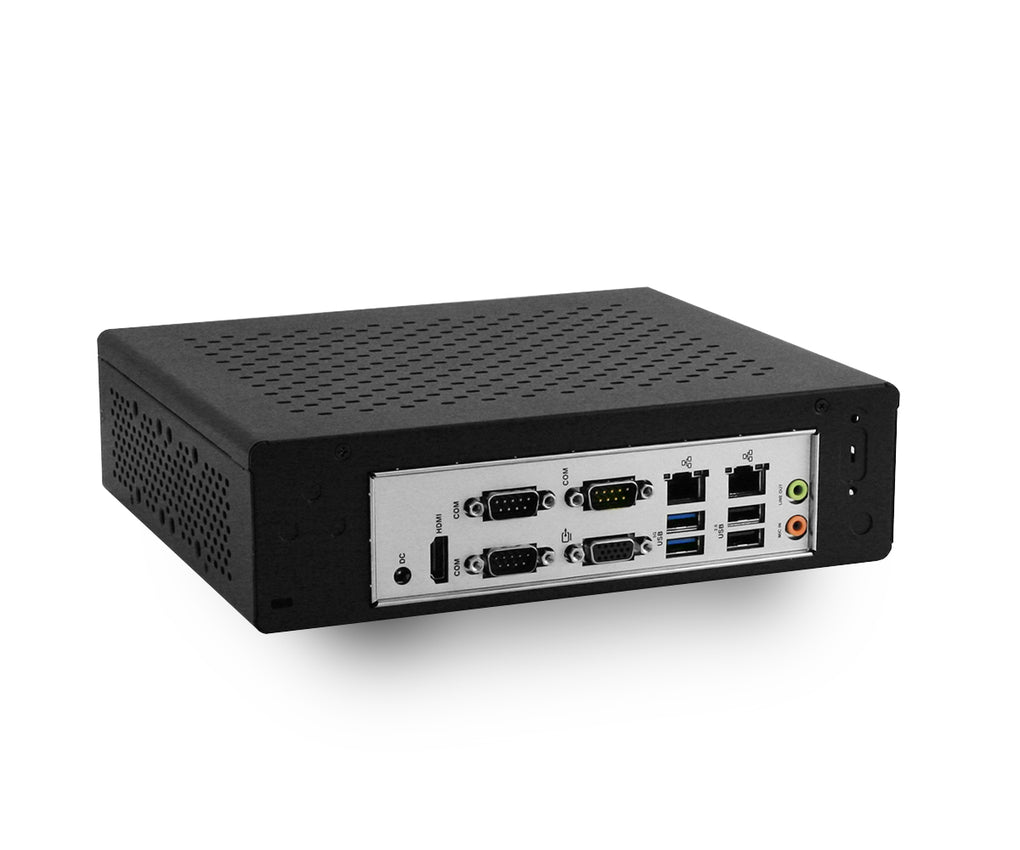

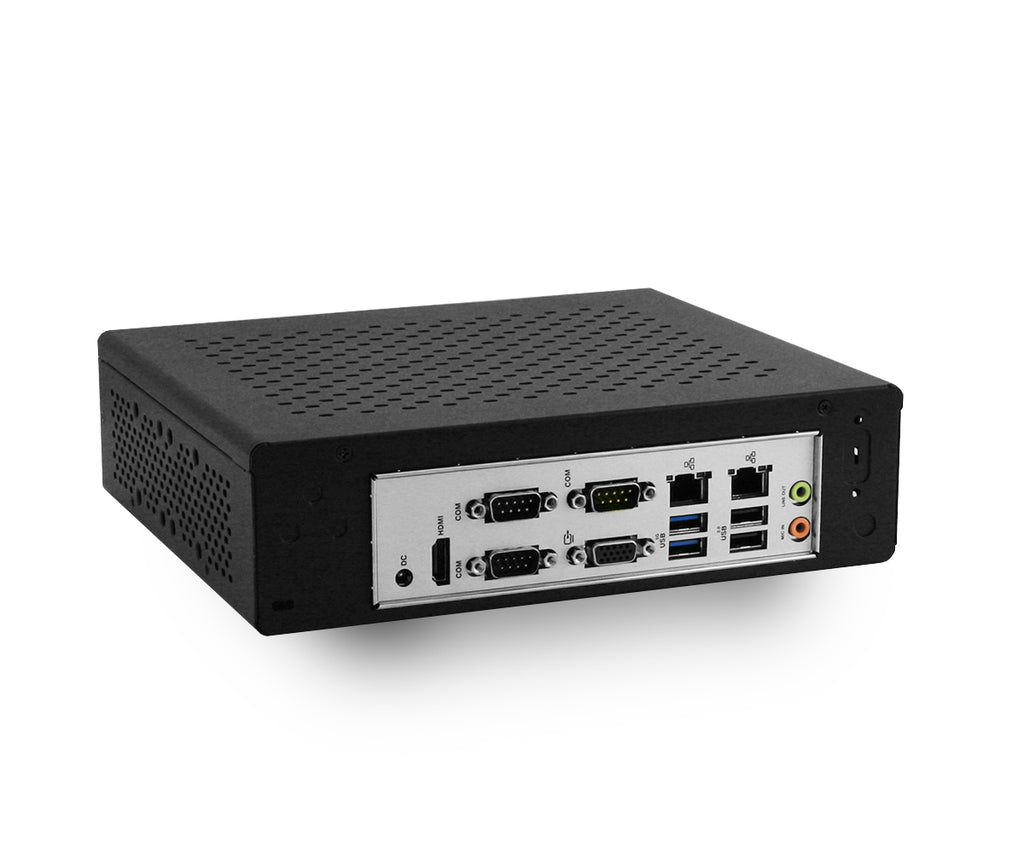

Rear Panel I/O |
1 x 12V DC-IN 1 x HDMI 2 x COM (RS232) 1 x COM (RS232/422/485) 1 x VGA 2 x RJ45 GbE LAN 2 x USB 3.0 2 x USB 2.0 2 x Audio I/O |
Front Panel I/O | 2 x USB 3.0 1 x Power Button with LED |
Drive Support | 2 x 2.5" SATA Drive Bays 1 x M.2 2280 slot (PCI-E 3.0 x1/SATA) Note: SATA Shared with M.2 |
OS Support | Windows 10 64-bit Windows 11 64-bit |
Power Supply | 12V DC-IN 60W 12V AC/DC Adapter |
Case Dimensions | 228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5" (in inches) |
Cooling | Supports 2 x 40x10mm Case Fans |
Mounting | Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options) |
Warranty | 1-Year Warranty on Parts and Labor |
