Product ID	MES-MTXTWL1N150
Motherboard	Jetway MTX-TWL1-N1500210
CPU	Intel® Processor N150 (Twin Lake) 4 Cores / 4 Threads Up to 3.60 GHz 6W TDP, 6MB Cache 10-Year Embedded Lifecycle
Chipset	SoC
Security	TPM 2.0 (dTPM, onboard)
Memory	1 x DDR5 SO-DIMM Socket Up to 32GB Capacity DDR5 4800 MT/s Non-ECC, Unbuffered
Video	Intel® UHD Graphics 1 x Type-C DP Alt Mode (4K @ 60Hz) 2 x HDMI 2.0 (4K @ 60Hz) 1 x LVDS / eDP (1920x1080 @ 60Hz) Supports 3 Independent Displays
Audio	Realtek Audio Codec 1 x Combo Audio Jack (Line-Out / Mic-In) 3W Amplifier
Storage Technology	1 x SATA III 6Gb/s 1 x M.2 2242/2280 M-Key (PCIe 3.0 x2 / SATA, NVMe)
Connectivity	2 x 2.5GbE LAN (Intel I226-V)
Expansion Slots	1 x M.2 2230 E-Key (PCIe 3.0 x1 / USB 2.0, CNVi) 1 x M.2 3042/3052 B-Key (USB 3.2 / USB 2.0, 4G/5G Module) 1 x Nano SIM Card Slot

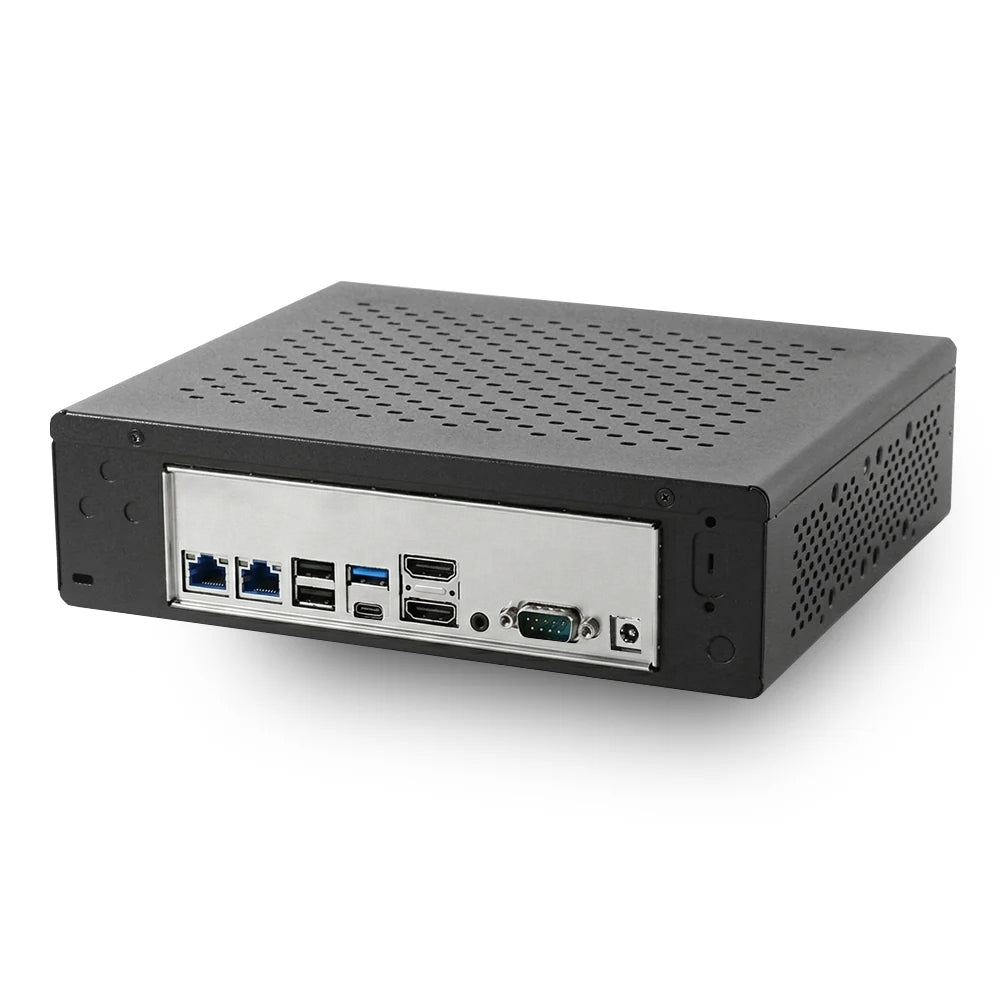

Rear Panel I/O	1 x DC Jack (12~28V) 2 x 2.5GbE RJ45 2 x HDMI 2.0 1 x USB Type-C (USB 3.2 Gen 2 + DP Alt Mode) 1 x USB 3.2 Gen 2 Type-A 2 x USB 2.0 1 x RS-232/422/485 COM (DB9) 1 x Combo Audio Jack 1 x PS/2
Front Panel I/O	1 x Power Button with LED 2 x USB 2.0
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2 2242/2280 M-Key (PCIe 3.0 x2 / SATA, NVMe)
OS Support	Windows 10 (64-bit) Windows 11 (64-bit) Linux
Power Supply	DC-IN 12V ~ 28V Wide Voltage Input 65W 19V AC/DC Adapter
Case Dimensions	228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5" (in inches)
Cooling	Supports 2 x 40mm Case Fans
Mounting	Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options)
Warranty	1-Year Warranty on Parts and Labor
