| Product ID | MES-H310A |
| CPU | Supports Intel 9th Gen Core Processors Supports up to 65W TDP |
| Chipset | Intel H310 Express Chipset |
| Memory | 2 x DDR4 SODIMM Slots Maximum 32GB Capacity 2666/2400 MHz Dual Channel |
| Video | Intel UDH Graphics 630 350 Mhz - 1.10 GHz HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1200@60Hz eDP Max Resolution: 3840x2160@60Hz LVDS Max Resolution: 1920x1080@60Hz |
| Audio | Realtek ALC269 HD Audio |
| Storage Technology | 2 x SATA3 6Gb/s Ports with one SATADOM Support 1 x M.2 SATA slot (2242/2280) |
| Connectivity | 1 x Intel i219V GbE LAN 1 x Realtek RTL8111HS GbE LAN |
| Expansion Slots | 1 x PCI-E 3.0 x16 slot (inaccessible) 1 x M.2 E Key slot (2230) |

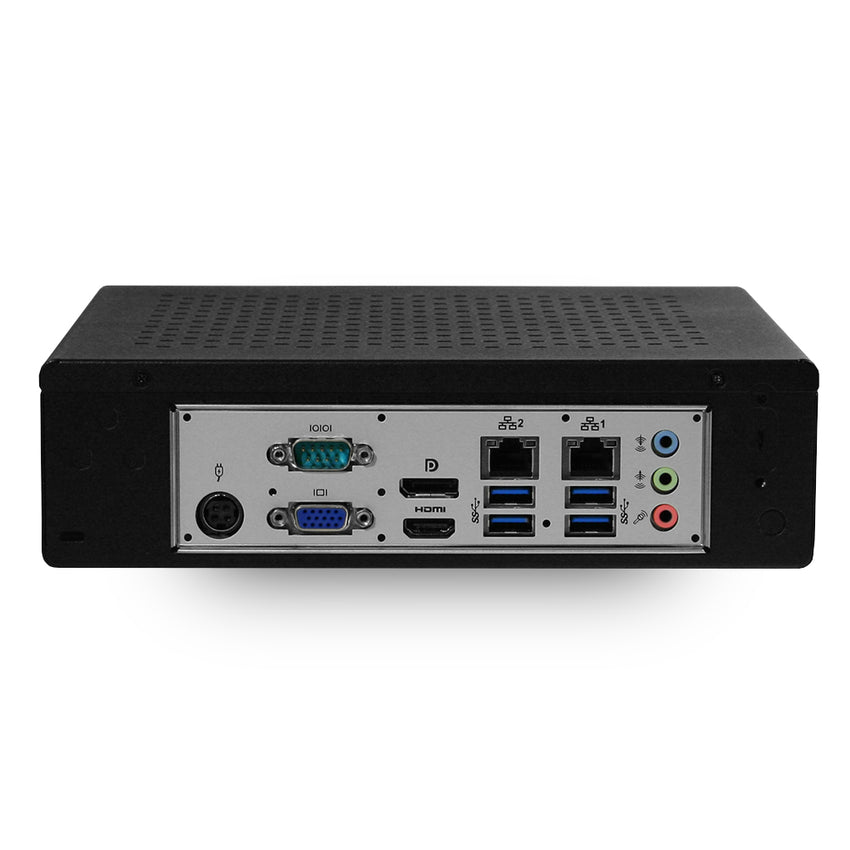

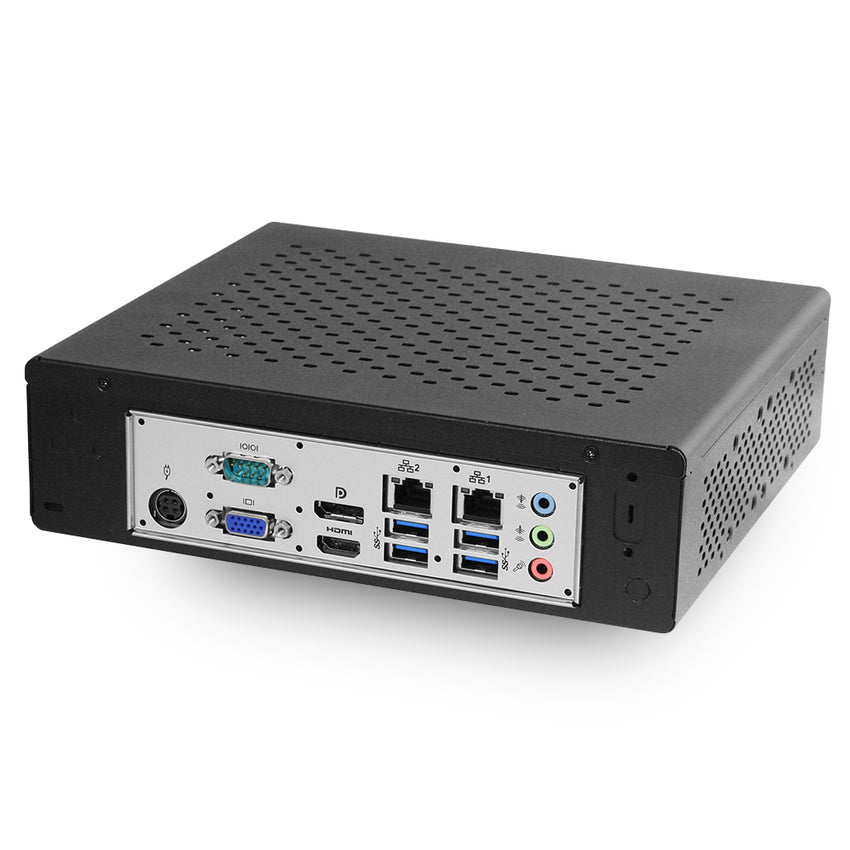

| Rear Panel I/O | 1 x 4-Pin DC-IN (+12/+19/+24Vdc) 1 x Serial COM (RS-232/422 /485 and RI/5V/12V) 1 x VGA 1 x DisplayPort 1 x HDMI 2 x RJ45 GbE LAN 4 x USB 3.0 3 x Audio I/O Optional 1 x COM header (RS-232/422/485 and RI/5V/12V) |

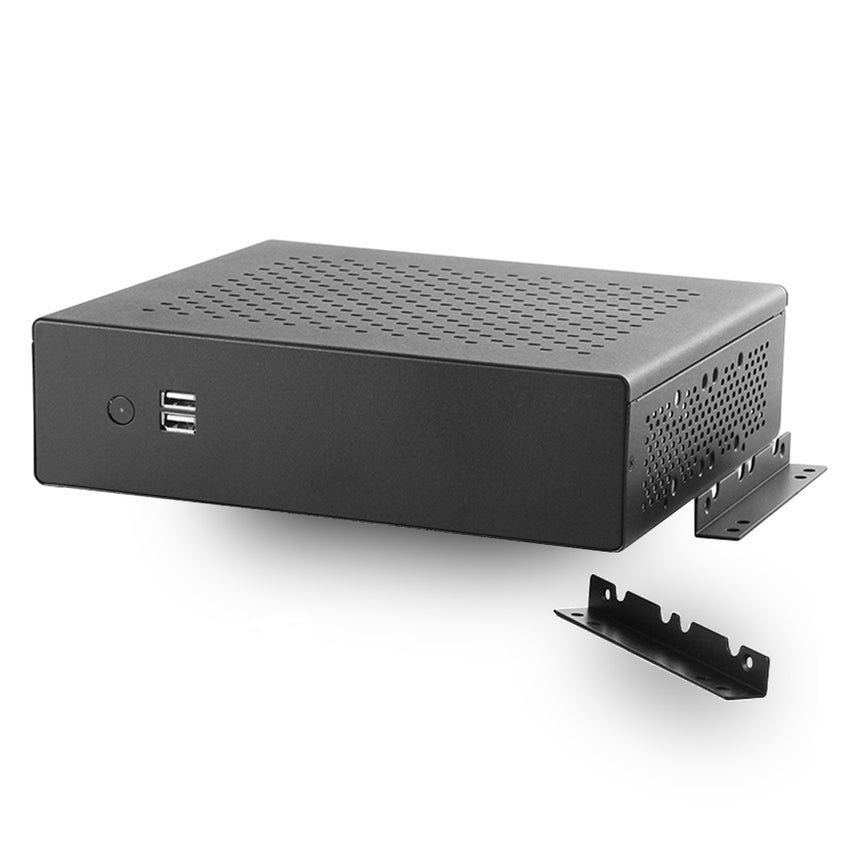

| Front Panel I/O | 2 x USB 2.0 1 x Power Button w/ LED |
| Drive Support | 2 x 2.5" HDD/SSD 1 x M.2 SATA slot (2242/2280) |
| Fan Support | Supports 2 x 40x10mm Case Fans |
| Power Supply | 4-Pin 12V AC DC Adapter |
| Case Dimensions | 228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5" (in inches) |
| Mounting | Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: MES-H310A
