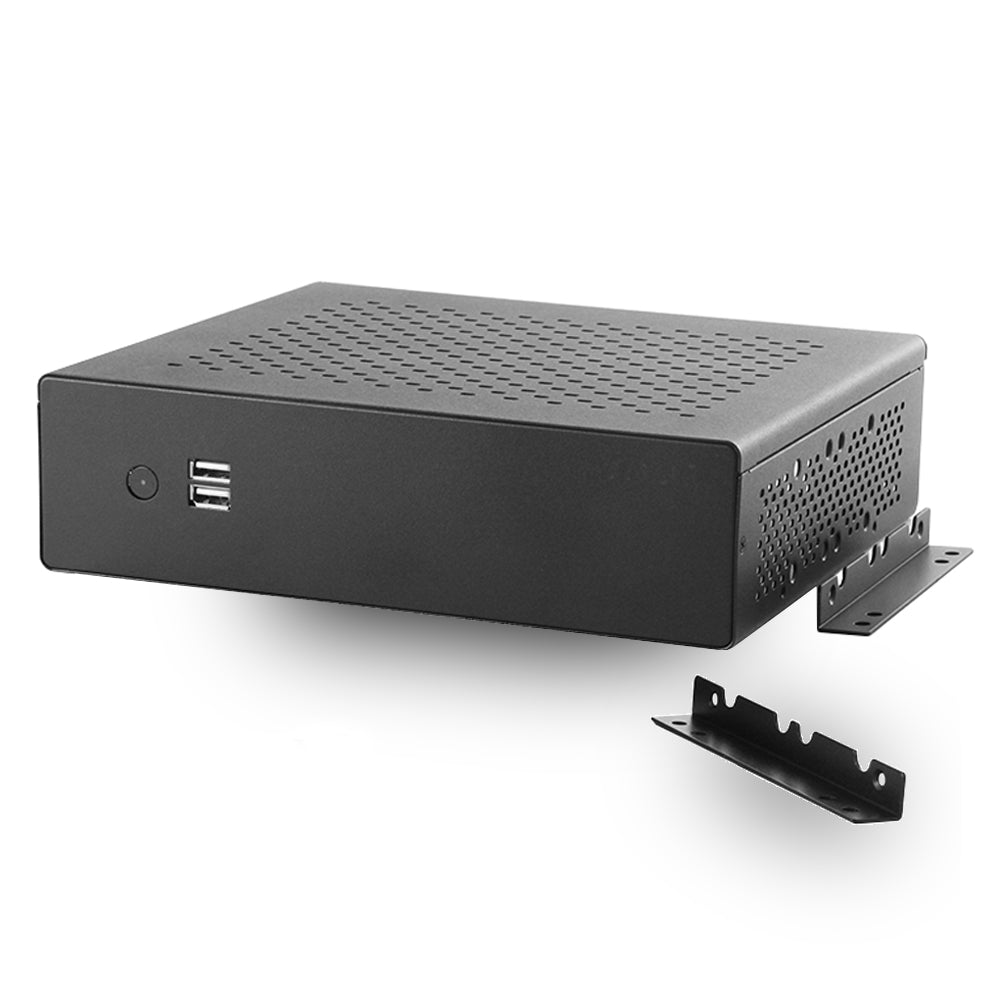

Product ID	MES-CF13
CPU	Intel N97 Processor 4 Cores 3.6 GHz 12W TDP, 6 MB Intel Smart Cache
Chipset	SoC Onboard Infineon SLB 9672VU2.0 TPM 2.0
Memory	1 x DDR5 SODIMM slot Maximum 16GB Capacity 4800 MHz
Video	Intel UHD Graphics (CPU Dependent) HDMI Max Resolution: 3840x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 1920x1080@60Hz Supports 3 Independant Displays
Audio	Realtek ALC897 HD Audio Codec (Co-lay ALC888S)
Storage Technology	1 x SATA3 Connector 1 x M.2 2242/3042/2280 slot (SATA/PCIe x1, USB 3.2x1, USB 2.0)
Connectivity	2 x Intel I226-V 2.5GbE LAN
Expansion Slots	1 x M.2 2242/3042/2280 slot (SATA/PCIe x1, USB 3.2x1, USB 2.0) 1 x Nano SIM holder 1 x M.2 2230 slot (PCIe x1, USB 2.0)
Rear Panel I/O	1 x 12V DC-IN 1 x USB 2.0 1 x USB 3.2 (Gen1) 2 x USB 3.2 (Gen2) 2 x RJ45 2.5GbE LAN 1 x DisplayPort 1 x HDMI 1 x Audio Out
Front Panel I/O	2 x USB 2.0 1 x Power Button with LED
Drive Support	1 x 2.5" SATA Drive Bays 1 x M.2 2242/3042/2280 slot (SATA/PCIe x1, USB 3.2x1, USB 2.0)
OS Support	Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise LTSC (64-bit, 23H2, pre-scan) Linux (Support by request)
Power Supply	12V DC-IN Barrel Connector 12V 60W AC-DC Adapter
Case Dimensions	228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5" (in inches)
Cooling	Includes 1 x 40x10mm Case Fans Supports 2 x 40x10mm Case Fans
Mounting	Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options)
Warranty	1-Year Warranty on Parts and Labor
