MITXPC Intel Atom C2758 4 x LAN IPMI Fanless Mini Network Server
Model Number	MES-A1SRI2758F
CPU	Intel Atom C2758 2.4GHz 8 Cores / 8 Threads 20W TDP, 4MB Cache, 64-bit
Chipset	SoC
Memory	4 x 204-pin DDR3 SODIMM Maximum 64GB capacity Supports ECC Un-buffered Memory 1333MHz Minimum 1.5V or 1.35V
Video	ASPEED AST2400
Storage	2 x SATA 6.0Gb/s Drive 4 x SATA 3.0Gb/s Drive
Connectivity	4 x Intel I354 Gigabit Ethernet 1 x Realtek 8211E-PHY for IPMI ASPEED AST2400 : IPMI 2.0 with iKVM Support
Expansion Slots	1 x PCI-E x8 (2.0) [Inaccessible]

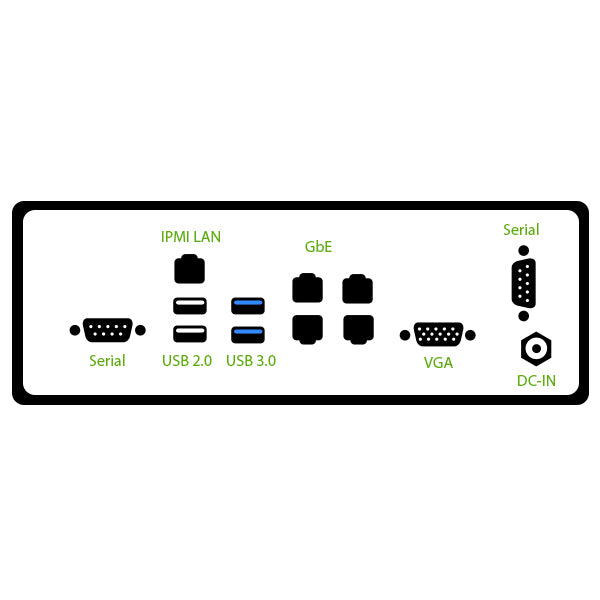

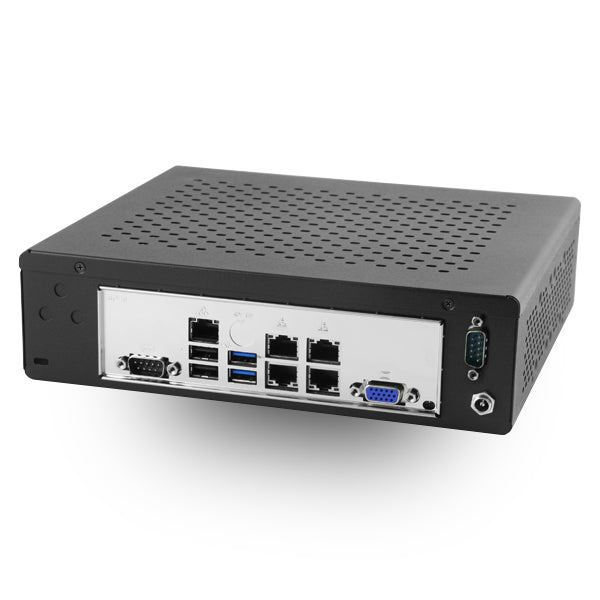

Rear Panel I/O	2 x Serial 1 x VGA 4 x RJ45 LAN 1 x RJ45 IPMI 2 x USB 2.0 2 x USB 3.0 2 x Serial 1 x DC-IN

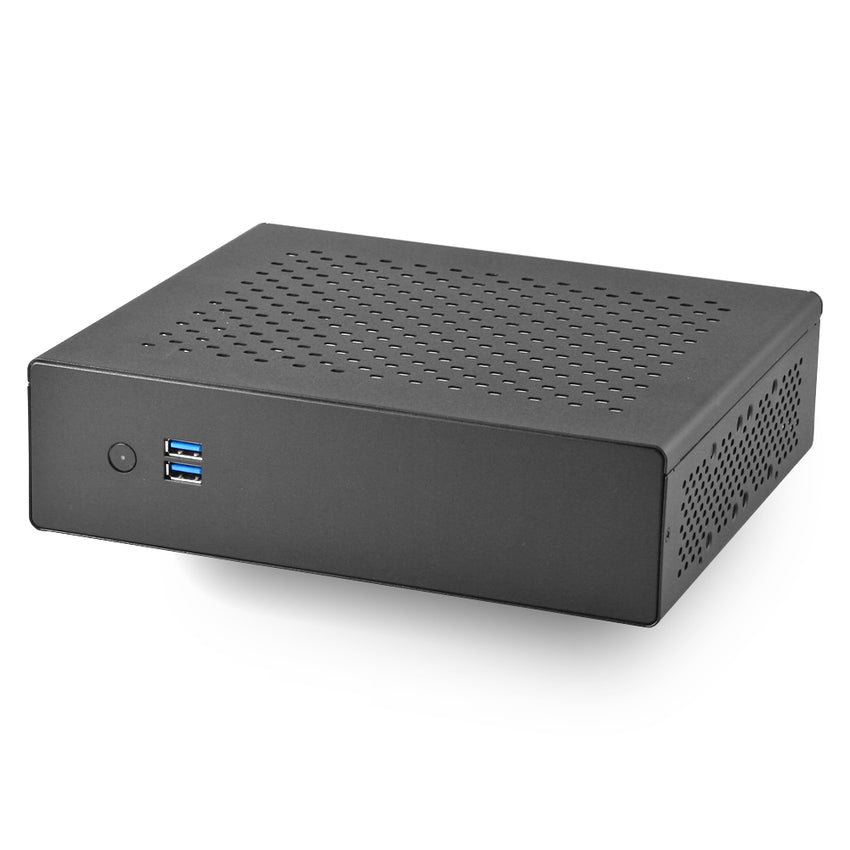

Front Panel I/O	1 x Power Button with LED 2 x USB 2.0
Drive Support	2 x 2.5" SATA Drive

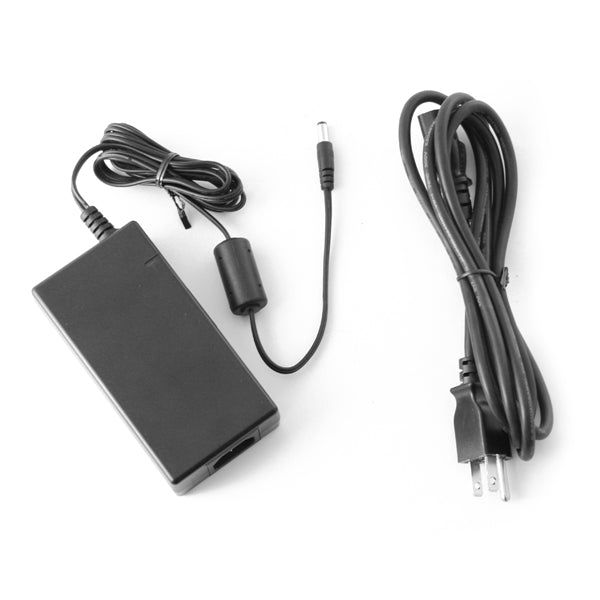

Power Supply	60W 12V Efficiency Level VI AC-DC Adapter (External)
Case Dimensions	228.4mm x 194.4mm x 61.8mm 9" x 7.7" x 2.5"
Case Cooling	2 40mm x 40mm x 10mm

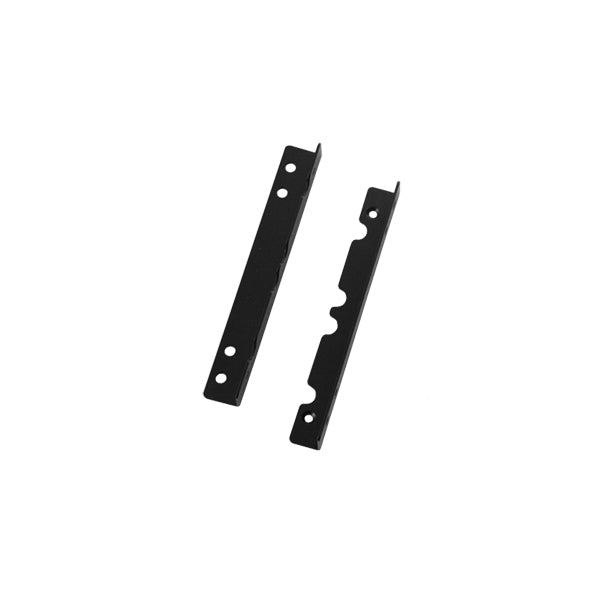

Mounting	Wall-mount Brackets Optional Secure VESA Mounting Bracket
Warranty	1-Year Warranty on Parts and Labor
