| Product ID |
MES-1605A |
| CPU |
AMD Ryzen V1605B Processor
2.00 - 3.6 GHz
4 Cores / 8 Threads
25W TDP, 4MB L3 Cache |
| Chipset |
SoC |
| Memory |
2 x DDR4 SODIMM Slots
Maximum 32GB Capacity
2400 MHz
Notes: 32GB requires 2 x 16GB
|
| Video |
AMD Radeon Vega 8 Graphics
1100 MHz
Supports up to 4 Displays
HDMI Max Resolution: 4096x2160@60Hz |
| Audio |
Realtek ALC269 HD Audio |
| Storage Technology |
1 x SATA3 6.0Gb/s Connector
1 x M.2 2280 slot (SATA) |
| Connectivity |
2 x Realtek RTL8111HS GbE LAN |
| Expansion Slots |
1 x PCI-E 3.0 x16 slot (x8 bus) (Inaccessible)
1 x Mini PCI-E slot (Full Size)
1 x M.2 2230 slot (E-Key) |

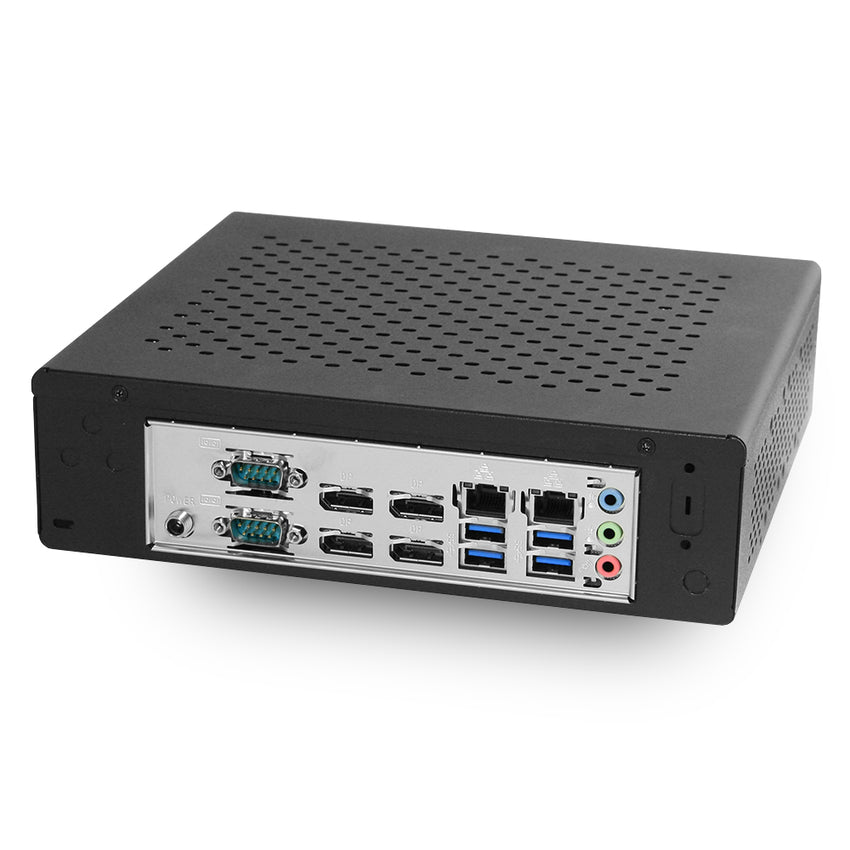

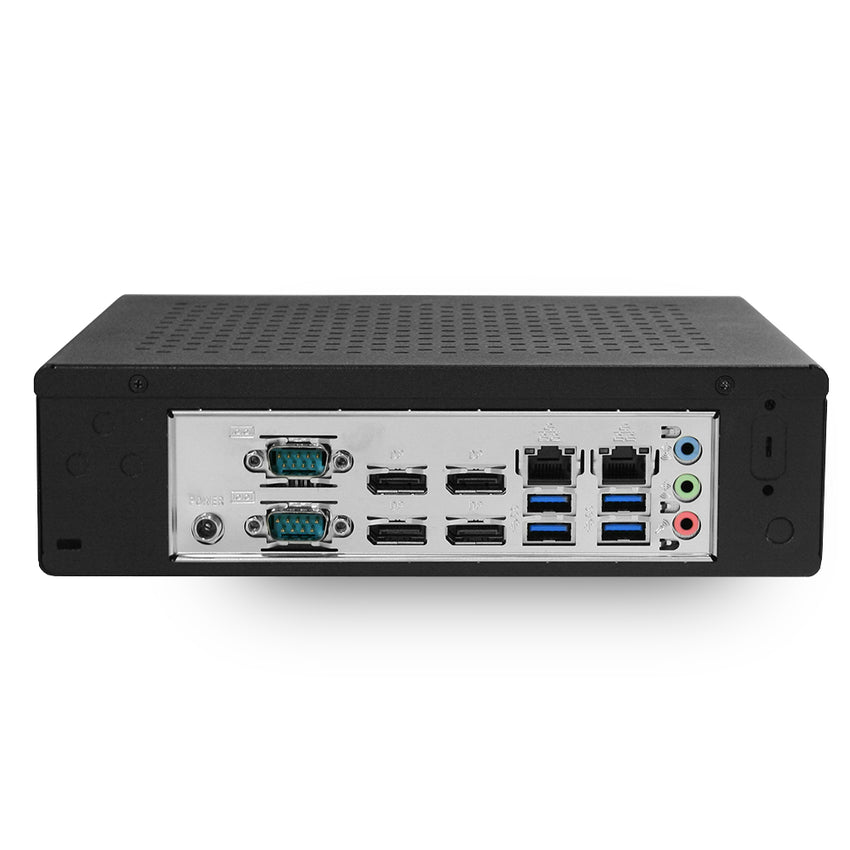

| Rear Panel I/O |
1 x DC-IN
2 x COM (RS232/422/485 and RI/5V/12V)
4 x DisplayPort
2 x RJ45 GbE LAN
4 x USB 3.0
3 x Audio I/O |
| Front Panel I/O |
2 x USB 3.0
1 x Power Button w/ LED |
| Drive Support |
1 x 2.5" HDD/SSD
1 x M.2 2280 slot (SATA) |
| Fan Support |
Supports 2 x 40x10mm Case Fans |

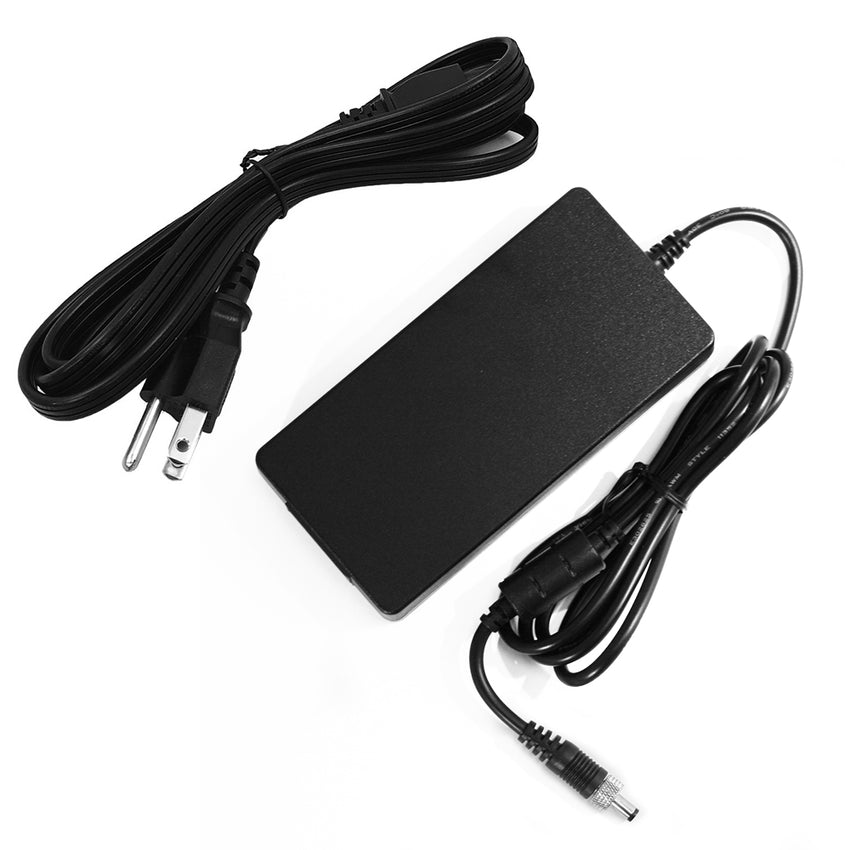

| Power Supply |
12V DC-IN
60W 12V Locking AC-DC Adapter |
| Case Dimensions |
228.6mm x 195.6mm x 63.5mm
9" x 7.7" x 2.5" (in inches) |

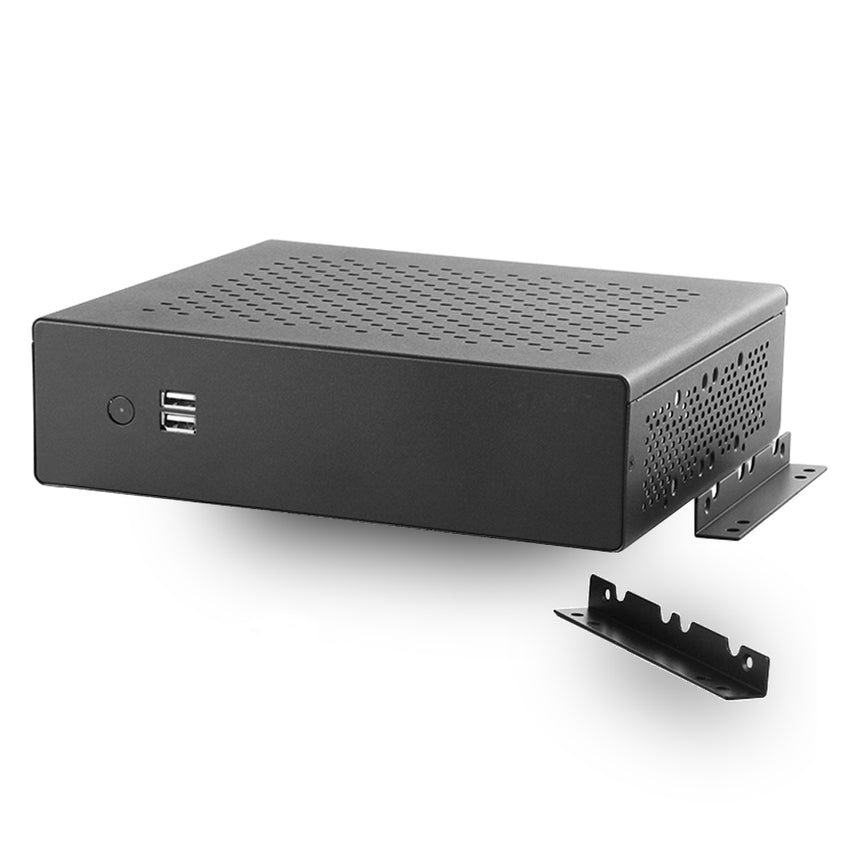

| Mounting |
Wall Mounting Brackets
Optional Secure VESA Mounting Bracket (see options) |
| Warranty |
1-Year Warranty on Parts and Labor |
