| Model Number |
ME2-10TWT-N150-8GB-PD |
| Motherboard |
MiTAC PD10TWT |
| CPU |
Intel® Twin Lake N150 Processor
4 Cores / 4 Threads |
| Chipset |
Intel® SoC Integrated |
| Memory |
8GB Industrial-Grade LPDDR5-4800 Onboard
8533MB/s Bandwidth
Onboard, Not Upgradeable |
| Video |
Intel® UHD Graphics
Dual Display Support: 1 x HDMI 1.4 + 1 x USB Type-C (DP 1.2) |
| Storage |
128GB Industrial-Grade eMMC Onboard, 400MB/s
1 x M.2 2242/3042 B Key (USB2.0/PCIe x1/SATA III) for Additional Storage or LTE |
| Connectivity |
2 x Realtek RTL8111H Gigabit Ethernet
1 x LAN Port Supports IEEE 802.3af/at PoE (PD Mode, Powered Device) |
| I/O Chipset |
Nuvoton NCT5225D |
| Security |
Nuvoton NPCT760AABYX TPM 2.0 |
| Expansion Slots |
1 x M.2 2242/3042 B Key (Storage/LTE)
1 x M.2 2230 E Key (Wireless, PCIe x1/USB2.0)
1 x Nano SIM Slot
4 x SMA Antenna Holes (Optional, for WiFi/LTE Module) |

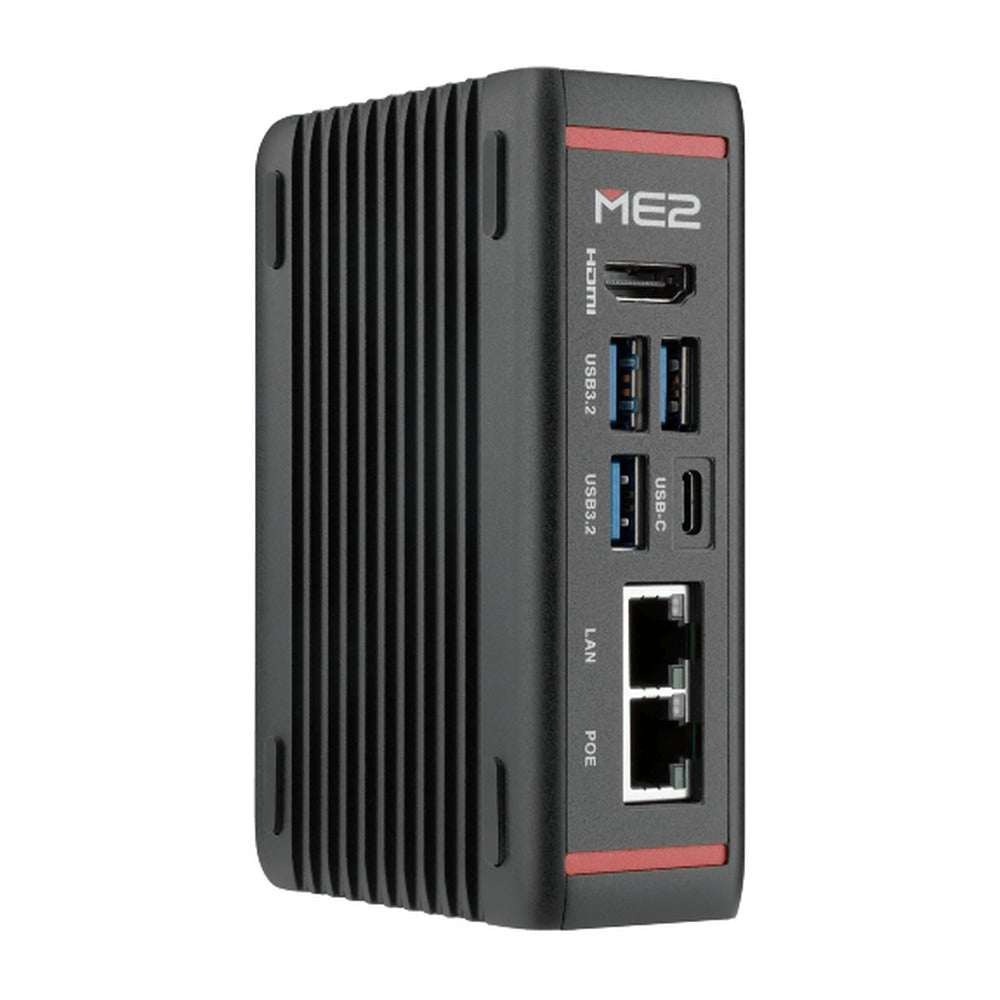

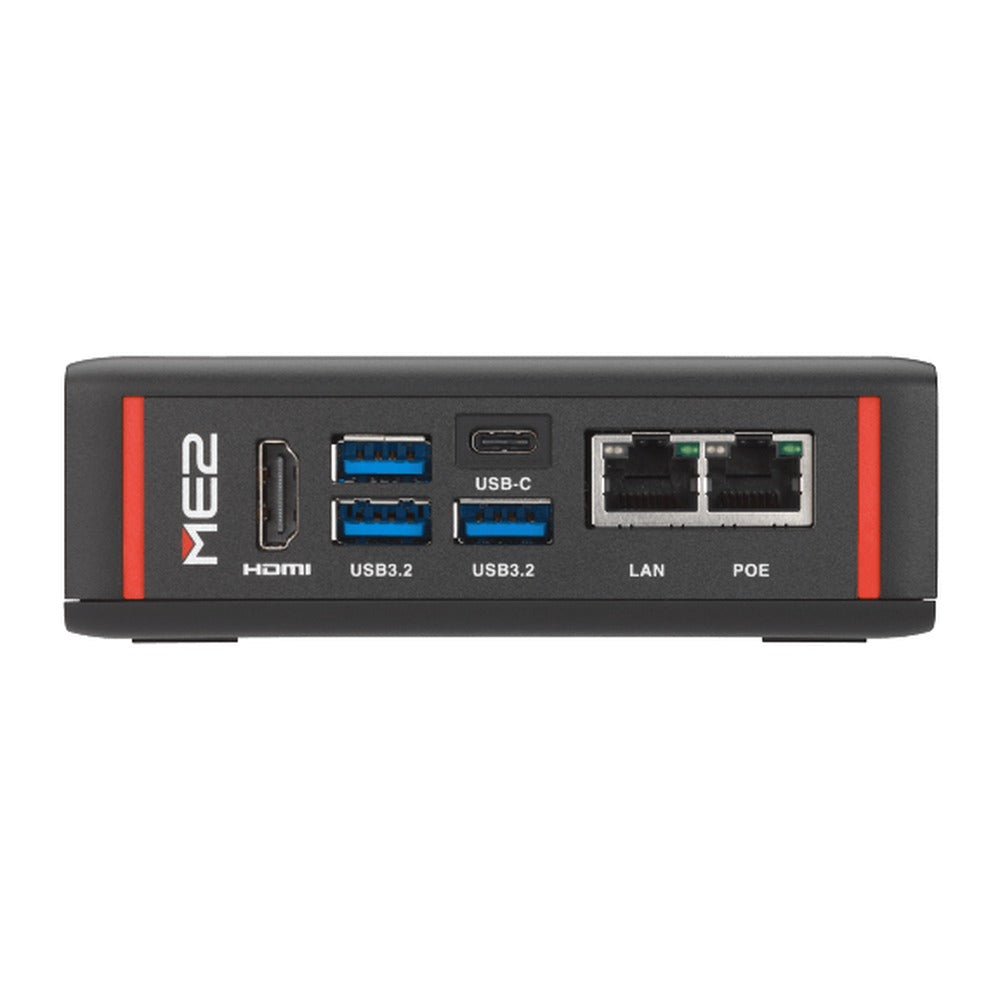

| Front I/O |
3 x USB 3.2 Gen2
1 x USB 3.2 Type-C (Display + Audio Support, 5V/3A)
2 x RJ45 Gigabit Ethernet (1 x PoE PD Input)
1 x HDMI 1.4 (Vertical) |

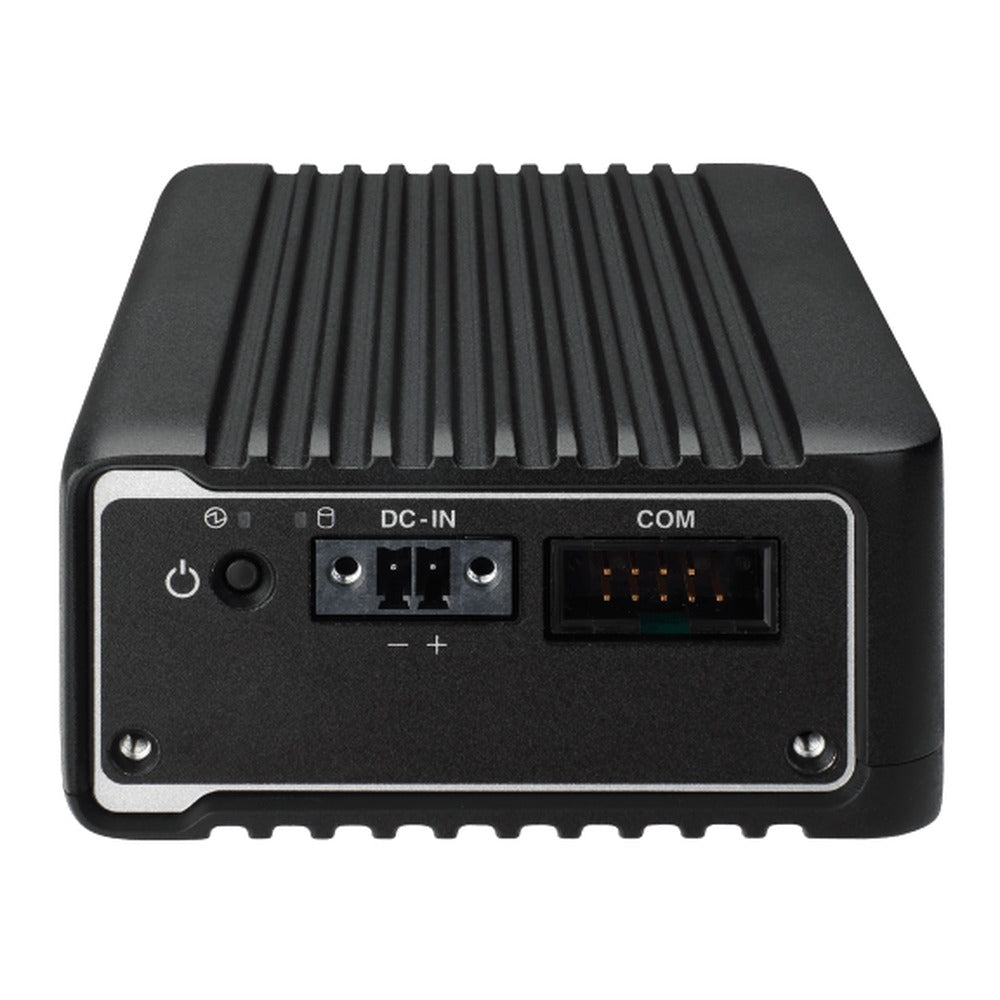

| Side I/O |
1 x Power Button
1 x 5Px2 Header for RS232/422/485 |

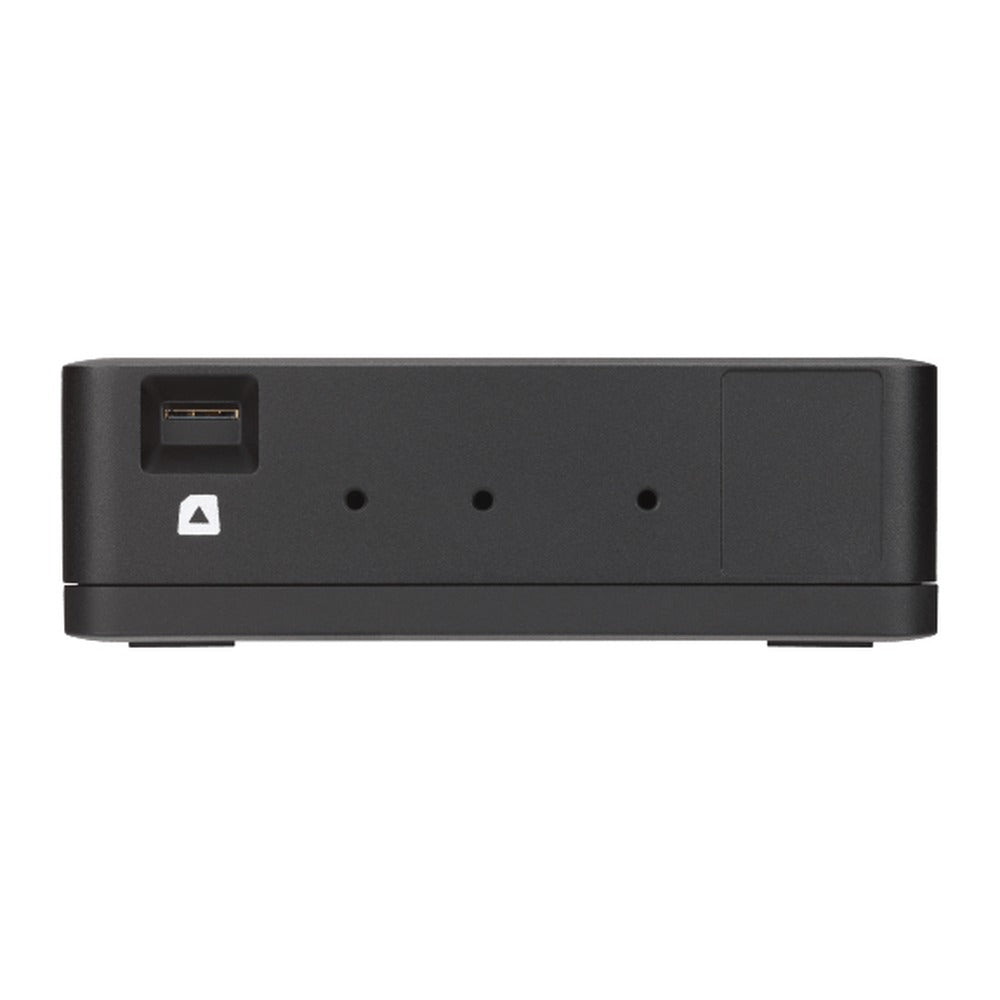

| Rear I/O |
1 x Nano SIM Slot Hole
2 x DIN Rail Mounting Holes |
| Watchdog Timer |
1~255 Steps by Software Program |
| Power |
Power over Ethernet (PoE PD) Input via LAN Port
IEEE 802.3af/at, 25.5W Max Input
Default ATX Mode, AT/ATX Adjustable via BIOS |

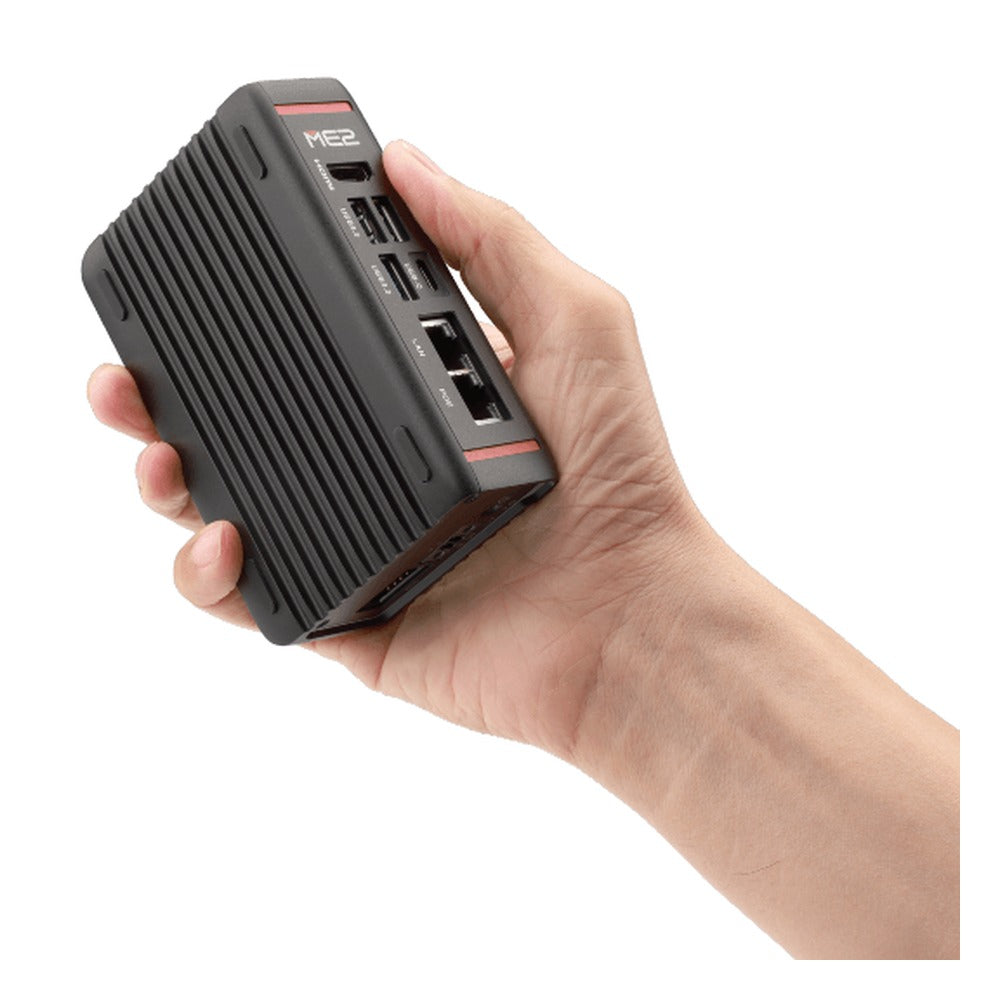

| Case Dimensions |
118.5 x 80.4 x 39.5mm
4.67" x 3.17" x 1.56" (in inches) |
| Net Weight |
0.5 kg / 1.1 lbs |
| Case Cooling |
Fanless, Die-Cast Enclosure |
| Mounting |
Includes DIN Rail Mount Bracket
Optional VESA Mount Bracket (75x75mm / 100x100mm) |
| Operating Environment |
Operating Temperature: -25°C to 55°C (with 0.7m/s Airflow, Wide-Temp SSD/RAM)
Storage Temperature: -40°C to 85°C
Humidity: 10% - 95% RH, Non-Condensing
Vibration: 5Hz-500Hz, 2Grms, 3-Axis (IEC60068-2-64)
Shock: 50Grms, Half-Sine 11ms (IEC60068-2-27) |
| Certifications |
CE
FCC Class B |
| OS Support |
Windows 11 IoT Enterprise 2024 LTSC 64-bit
Windows 10 IoT Enterprise 2021 LTSC 64-bit
Ubuntu 24.04 LTS
Linux (Support by Request) |
| Packing List |
1 x ME2-10TWT Embedded System
1 x DIN Rail Mount Bracket
1 x Screw Pack
1 x D-Sub 9 COM Port Cable
1 x Quick Installation Guide |
| Warranty |
1-Year Warranty on Parts and Labor |
