| MiTAC ME2-10TWT Pocket-Sized Fanless DIN-Rail Embedded System with Intel Twin Lake N150 Processor and Industrial-Grade Onboard Memory & Storage | |
| Model Number | ME2-10TWT-N150-4GB |
| Motherboard | MiTAC PD10TWT |
| CPU | Intel® Twin Lake N150 Processor 4 Cores / 4 Threads |
| Chipset | Intel® SoC Integrated |
| Memory | 4GB Industrial-Grade LPDDR5-4800 Onboard 8533MB/s Bandwidth Onboard, Not Upgradeable |
| Video | Intel® UHD Graphics Dual Display Support: 1 x HDMI 1.4 + 1 x USB Type-C (DP 1.2) |
| Storage | 64GB Industrial-Grade eMMC Onboard, 400MB/s 1 x M.2 2242/3042 B Key (USB2.0/PCIe x1/SATA III) for Additional Storage or LTE |
| Connectivity | 2 x Realtek RTL8111H Gigabit Ethernet |
| I/O Chipset | Nuvoton NCT5525D |
| Security | Nuvoton NPCT760AABYX TPM 2.0 |
| Expansion Slots | 1 x M.2 2242/3042 B Key (Storage/LTE) 1 x M.2 2230 E Key (Wireless, PCIe x1/USB2.0) 1 x Nano SIM Slot 4 x SMA Antenna Holes (Optional, for WiFi/LTE Module) |

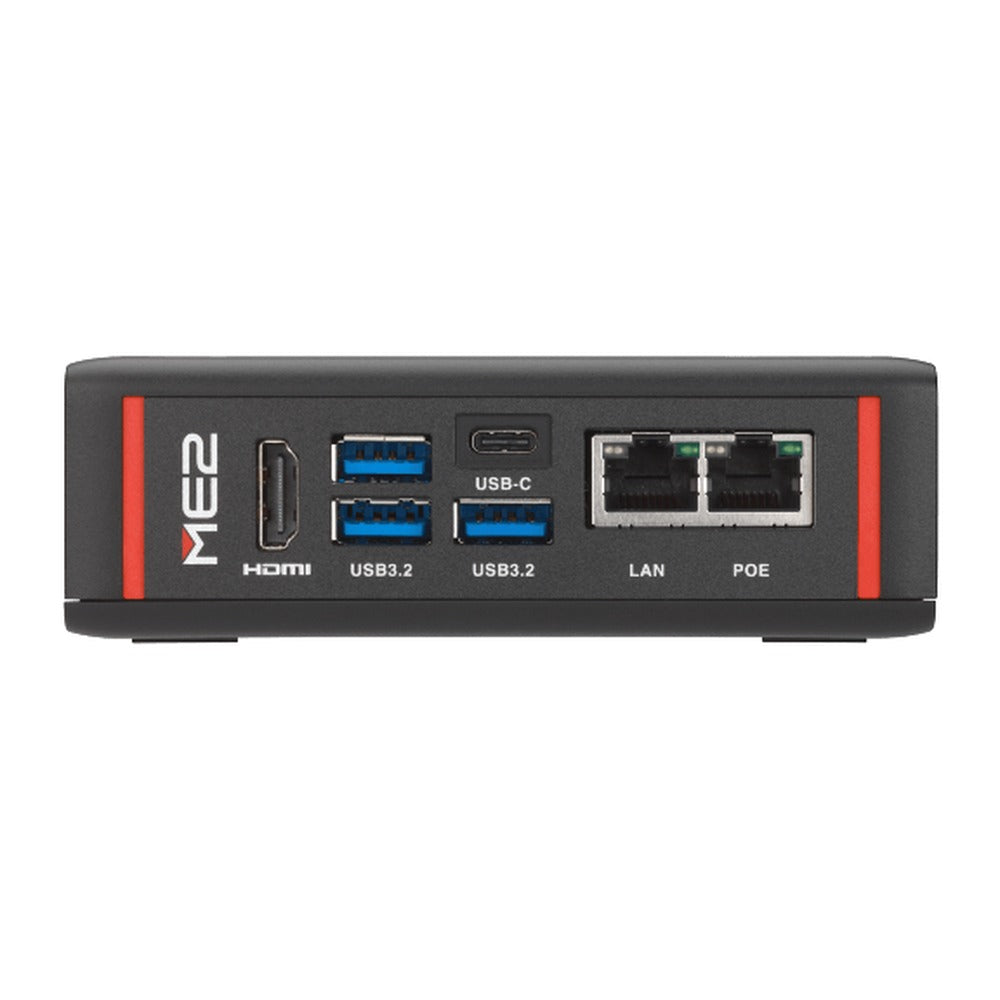

| Front I/O | 3 x USB 3.2 Gen2 1 x USB 3.2 Type-C (Display + Audio Support, 5V/3A) 2 x RJ45 Gigabit Ethernet 1 x HDMI 1.4 (Vertical) |

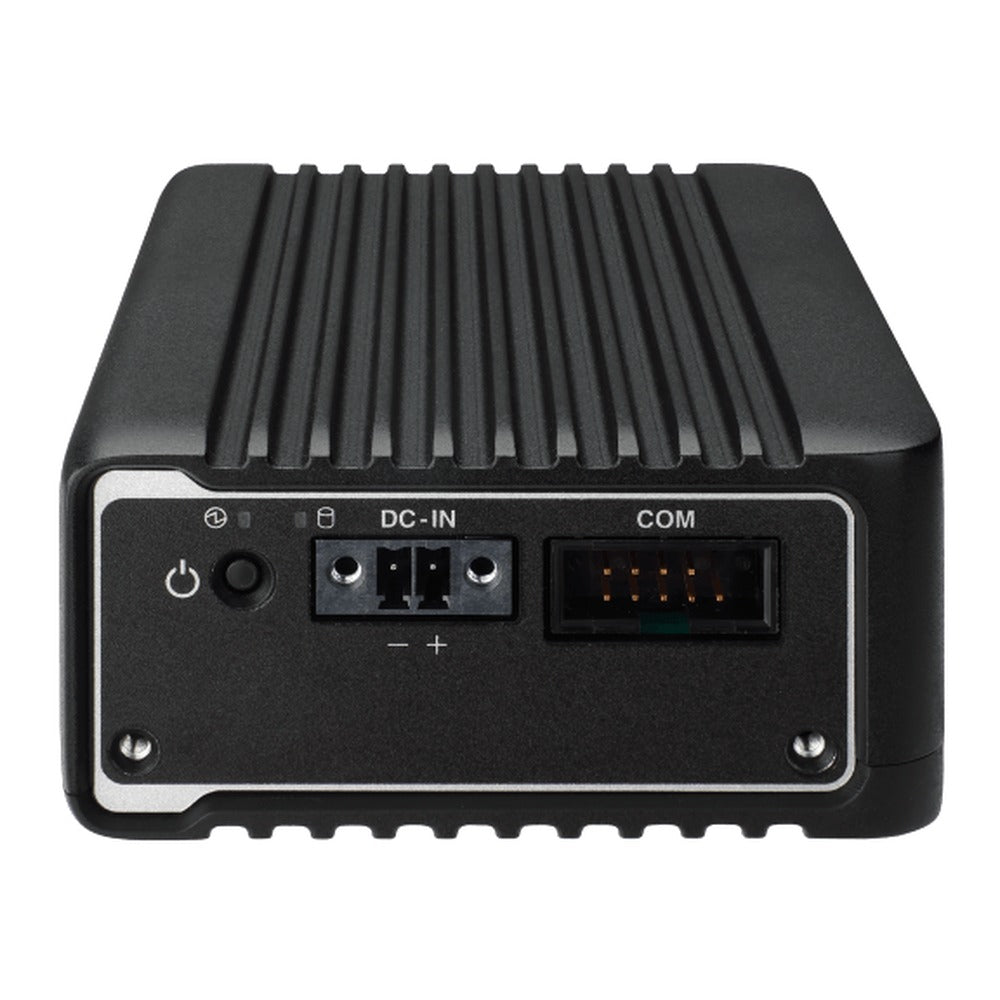

| Side I/O | 1 x Power Button 1 x 2-Pin Terminal Block (Locked) for DC Power 1 x 5Px2 Header for RS232/422/485 |

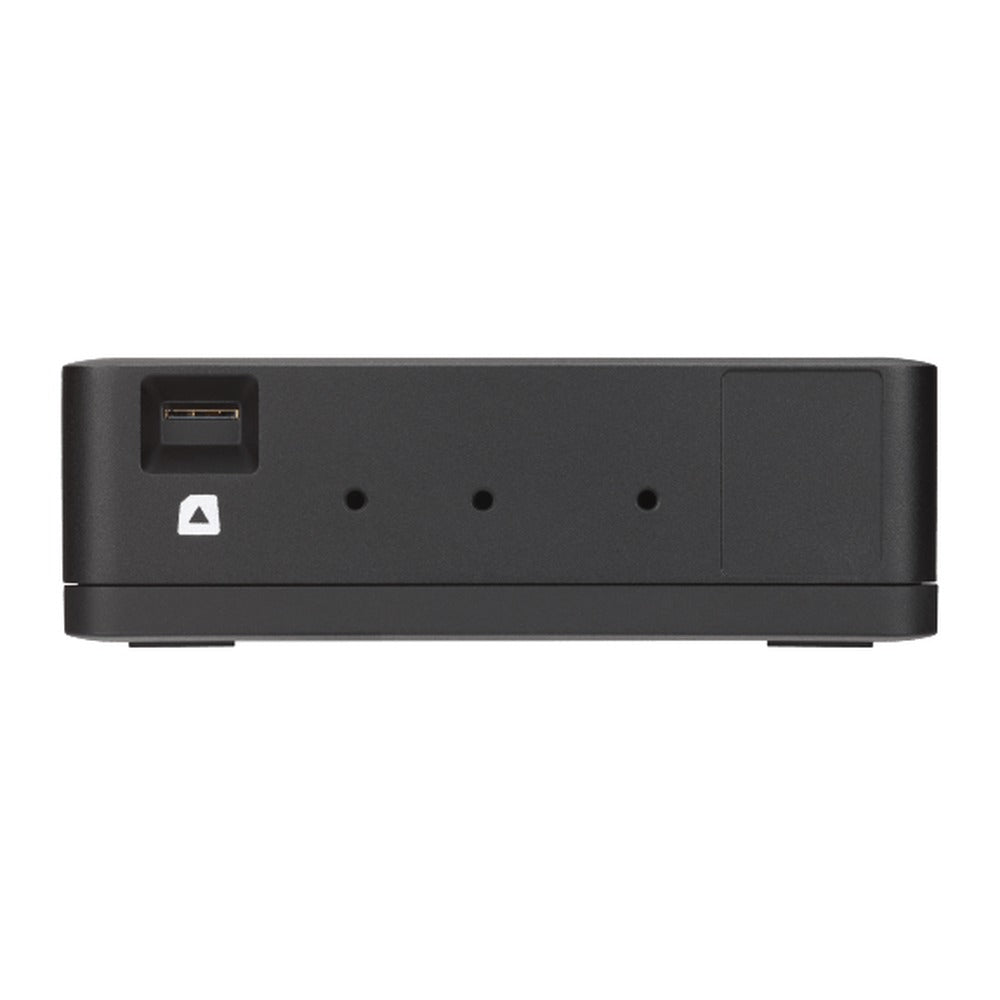

| Rear I/O | 1 x Nano SIM Slot Hole 2 x DIN Rail Mounting Holes |
| Watchdog Timer | 1~255 Steps by Software Program |
| Power | 8V - 26V Wide-Range DC Input Includes 60W AC-to-DC Adapter (2-Pin Terminal Block, US/EU Power Cords) Default ATX Mode, AT/ATX Adjustable via BIOS |
| Case Dimensions | 118.5 x 80.4 x 39.5mm 4.67" x 3.17" x 1.56" (in inches) |
| Case Cooling | Fanless, Die-Cast Enclosure |
| Mounting | Includes DIN Rail Mount Bracket Optional VESA Mount Bracket (75x75mm / 100x100mm) |
| Operating Environment | Operating Temperature: -25°C to 55°C (with 0.7m/s Airflow, Wide-Temp SSD/RAM) Storage Temperature: -40°C to 85°C Humidity: 10% - 95% RH, Non-Condensing Vibration: 5Hz-500Hz, 2Grms, 3-Axis (IEC60068-2-64) Shock: 50Grms, Half-Sine 11ms (IEC60068-2-27) |
| Certifications | CE FCC Class B |
| OS Support | Windows 11 IoT Enterprise 2024 LTSC 64-bit Windows 10 IoT Enterprise 2021 LTSC 64-bit Ubuntu 24.04 Linux (Support by Request) |
| Packing List | 1 x ME2-10TWT Embedded System 1 x DIN Rail Mount Bracket 1 x Screw Pack 1 x D-Sub 9 COM Port Cable 1 x 60W AC Adapter with US/EU Power Cords 1 x Quick Installation Guide |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: ME2-10TWT-N150-4GB
