Manufacturer	Mitac
Part Number	ME1-8MQ-4G32G
CPU	NXP i.MX 8M Quad Cortex-A53 Processor 1.3 GHz Quad Cores
Chipset	i.MX 8M SoC Integrated
Memory	Onboard 4GB LPDDR4 Memory Single Channel 800MHz
Video	i.MX8 Integrated Graphics HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 1920x1080@60Hz
Audio	Reatel ALC5660
Storage Technology	Onboard 32GB eMMC Storage 1 x Micro SIM or Micro SD Combo Card slot (Up to 256GB)
Connectivity	1 x Realtek RTL8111H GbE LAN 1 x Realtek RTL8211FD GbE LAN
Expansion Slots	1 x Mini PCI-E slot (Full/Half Sized, PCIe/USB Interface)

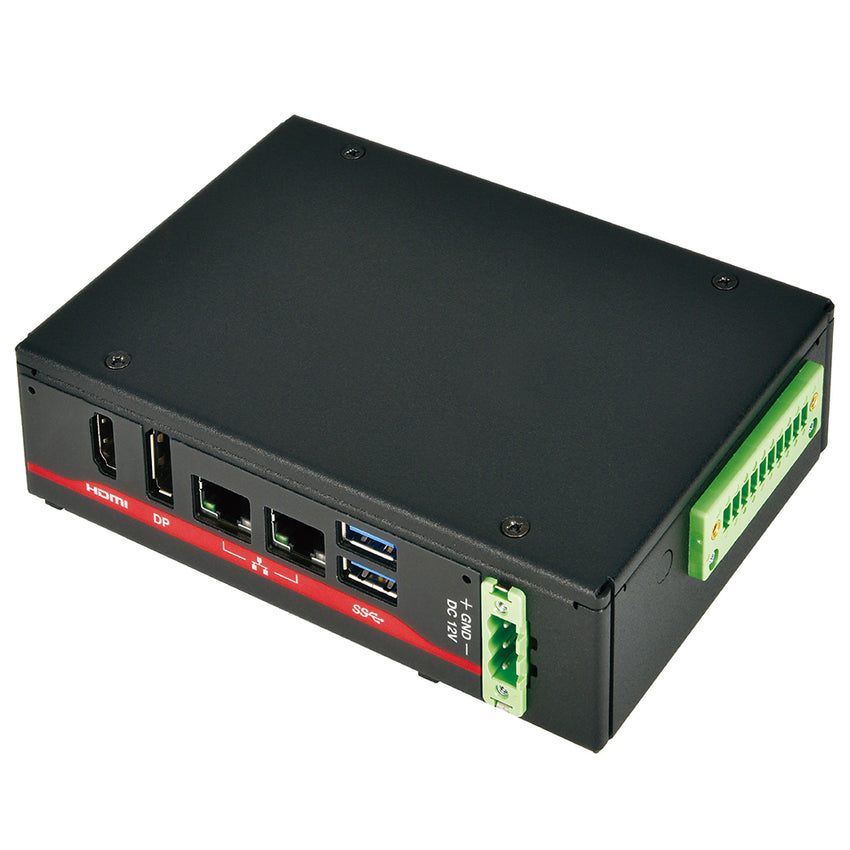

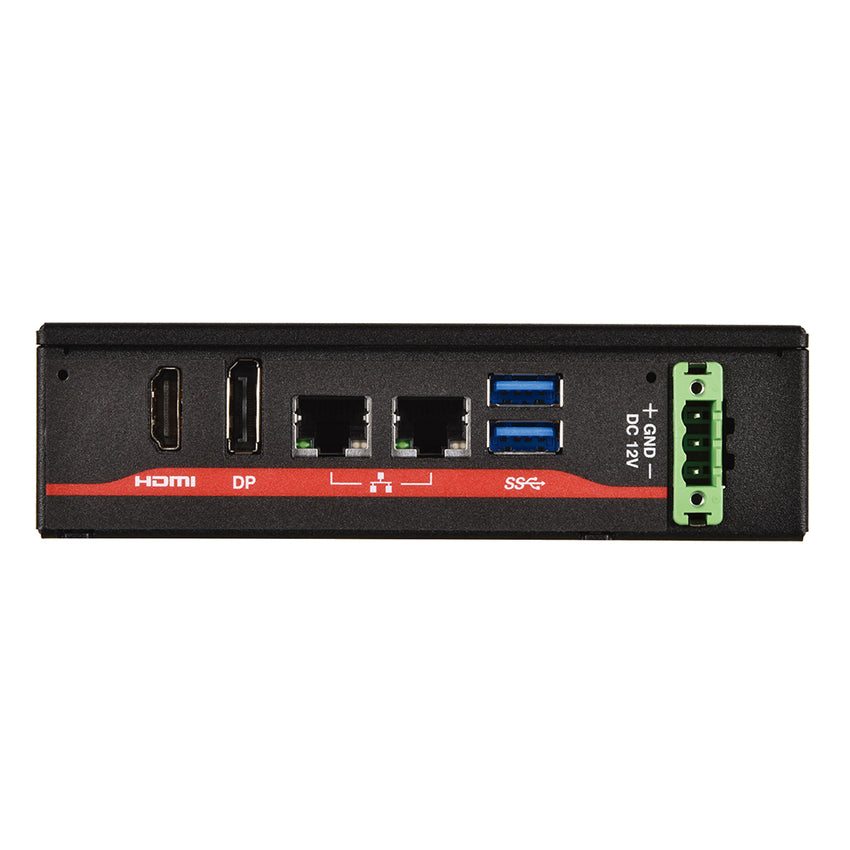

Rear I/O	1 x HDMI 1 x DisplayPort 2 x RJ45 GbE LAN 2 x USB 3.0 1 x 3-Pin Terminal Block Power Input

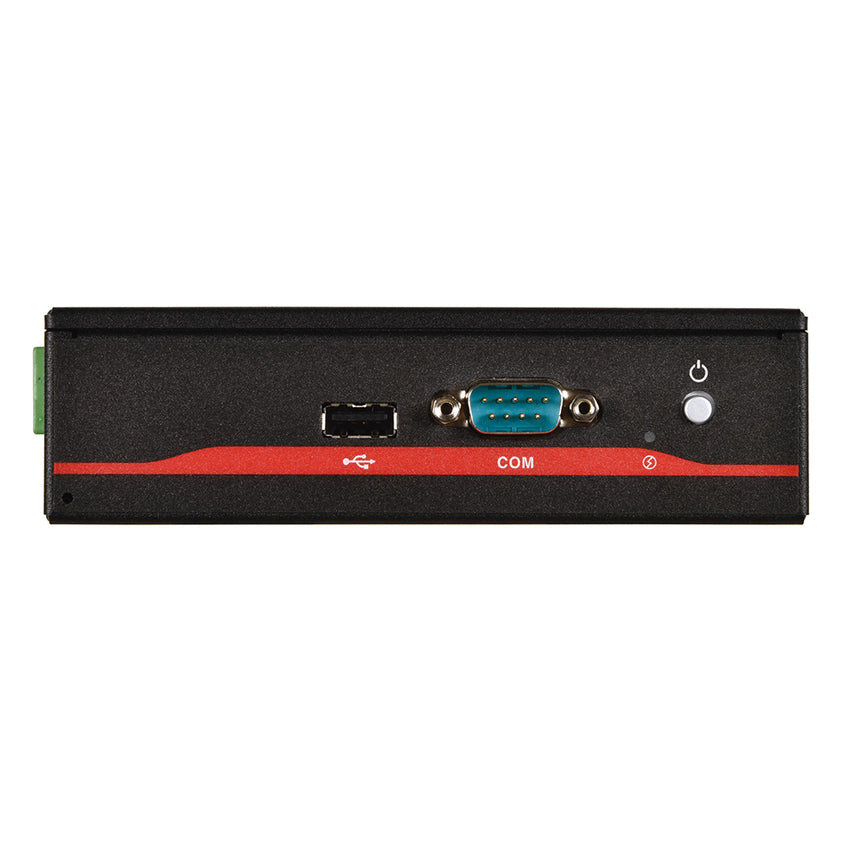

Front Panel I/O	1 x USB 2.0 1 x Serial COM (RS232/422/485) 1 x Power Button
Side Panel I/O	1 x Micro SD/SIM Card slot 1 x 10-Pin Terminal Block GPIO (4-in/4-out/5V/GND)
Drive Support	Onboard 32GB eMMC Storage 1 x Micro SD/SIM Card slot (Up to 256GB)
Power Supply	3-Pin Terminal Block Power Input 36W 12V AC-DC Adapter
Case Dimensions	140 x 100 x 38.75mm 5.5" x 3.9" x 1.5" (in inches, approximate)
Mounting	Wallmount/VESA Mount (75 x 75mm ) Bracket
Environmental	Operating Temperature: 0°C to 55°C (32°F to 131°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 10% to 90% R/H (non-condensing) Non-operating Humidty: 10% to 95% (non-condensing)
OS Support	Yocto Sumo (Kernal version 4.14.98) BSP Support Android 9 Pie (Kernal version 4.14.98) BSP Support
Compliance	CE / FCC Class B
Warranty	1-Year Warranty on Parts and Labor
