| Manufacturer | Cincoze |
| Product ID | MD-3000-R10 |
| Model Name | MD-3000 |
| CPU |
Supports Intel 14th Gen Core Processors, Raptor Lake-S Refresh Socket LGA 1700 |
| Chipset | Intel R680E |
| Memory |
2 x DDR5 SODIMM slot Maximum 96GB Capacity 5200/4800 MHz Supports Unbuffered and ECC |
| Video |
Intel UHD Graphics (CPU Dependent) DisplayPort Max Resolution: 3840x2160@60Hz Supports Dual Displays |
| Audio | N/A |
| Storage Technology |
1 x M.2 2280 slot (PCI-E 3.0 x4) 1 x M.2 2280 slot (PCI-E 3.0 x4/SATA) Supports RAID 0/1 |
| Connectivity |
1 x Intel I219 GbE LAN 4 x Intel I210 GbE LAN |
| Expansion Slots |

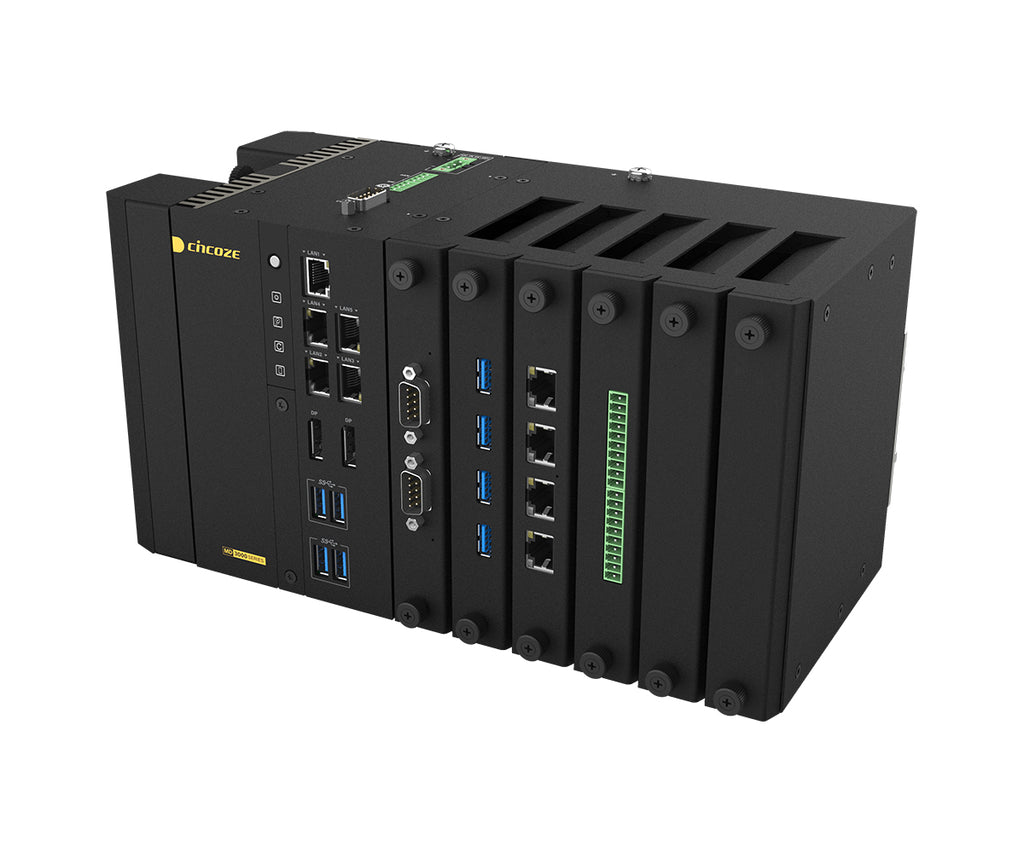

1 x PCIe x16 Interface for Scalable Expansion Deck |

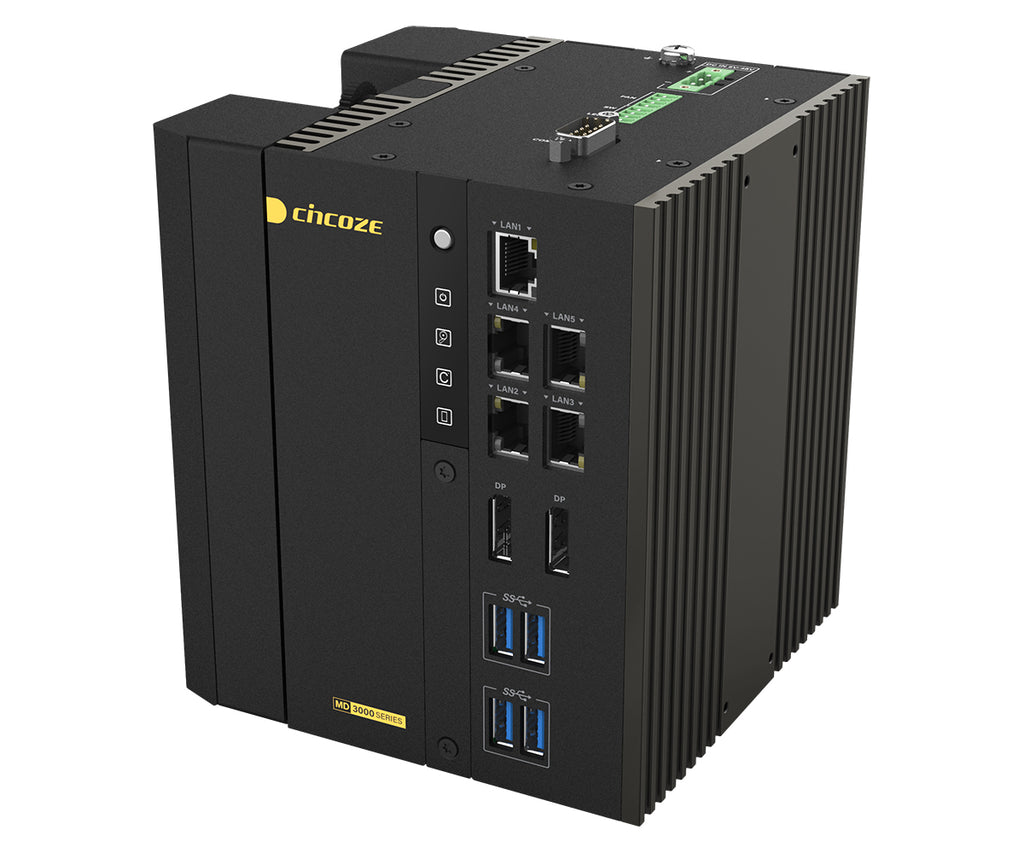

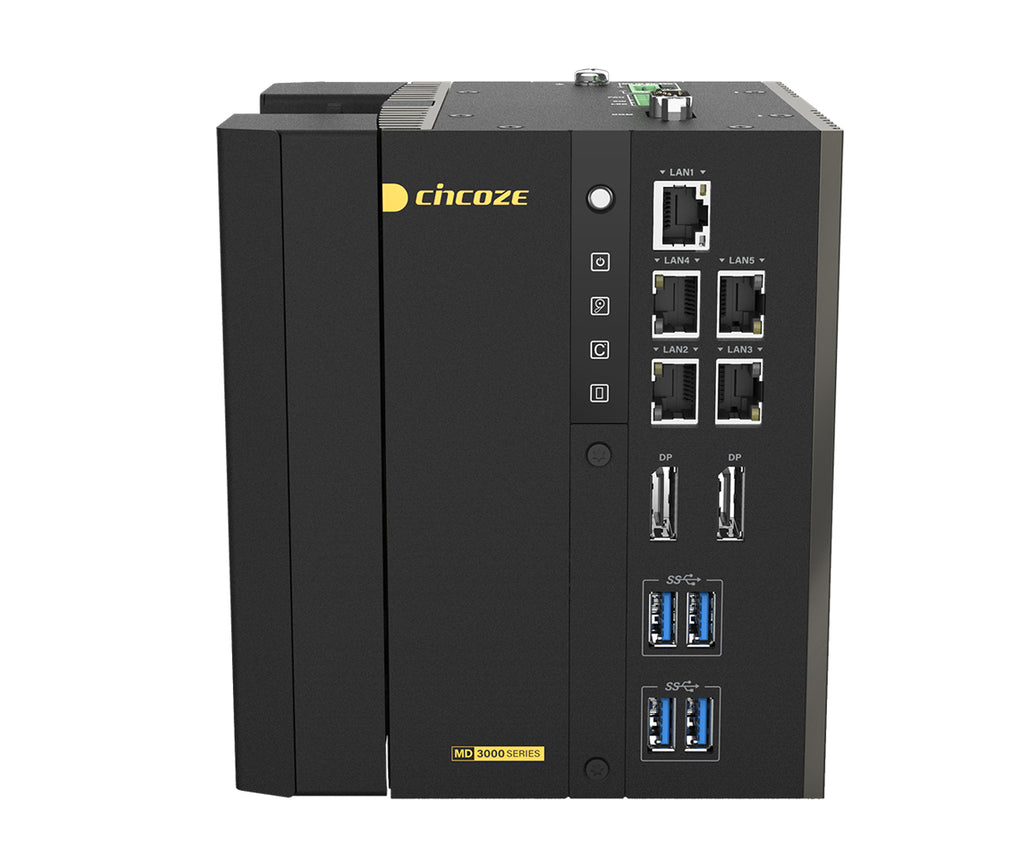

| Rear Panel I/O |
1 x Power Button 4 x Status LED (Power, HDD, Thermal, GPIO) 5 x RJ45 GbE LAN 2 x DisplayPort 4 x USB 3.2 (Gen1x1) |
| Top Panel I/O |
1 x COM (RS232/422/485, 5V/12V) 1 x 2-Pin Terminal Block Remote Power Button 1 x 2-Pin Terminal Block Remote Power LED 1 x 4-Pin Terminal Block External Fan Connector 1 x 3-Pin Terminal Block 9-48V DC-IN 1 x GND Screw |
| Drive Support |
1 x M.2 2280 slot (PCI-E 3.0 x4) 1 x M.2 2280 slot (PCI-E 3.0 x4/SATA) Supports RAID 0/1 |
| OS Support |
Windows 11 Windows 10 Ubuntu 22.04 |
| Power Supply |
3-Pin Terminal Block 9-48V DC-IN |
| Case Dimensions |
135.5 x 132 x 152.2mm 5.3" x 5.2" x 6.0" (in inches) |
| Mounting |
Wallmount DIN Rail Mount |
| Environmental |
35W TDP Processor: -40°C to 65°C (-40℉ to 149℉) 45W TDP Processor: -40°C to 55°C (-40℉ to 131℉) 65W TDP Processor: -40°C to 45°C (-40℉ to 113℉) Note: PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) Note: With external fan, extended temperature peripherals; Ambient with air flow Note: According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 Storage Temperature: -40°C to 85°C (-40℉ to 185℉) Relative Humidity: 95%@65℃ Shock: 30 Grms, Half-sine 11 ms Duration (w/ External Fan & SSD, according to IEC60068-2-27) Operating Random Vibration: 3 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Operating Sinusoidal Vibration: 1 Grms, 10-500 Hz, 3 Axes (w/ External Fan & SSD, according to IEC60068-2-6) |
| Compliance |
CE, UKCA, FCC, ICES-003 Class A EMC: EN/BS/IEC 61000-6-4: 2019 Class A, EN/BS/IEC 61000-6-2: 2019 |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: MD-3000-R10
