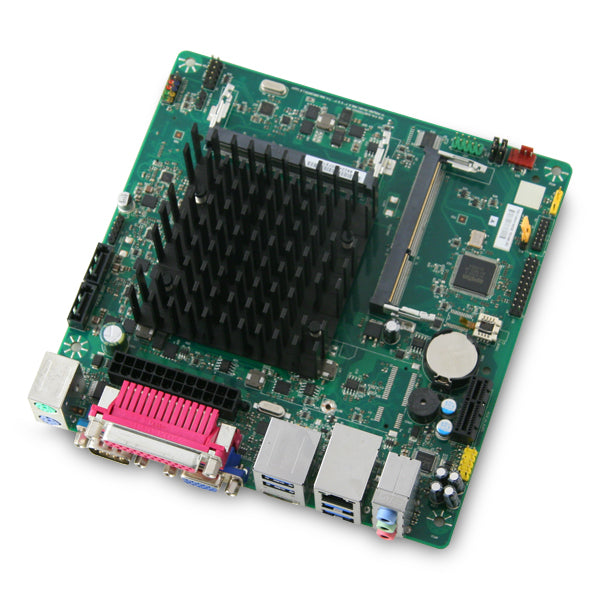

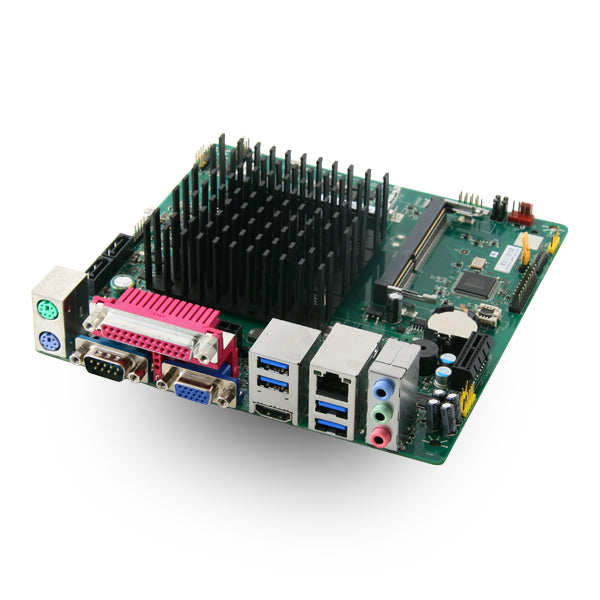

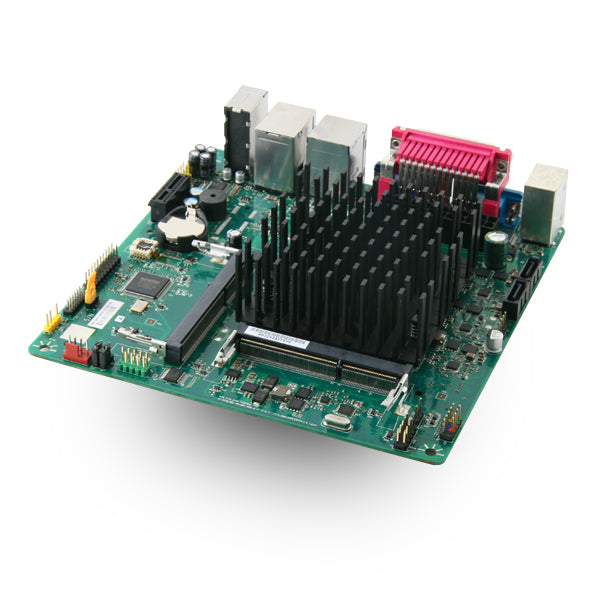

Mitac PD14RI-D Intel Celeron N3160 Braswell fanless Mini-ITX Motherboard
Manufacturer	Mitac
Part Number	PD14RI-D
CPU	Intel Celeron N3160 1.6 - 2.24 GHz Quad Core 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit
Chipset	SoC
Memory	2 x 204-pin DDR3L SODIMM Maximum 8GB capacity Dual Channel Support 1333MHz Minimum Low Voltage 1.35V Required
Video	Intel HD Graphics 320 - 640 MHz Supports Dual Display
Audio	Realtek ALC662 HD Audio 5.1 Channel S/PDIF Out
Storage	2 x SATA3 6.0Gb/s
Connectivity	1 x Realtek RTL8111G GbE LAN 10/100/1000
Expansion Slots	1 x PCI-E x1 (2.0)
Power	1 x 24-pin ATX Connector

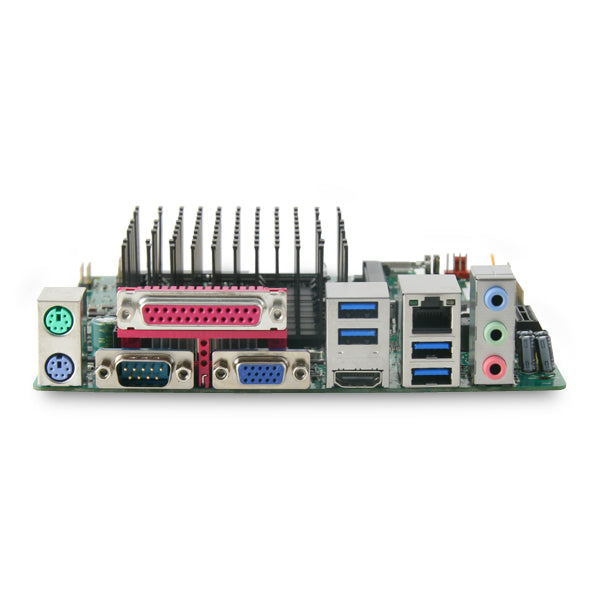

Rear Panel I/O	2 x PS/2 1 x Parallel Port 1 x COM Port 1 x VGA 4 x USB 3.0 1 x HDMI 1 x RJ45 3 x Audio IO
Onboard I/O Headers	1 x USB 2.0 header 1 x 4-pin Fan connector 1 x Front panel Audio In/Out 1 x Serial Port header 1 x TPM header
Special Features	Wake on USB, PCI, PCI Express, LAN, serial, PS / 2, and front panel MiAPI Support
Form Factor	Mini-ITX 170mm x 170mm (6.7" x 6.7")
BIOS	SMBIOS Supports Plug and Play Supports ACPI
Warranty	1-Year Manufacturer's Warranty
Compliance	CE, FCC
Environmental	Operating Temperature: 0 to 60 C Storage Temperature: -20 to 70 C

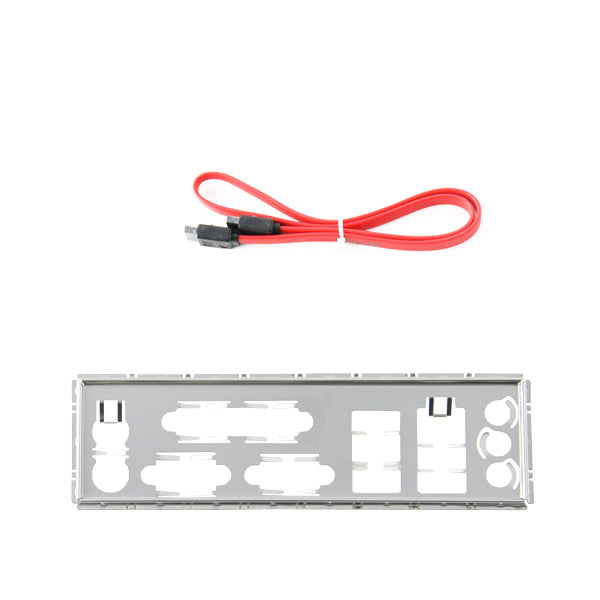

Included in Box	Mitac PD14RI-D Mini-ITX Motherboard 1 x I/O Shield 1 x Driver Disc 1 x Manual 2 x SATA Cables
