Manufacturer	Jetway
Part Number	MA20-Q6702
Model Name	MA20
CPU	Supports Intel 14th/13th/12th Gen Core Processors, Alder Lake-S Socket LGA 1700 Maximum 125W TDP
Chipset	Intel Q670E Intel PTT (fTPM) and TPM 2.0 (dTPM)
Memory	4 x DDR5 DIMM Memory Slots Maximum 192GB Capacity 4800/4000 MHz Dual Channel
Video	Intel UHD Graphics (CPU Dependent) DisplayPort 1.4a Max Resolution: 4096x2304@60Hz HDMI 2.0b Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1080@60Hz Supports Triple Displays
Audio	Realtek Audio Codec
Storage Technology	4 x SATA3 Ports Supports Intel RSTe RAID 0, 1, 5, 10 1 x M.2 2280/2242 slot (PCI-E 4.0 x4, M Key) 1 x M.2 2280/2242 slot (PCI-E 4.0 x4 or SATA, M Key) 1 x M.2 2230 slot (USB 2.0/PCI-E 3.0 x1, Supports CNVi, E Key) 1 x M.2 3042/3052 slot (PCI-E 3.0 x1/USB 3.2 Gen 2/USB 2.0, B Key) 1 x Nano SIM Slot
Connectivity	1 x Intel I226-LM 2.5GbE LAN (Supports iAMT) 2 x Intel I226-V 2.5GbE LAN
Expansion Slots	1 x PCI-E 4.0 x16 or 2 x PCI-E 4.0 x8 slots 2 x PCI-E 4.0 x4 2 x PCI-E 3.0 x1 1 x PCI
Power	1 x 24-Pin ATX Power Connector 2 x 12V 8-Pin ATX Power Connector for CPU

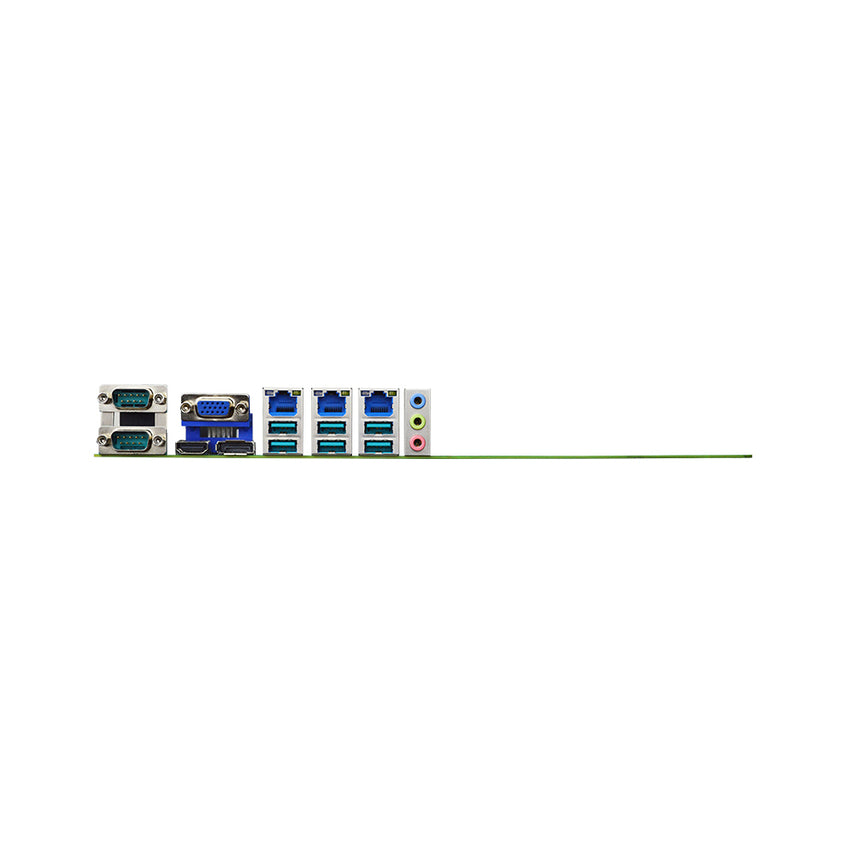

Rear I/O	2 x COM (RS232/422/485) 1 x VGA 1 x HDMI 2.0b 1 x DisplayPort 1.4a 3 x RJ45 2.5GbE LAN 6 x USB 3.2 (Gen2) 3 x Audio I/O
Onboard I/O Headers	1 x USB 3.2 (Gen2) Vertical Type-A 2 x USB 3.2 headers 2 x USB 2.0 header 1 x USB 2.0 Vertical Type-A 4 x COM (RS232) 1 x 8-bit GPIO 1 x SMBus 1 x Chassis Intrusion 1 x PS/2 1 x Audio header 1 x AT Mode Selection
OS Support	Linux Windows 11 (64-bit) Windows 10 (64-bit)
Form Factor	ATX 12" x 9.6" (in inches) 305 x 244mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F) Operating Humidity: 10% to 90% (non condensing) Shock: 15G, 11ms duration Vibration: 1 Grms/ 5~ 500Hz/ Operation
Compliance	CE/FCC Class A LVD EU RoHS China RoHS REACH
Warranty	1-Year Manufacturer's Limited Warranty
