Manufacturer	Jetway
Part Number	JNMF891-H310
CPU	Supports Intel 8th Gen/9th Gen Processor LGA1151 Max 65W TDP
Chipset	Intel H310 Chipset
Memory	2 x DDR4 DIMM Slots 2666 MHz Maximum 32GB Capacity Supports Dual Channel
Video	Intel HD Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60hz DVI-D Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 4096x2304@24Hz DisplayPort Max Resolution: 4096x2304@60Hz Supports 2 independent displays
Audio	Realtek ALC662VD HD Audio 6 Channel
Storage Technology	3 x SATA3 6Gb/s Connectors 1 x M.2 (M-key, 2242/2260/2280/22110, SATA interface)
Connectivity	2 x Realtek RTL8111H GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 1 x PCI-E 3.0 x1 2 x PCI 1 x Mini PCI-E (full size) 1 x SIM Card Holder
Power	24-Pin ATX Power Connector 8-Pin CPU ATX Power Connector AT/ATX Supported

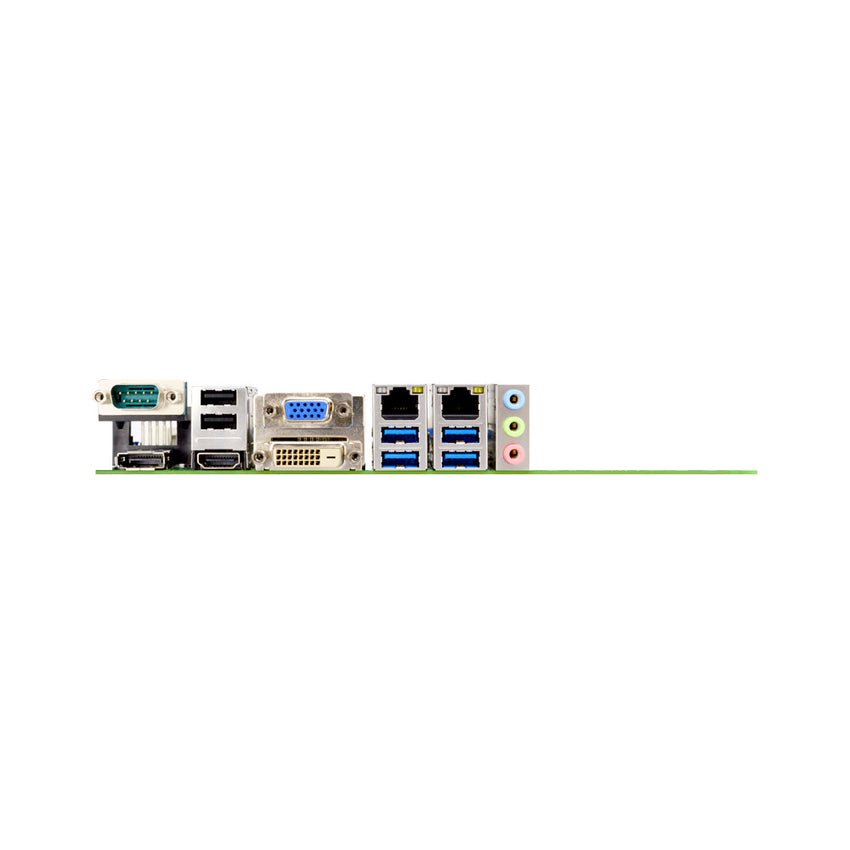

Rear I/O	1 x Serial COM Port (RS232/422/485) 1 x DisplayPort 2 x USB 2.0 1 x HDMI 1 x VGA 1 x DVI-D 2 x RJ45 GbE LAN 4 x USB 3.0 Gen1 3 x Audio I/O
Onboard I/O Headers	1 x USB 2.0 headers (2 additional Ports) 1 x PS/2 connector 1 x SMBUS header 8 x Serial Port headers (RS232) 1 x Serial Port header (RS232/422/485) 1 x 8-bit GPIO 1 x Chassis Intrusion header 1 x AT/ATX mode jumper
Special Features	Support ACPI S3 CPU Smart FAN Watchdog timer 10-255 min/sec
Form Factor	Micro ATX 244 x 244mm 9.6" x 9.6" (in inches)
Compliance	CE, FCC, RoHS, ErP
Environmental	Operating Temperature: 0°C - 60°C (32°F - 140°F) Storage Temperature: -20°C - 85°C (-4°F - 185°F)
Warranty	2-Year Manufacturer's Limited Warranty
