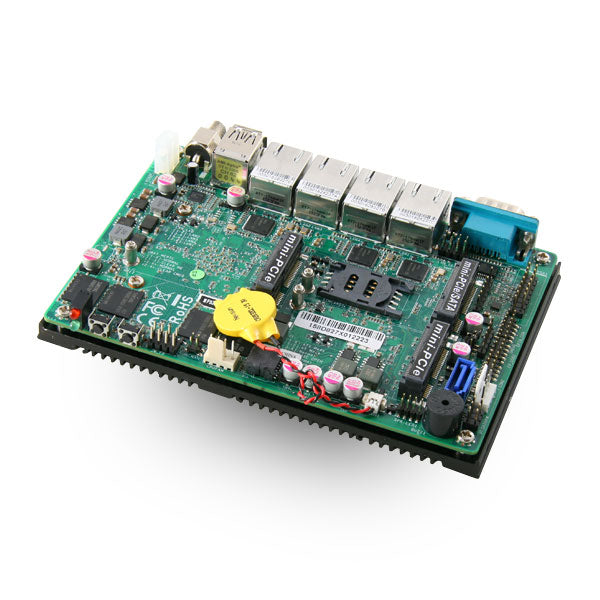

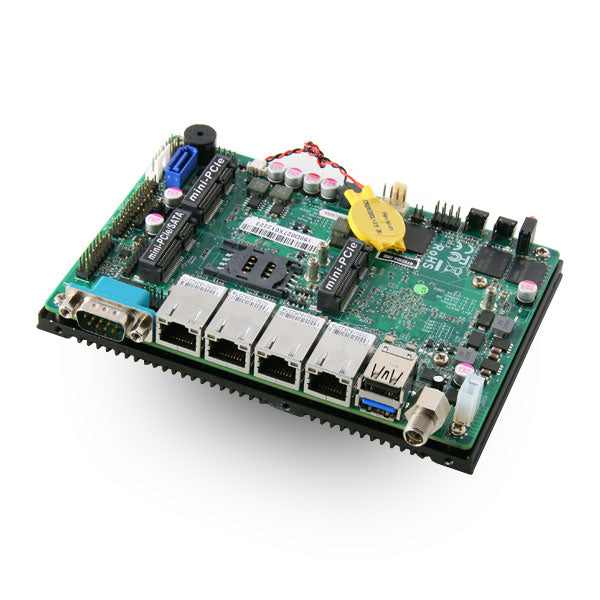

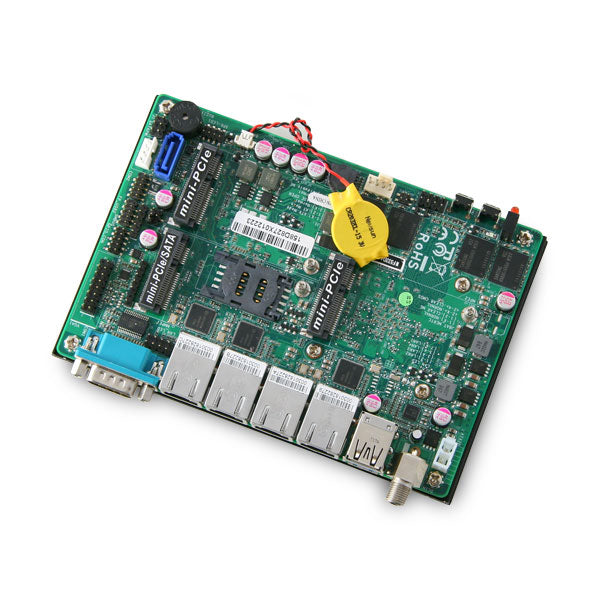

Jetway NF533D4-1900 Intel Celeron J1900 3.5" Industrial SBC Motherboard w/ 4 x Intel GB LAN
Manufacturer	Jetway
Part Number	JNF533D4-1900
Model Number	NF533D4-1900
CPU	Intel Celeron J1900 2 - 2.42 GHz 4 core / 4 Threads 10W TDP, 22nm, 2MB Cache, 64-bit
Chipset	SoC
Memory	Onboard 4GB DDR3L-1333MHz Memory
Video	Intel HD Graphics 688 - 854 MHz
Storage	1 x SATA2 3.0Gb/s Drive 1 x mSATA/Mini PCI-E
Connectivity	4 x Intel i211AT GbE 10/100/1000 Mbps
Expansion Slots	2 Mini PCI-E Slot (Full size)
Power	On-board DC-DC Converter +12V DC-IN barrel connector (~2.5/5.5mm) ATX12V 1 x 2 Power Connector (Molex 5566-2) Tip: Use only one DC-Power Source

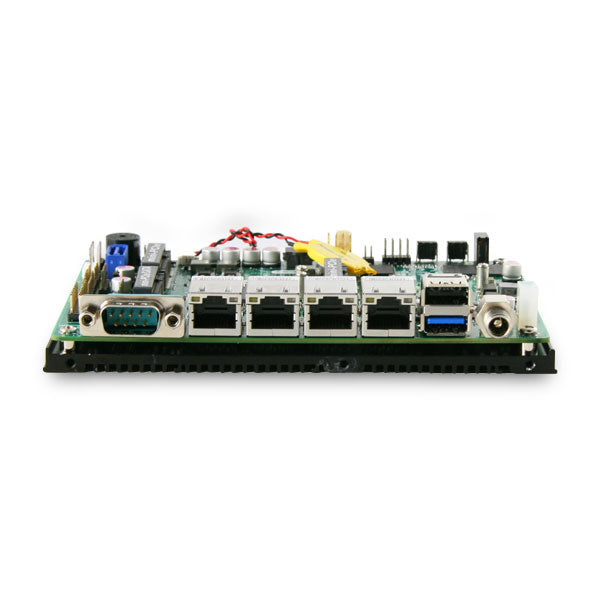

Rear Panel I/O	1 x Serial 4 x RJ45 1 x USB 2.0 1 x USB 3.0 1 x 12V DC-IN
Front Panel I/O	2 x Power LED 1 x Power Button 1 x Reset Button
Onboard I/O Headers	1 x SATA Power Connector 1 x Fan header 1 x Front Panel header 1 x Speaker and Power LED header 1 x LAN LED header 1 x USB 2.0 header (Supports up to 2 ports) 1 x PS/2 header 1 x SMBUS header 1 x GPIO_CON header 1 x Front Panel VGA header
Special Features	Watchdog Timer
Form Factor	3.5" SBC 148mm x 102mm
BIOS	AMI 64MB Flash ROM
Warranty	2-Year Manufacturer's Warranty
Compliance	CE, FCC, ErP
Environmental	Operating Temperature: 0 ~ 40 C Storage Temperature: -20 ~ 85 C

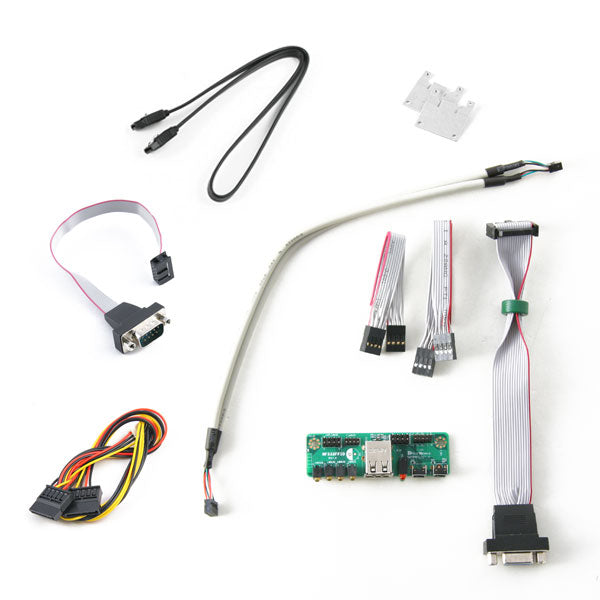

Included in Box	Jetway NF533D4-1900 3.5" SBC Motherboard 1 x Front Panel 3 x Front Panel header Cables 1 x Serial Cable 1 x SATA Power Cable 1 x SATA Cable 1 x VGA Cable 2 x Mini PCI-E full length adapters 1 x Driver Disc
