Manufacturer	Jetway
Part Number	JIMBA-1900-2L
CPU	Intel Celeron J1900 Processor 4 Cores / 4 Threads 2.0 - 2.42 GHz 10W TDP, 2MB L2 Cache
Chipset	SoC
Memory	1 x DDR3L SODIMM slot 1333 MHz Maximum 8GB Capacity
Video	Intel HD Graphics 688 - 854 MHz VGA Max Resolution: 1920x1080@60Hz HDMI Max Resolution: 1920x1200@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Dual Displays
Audio	N/A No Function: Speaker Header, Line out, Mic In
Storage Technology	1 x SATA2 3Gb/s Connector 1 x M.2 2260/2242 slot
Connectivity	2 x Realtek RTL8111G GbE LAN
Expansion Slots	1 x Mini PCI-E slot
Power	1 x 12V DC-IN Barrel Connector 1 x 4-pin ATX Alternate Power Connector Note: Do not use both connectors, No isolation circuitry

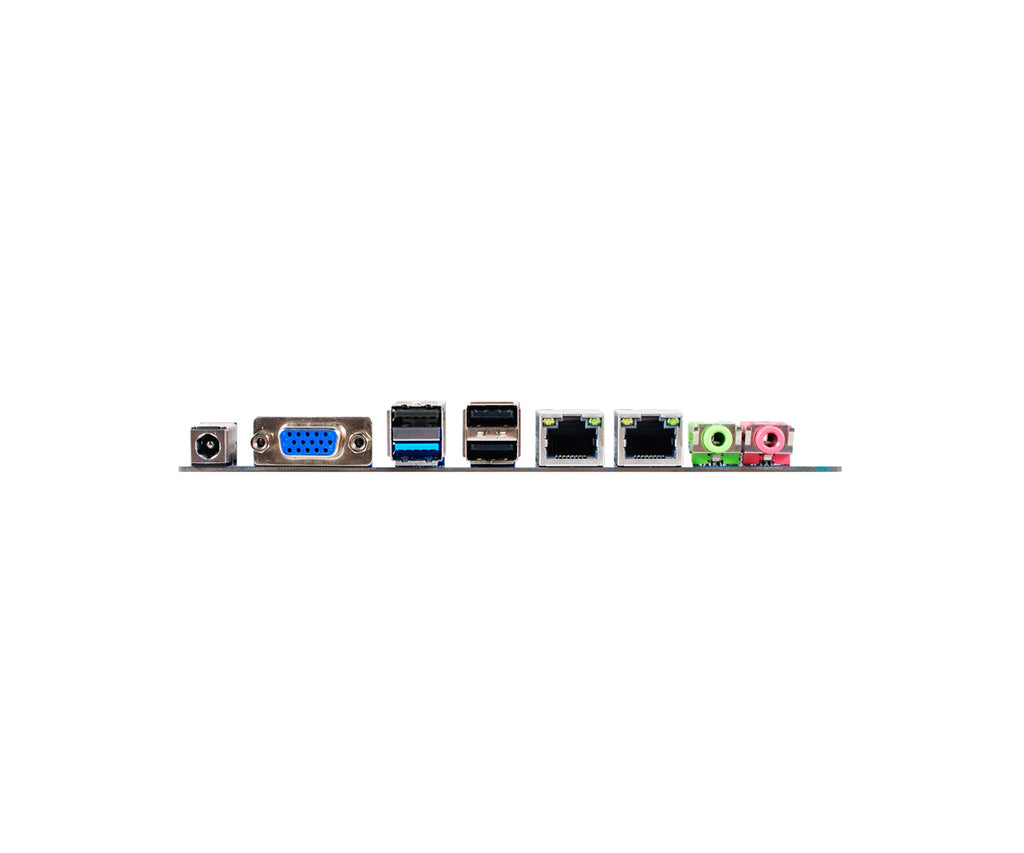

Rear I/O	1 x 12V DC-IN 1 x VGA 3 x USB 2.0 1 x USB 3.0 2 x RJ45 GbE LAN 2 x Audio I/O (No Function)
Onboard I/O Headers	3 x USB 2.0 headers (Supports 6 ports) 1 x CPU/Chassis Fan Connector 2 x COM headers (RS232/422/485 and TTL) 10 x COM headers (RS232) 1 x Parallel header 1 x PS/2 or KB header 1 x VGA header 1 x HDMI header 1 x 24-Bit Dual Channel LVDS header 1 x GPIO header 1 x Speaker header (No Function) 1 x Front Panel header 1 x SIM Card socket
OS Support	Windows 10
Form Factor	Thin Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 85°C (-4°F to 185°F)
Warranty	1-Year Manufacturer's Limited Warranty
