Manufacturer | NVIDIA |
Model Number | Jetson Nano Developer Kit |
CPU | ARM Cortex-A57 Quad Core Processor 1.43 GHz |
Memory | 4GB LPDDR4 Memory 64-bit 25.6 GB/s |
Video | Encoder: 4K @ 30Hz (H.264/H.265) Decoder: 4K @ 60Hz (H.264/H2.65) |
Storage Technology | 16GB eMMC 5.1 Flash Storage microSD slot |
Connectivity | 1 x Gigabit Ethernet |
Expansion Slots | 1 x M.2 (Key E) 1 x 30-pin GPIO Header I2C, I2S, SPI, UART |
Power | Micro-USB 5V 2A DC Power Adapter 5V 4A |

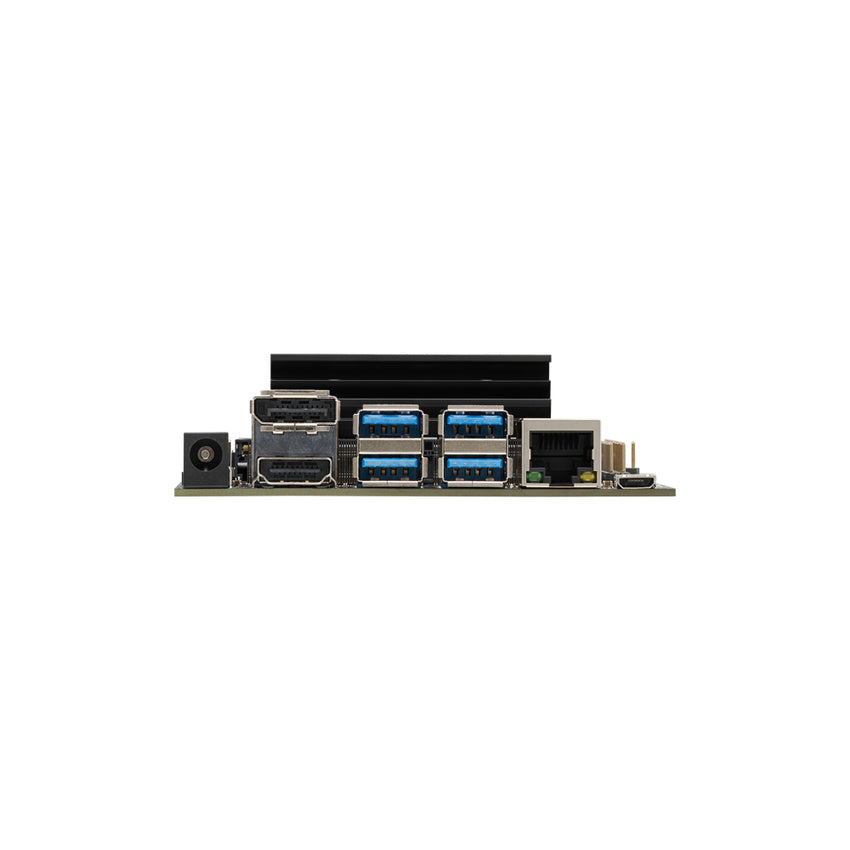

Rear I/O | 1 x DC-IN 1 x DisplayPort 1 x HDMI 4 x USB 3.0 Type A 1 x RJ45 GbE LAN 1 x USB 2.0 Micro-B |
Onboard I/O Headers | 1 x MIPI-CSI Camera Connector 1 x Fan Connector 1 x PoE Connector |
Dimensions | 3.94" x 3.15" x 1.14" (in inches, approximate) 100 x 80 x 29mm |
Warranty | 1-Year Manufacturer's Limited Warranty |
