| Jetway JBC400P591-3150D-B Intel Braswell N3150 Pico-ITX Fanless PC w/ 4GB DDR3 Memory | |
| Manufacturer | Jetway |
| Part Number | HBJC400P591-315DB |
| Model Number | JBC400P591-3150D-B |
| CPU | Intel Celeron N3150 Quad Core Processor 1.60 - 2.08 GHz 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit |
| Chipset | SoC |
| Memory | Onboard 4GB DDR3L-1600 Memory |
| Video | Intel HD Graphics 320 - 640 MHz DisplayPort Max Resolution: 3840x2160@30Hz |
| Audio | Realtek ALC662 Audio |
| Drive Support | 1 x M.2 Slot (M key, Type 2242 SATA SSD only) |
| Connectivity | 1 x Intel i211AT PCI-E Gigabit LAN |
| Expansion Slots | 1 x Mini PCI-E slot |
| Power | 12V DC-IN Locking Barrel Connector (2.5mm/5.5mm) 36W 12V Level5 AC-DC Adater |

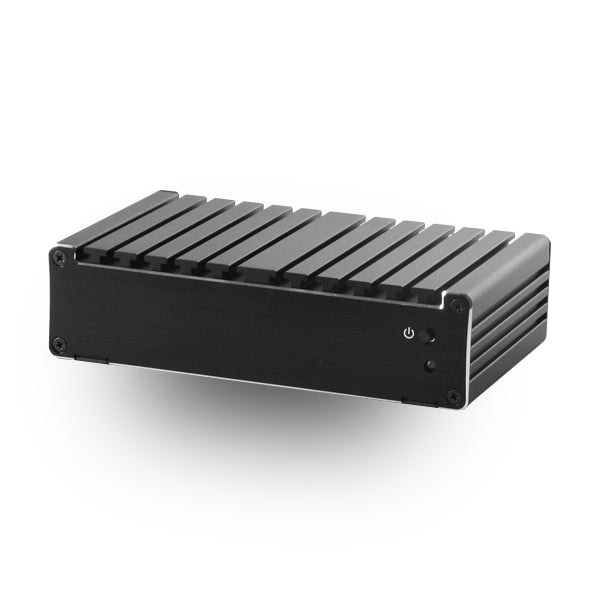

| Front Panel I/O | 1 x Power Button 1 x Power LED |

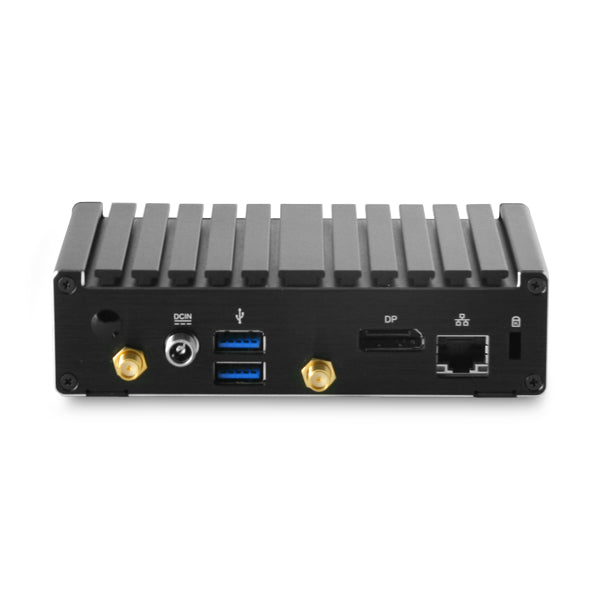

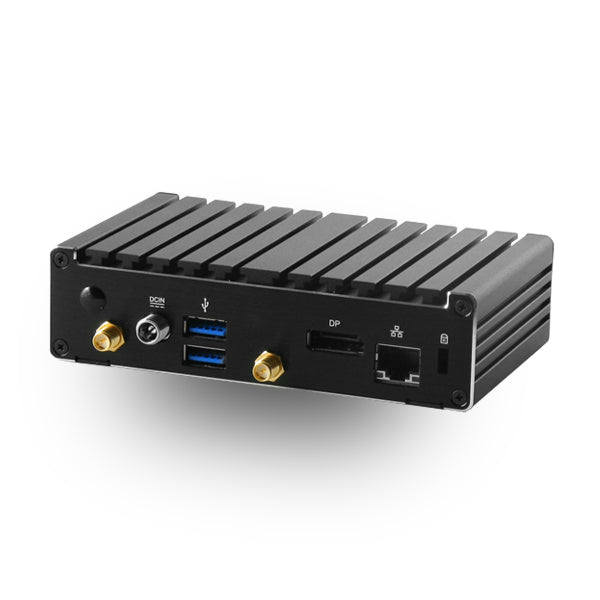

| Rear Panel I/O | 2 x Antenna Connector 1 x 12V Locking DC-IN 2 x USB 3.0 1 x DisplayPort 1 x RJ45 1 x Kensington slot |
| Case Dimensions | 129mm x 78.4mm x 34mm 5.07" x 3.09" x 1.34" |
| BIOS | 64Mb AMI Flash ROM |
| Warranty | 1-Year Manufacturer's Limited Warranty |
| Compliance | CE, FCC, RoHS, ErP/EuP |
| Environmental | Operating Temperature: 0 ~ 40 C with air flow Storage Temperature: -20 ~ 80 C |

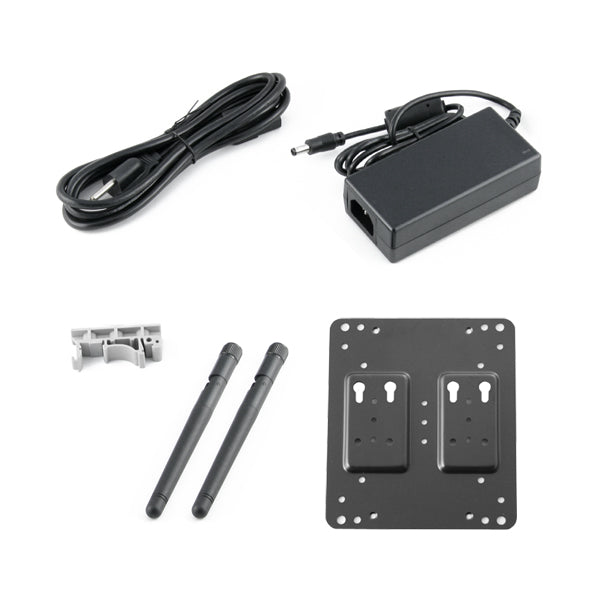

| Included in Box | Jetway JBC400P591W-3150D-B Wall/Din rail mount bracket Din rail clips 36W 12V AC-DC Adapater Power Cord 2 x Antennas |
PRODUCT ID: JBC400P591-3150D-B
