Manufacturer |
Jetway |
Part Number |
HBJC390F541SAA19B |
Model Number |
JBC390F541SAA |
CPU |
Intel Celeron J1900 Quad Core Processor 2 - 2.42 GHz 4 core / 4 Threads 10W TDP, 22nm, 2MB Cache, 64-bit |
Chipset |
SoC |
Memory |
1 x 204-pin DDR3L SODIMM Maximum 8GB capacity 1333MHz Minimum Low Voltage 1.35V required |
Video |
Intel HD Graphics 688 MHz - 854 MHz |
Audio |
C-Media HS-100B USB Audio |
Storage |
1 x 2.5" SATA2 3Gb/s drive 1 x mSATA slot |
Connectivity |
10 x Intel i211AT GbE 10/100/1000 (Gigabit) |
Expansion Slots |
1 x Mini PCI-E (Full Size) 1 x SIM Slot |

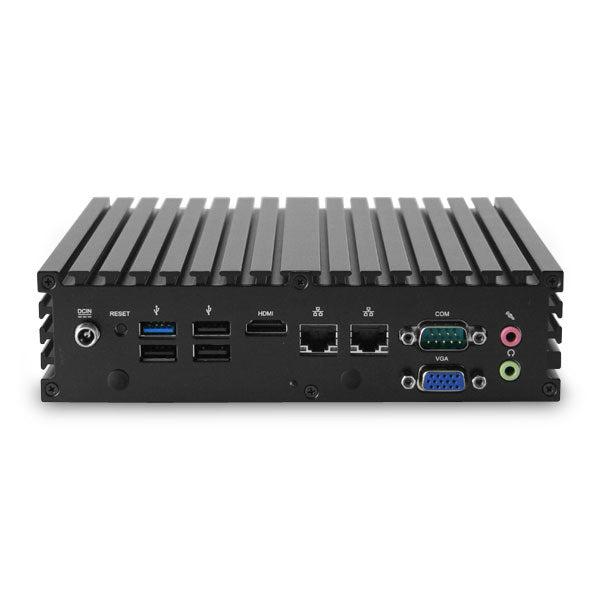

Rear Panel I/O |
1 x 12V DC-IN 1 x Reset button 1 x USB 3.0 3 x USB 2.0 1 x HDMI 2 x RJ45 GbE LAN 1 x COM (RS232/422/485) 1 x VGA 2 x Audio I/O 2 x Cutout for Antenna Jack |

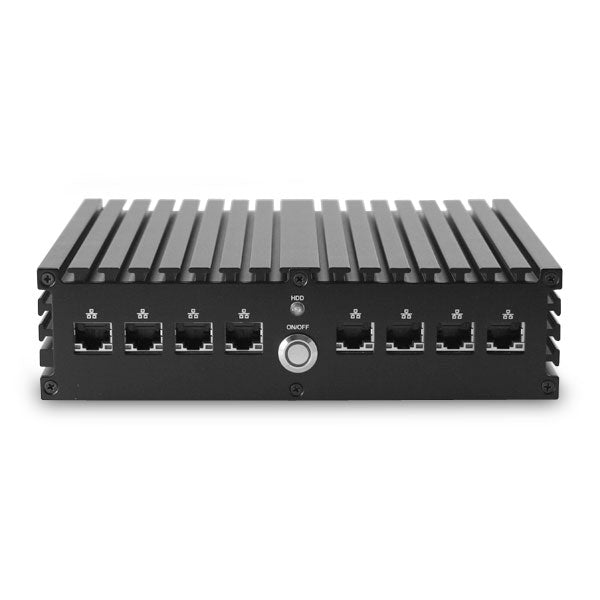

Front Panel I/O |
1 x HDD LED 1 x Power button 8 x RJ45 GbE LAN |
Drive Support |
1 x 2.5" SATA Drive 1 x mSATA |
Power Supply |
60W 12V Universal AC-DC Adapter (110/220V) |
Case Dimensions |
165mm x 185mm x 48mm 6.50" x 7.28" x 1.89" (in inches) |
Mounting |
Wall Mounting Kit |
Warranty |
1-Year Limited Warranty |
