Jetway JBC377F531W-3150-B Intel Celeron N3160 Networking Mini PC wtih Dual Intel GbE & 4GB DDR3L
Manufacturer	Jetway
Part Number	HBJC377F531W-3160-B
Model Number	JBC377F531W-3160-B
CPU	Intel Celeron N3160 Quad Core 1.6 - 2.24 GHz 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit
Chipset	SoC
Memory	Onboard 4GB DDR3L-1333 Memory Tip: No Memory Slots, Memory can not be expanded.
Video	Intel HD Graphics 688 - 854 MHz HDMI Max Resolution: 3840x2160@30Hz DisplayPort Max Resolution: 3840x2160@30Hz
Drive Support	1 x SATA3 6.0 Gb/s (Maximum height:9.5mm) 1 x M.2 slot (M-key, 2242 SATA only)
Connectivity	2 x Wireless 802.11n and Blutooth 4.0
Expansion Slots	1 x Mini PCI-E (Occupied by WiFi Adapter)
Power	9 ~ 36V DC-IN 60W 12V Locking, Universal AC-DC Adapater (110 ~ 240V @ 50/60Hz)

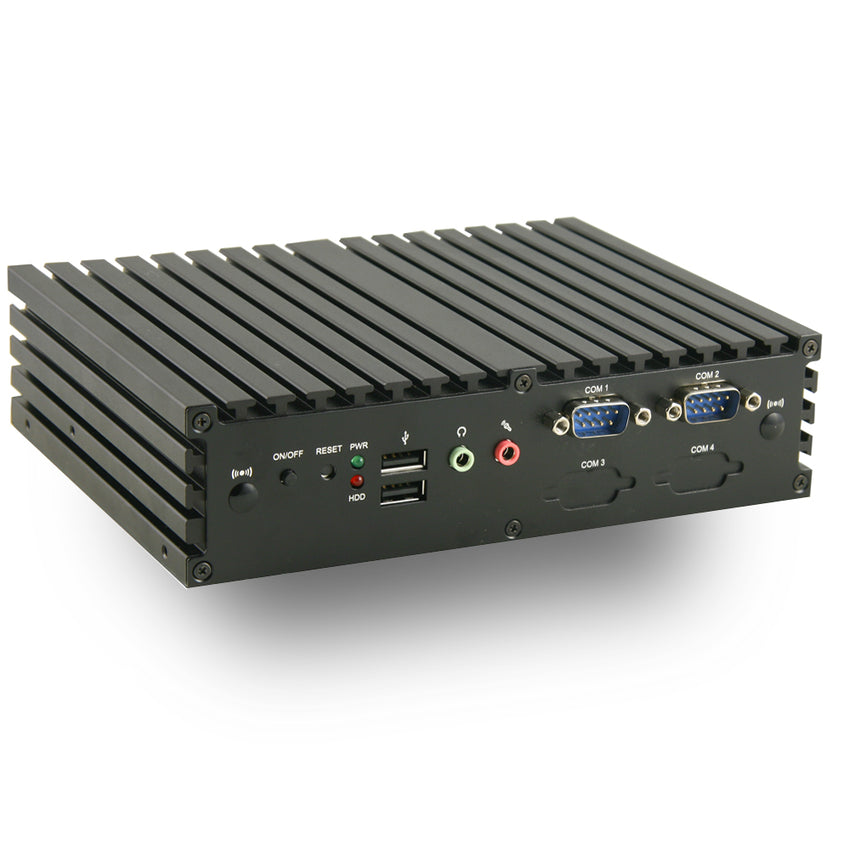

Front Panel I/O	1 x Power Button 1 x Reset Button 2 x Status LED 2 x USB 2.0 1 x MIC IN 1 x Stereo Audio OUT 1 x Serial (RS232/422/485) 1 x Serial (RS232)

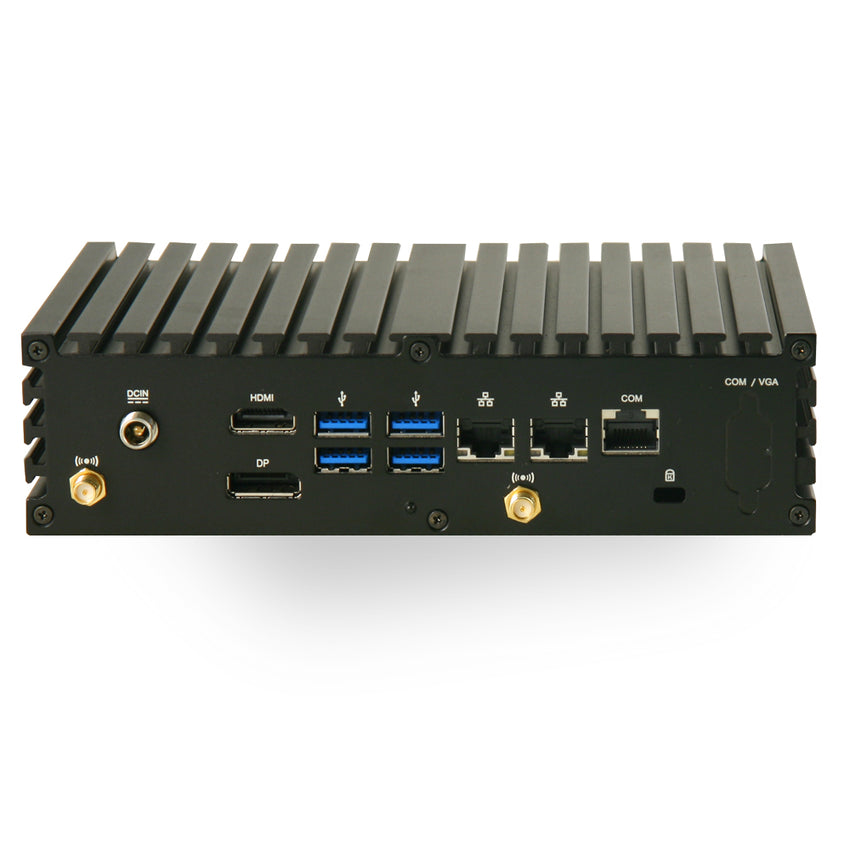

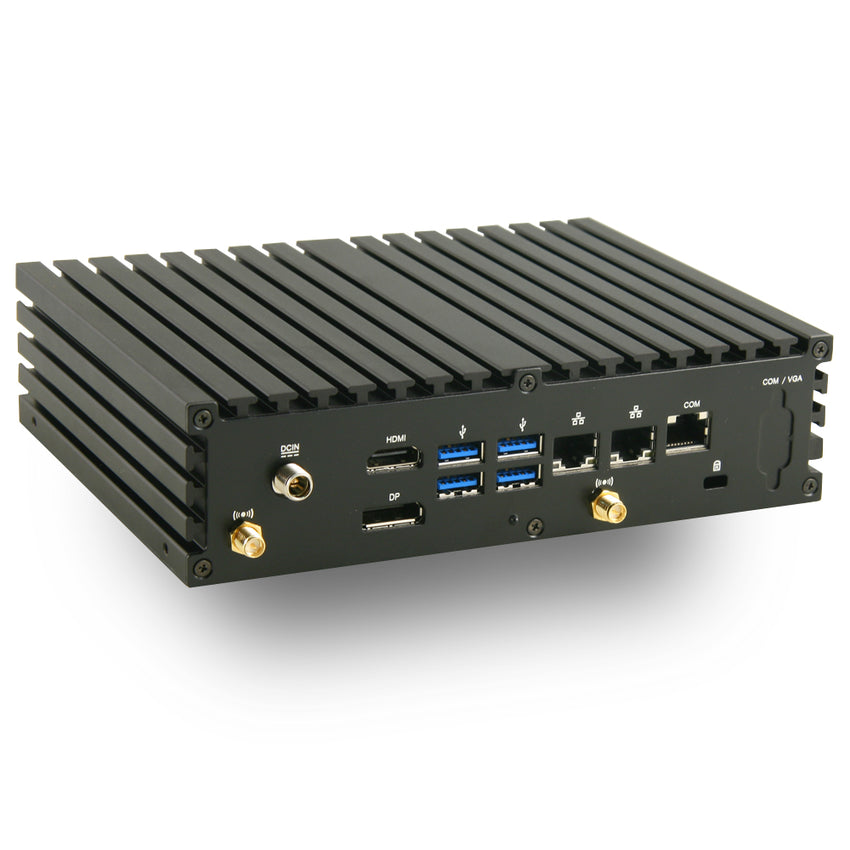

Rear Panel I/O	2 x Wireless Antenna Connectors 1 x 9 ~ 36V DC-IN 1 x HDMI 1 x DisplatPort 4 x USB 3.0 2 x RJ45 (GbE) 1 x RJ45(Serial RS232) 1 x Kensington Security Slot
Case Dimensions	185mm x 142mm x 48mm 7.28" x 5.59" x 1.89"(in inches)
BIOS	AMI 64MB SMT Flash ROM
Warranty	1-Year Manufacturer's Limited Warranty
Compliance	CE, FCC, RoHS, ErP Ready
Environmental	Operating Temperature: 0 ~ 40 C Storage Temperature: -10 ~ 60 C

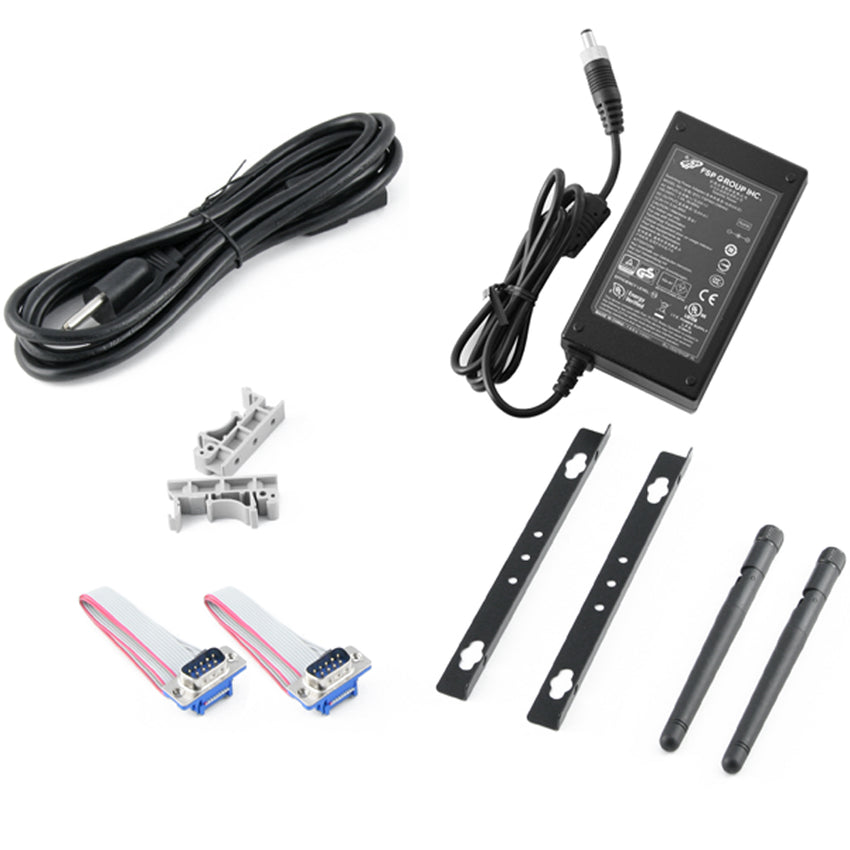

Included in Box	Jetway JBC377F531W-3150-B Mini PC 60W 12V Locking, Universal AC-DC Adapter AC Power Cord (NEMA 5-15P) Wall-mount kit DIN rail Clips 2 x Antenna Manual and Driver Disk
