Jetway JBC375F3AW-2930-B Intel Celeron N2930 Barebone Kit
Model Number	JBC375F3AW-2930-B
Motherboard	Jetway NF3A-2930
CPU	Intel Celeron N2930 Quad Core 1.83 - 2.16GHz 4 Cores / 4 Threads 64-bit 7.5W Maximum TDP 2MB Cache
Chipset	SoC
Memory	2 x 204-pin DDR3L SODIMM Maximum 8GB capacity 1333MHz Minimum Non-ECC, un-buffered Low voltage required (1.35V)
Video	Intel HD Graphics 313 - 854MHz Supports Dual Display via DVI-I and LVDS DVI-to-VGA adapter included
Audio	Realtek ALC662 HD Audio
Storage	1 x SATA 3.0Gb/s 1 x mSATA (occupied by Wifi Adapter)
Connectivity	2 x Realtek RTL8111G Gigabit LAN 10/100/1000 802.11 b/g/n Supports WOL
Expansion Slots	1 x Mini PCIe Tip: Mini PCIe is occupied by Wifi Adapter

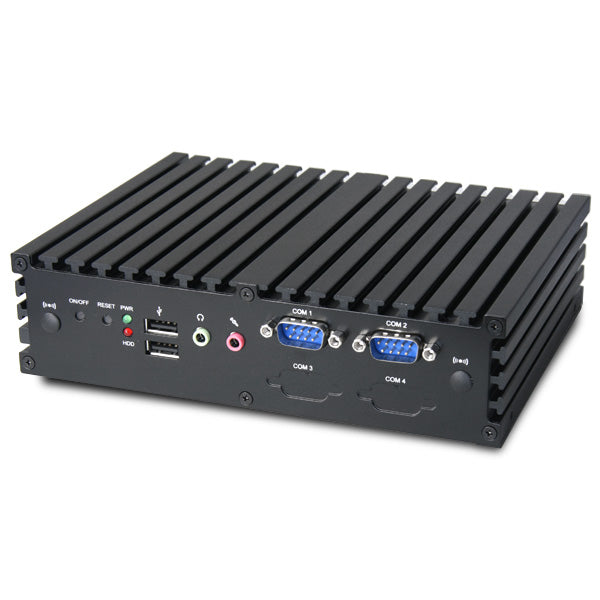

Front Panel I/O	2 x USB 2.0 1 x Line Out Jack 1 x Microphone Jack 2 x RS232 Serial Ports

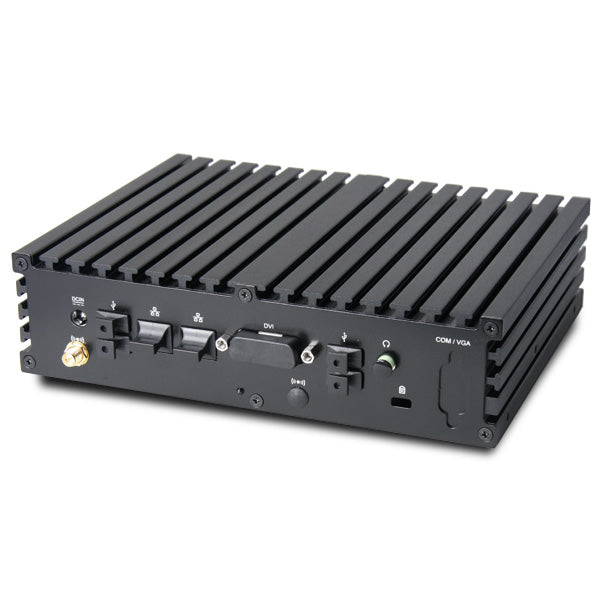

Back Panel I/O	1 x USB 3.0 3 x USB 2.0 2 x RJ-45 ports 1 x DVI-I port 1 x SMA Connector for WiFi Antenna 1 x Kensington Lock Hole
Drive Support	1 x 2.5" SATA2 3Gb/s 1 x Shared mSATA/mini-PCI Express Combo slot

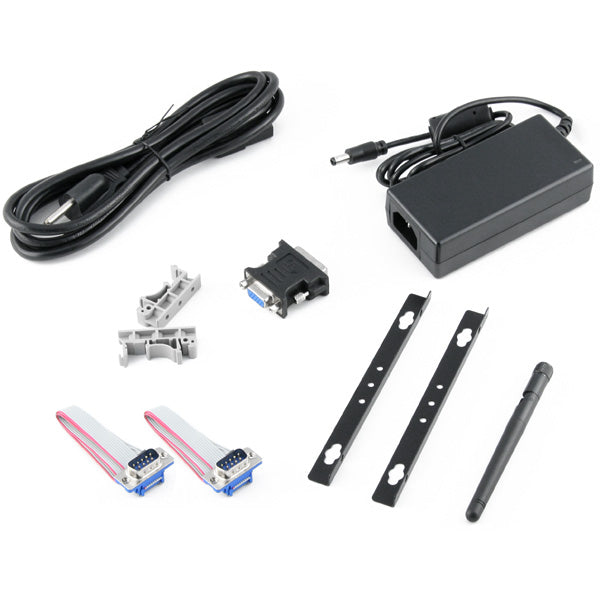

Power Supply	60W 12V Universal AC-DC Adapter (90-240V)
Case Dimensions	180mm x 142mm x 48mm 7.09" x 5.59" x 1.89" (in inches; approximate)
Mounting	Wall-mounting Kits
Compliance	CE, FCC, RoHS, ErP Ready
Warranty	1 Year limited Warranty on Parts and Labor
