Manufacturer	ASRock Industrial
Part Number	IMB-X1714
CPU	Supports Intel 14th/13th/12th Gen Core Processors, Raptor Lake-S Socket LGA 1700 Maximum 125W TDP
Chipset	Intel W680 TPM 2.0 Onboard IC
Memory	4 x DDR5 DIMM slots Maximum 192GB Capacity ECC/Non-ECC UDIMM 4400/5600 MHz Note: Actual memory frequency depends on the CPU types and DRAM modules
Video	Intel UHD Graphics HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4a Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1200@60Hz Supports Triple Displays
Audio	Realtek ALC897, High Definition Audio. Mic-in, Line-out
Storage Technology	8 x SATA3 6Gb/s Connectors 1 x M.2 25110/22110/2280/2242 slot (PCI-E 4.0 x4) 1 x M.2 25110/22110/2280/2242 slot (PCI-E 3.0 x4) Intel VMD RAID 0/1/5/10 Note: Supported by Identical Interface (PCIE or SATA)
Connectivity	1 x Intel I226LM 2.5GbE LAN (Supports vPro) 1 x Intel I226V 2.5GbE LAN (Support PoE, 54V IEEE802.3af/at, Imax 0.6A) 1 x Intel I226V 2.5GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot or 2 x PCI-E 5.0 x16 (x8/x8) slots 2 x PCI-E 4.0 x4 slots 3 x PCI-E 3.0 x1 slots Note: If using PCIE2 slot, M.2 Key M2(M2_M2) is limited to install. 1 x M.2 3042/3052 slot (PCIe x1, USB 3.2 Gen1, USB 2.0, SIM) 1 x SIM Socket (Connected to M.2 Key B) 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi)
Power	1 x 24-Pin ATX Power Connector 1 x 12V 8-Pin ATX Power Connector for CPU

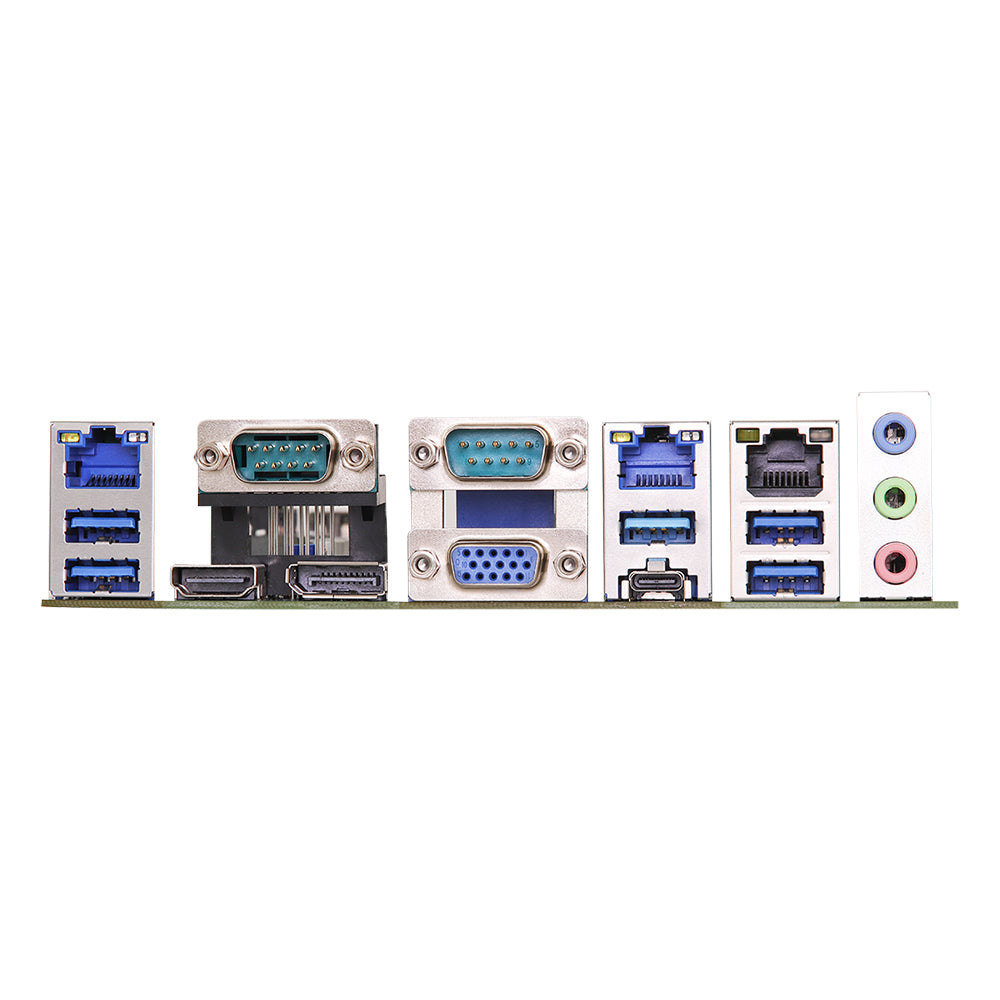

Rear I/O	1 x RJ45 2.5GbE LAN (Supports vPro) 5 x USB 3.2 (Gen2) 2 x COM (RS232/422/485) 1 x HDMI 1 x DisplayPort 1 x VGA 1 x RJ45 2.5GbE LAN (Supports PoE) 1 x USB 3.2 (Gen2x2) Type-C, 5V/3A 1 x RJ45 2.5GbE LAN 3 x Audio I/O
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports 2 ports) 1 x USB 2.0 header (Supports 2 ports) 2 x USB 2.0 Type-A Vertical Connectors 4 x COM header (RS232) 1 x Parallel header (Shared with GPIO) 1 x GPIO (8 x GPI, 8 x GPO) 1 x PS/2 header 1 x Thunderbolt header
Form Factor	ATX 12" x 9.6" (in inches) 305 x 244 x 36mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Warranty	1-Year Manufacturer's Limited Warranty
