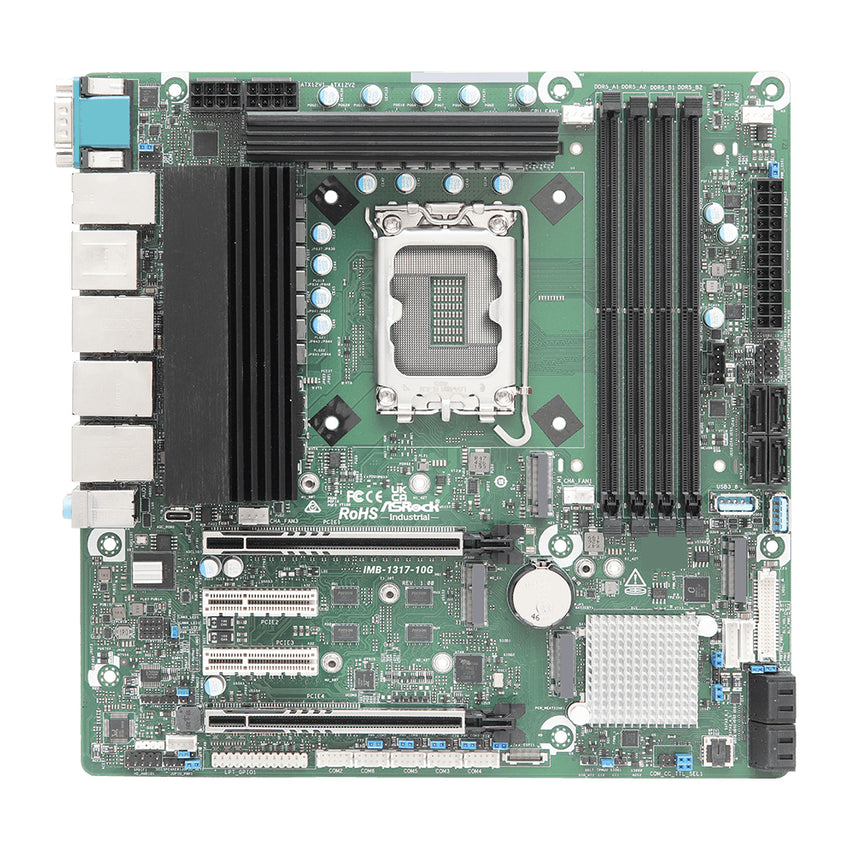

| Manufacturer | ASRock Industrial |
| Part Number | IMB-X1317-10G |
| CPU |
Supports Intel Core Ultra Processor, Arrow Lake-S Socket LGA 1851 Supports up to 125W TDP |
| Chipset | Intel W880 |
| Memory |
4 x DDR5 DIMM slots Maximum 192GB Capacity (48GB per DIMM) ECC/Non-ECC 6400/5600 MHz |
| Video |
Intel Xe LPG Graphics (CPU Dependent) HDMI 2.1 TMDS Max Resolution: 7680x4320@60Hz DisplayPort 2.1/1.4a Max Resolution: 4096x2160@60Hz eDP Max Resolution: 1920x1200@60Hz ,br> Supports Quad Display |
| Audio | Realtek ALC897 Audio Codec |
| Storage Technology |
8 x SATA3 6Gb/s Connectors 1 x M.2 2280/2242 slot (PCI-E 5.0 x4) 1 x M.2 2280/2242 slot (PCI-E 4.0 x4) Intel VMD RAID 0/1/5/10 (Support by identical interface) |
| Connectivity |
1 x Marvell AQC113 10G LAN 1 x Intel I226V 2.5G LAN 1 x Intel I219LM GbE LAN (Supports vPro) 2 x Intel I210AT GbE LAN |
| Expansion Slots |
1 x PCI-E 5.0 x16 slot or 2 x PCI-E 5.0 x16 (x8/x8 Signal) 2 x PCI-E 4.0 x4 slots |
| Power |
1 x 24-Pin ATX Power Connector 2 x 12V 8-Pin ATX Power Connector for CPU |
| Rear I/O |
1 x Serial COM (RS232/422/485) 1 x DisplayPort 2 x RJ45 GbE LAN 7 x USB 3.2 (Gen2) 1 x HDMI 2.1 TMDS 1 x RJ45 GbE LAN (Supports vPro) 1 x RJ45 2.5GbE LAN 1 x USB4/Thunderbolt 4 (5V/3A, Supports DP 2.1) 1 x RJ45 10G LAN 3 x Audio I/O |
| Onboard I/O Headers |
1 x USB 2.0 header (2mm pitch header) 2 x USB 3.2 (Gen2) Vertical Connector (Type-A) 1 x USB4/Thunderbolt 4 Veritcal Connector (5V/3A, Supports DP 2.1 display output) 1 x COM header (RS232/422/485) 1 x COM header (RS232/TTl 5V/ccTalk) (Switch by Jumper) 3 x COM header (RS232) 1 x Parallel header (Shared with GPIO) 1 x 16-bit GPIO (8 x GPI, 8 x GPO) (Shared with LPT header) 1 x LVDS Connector (LVDS/eDP signal, switch by BIOS) 1 x Speaker header 1 x Thunderbolt header |
| TPM | Onboard TPM 2.0 IC |
| OS Support |
Windows 11 |
| Form Factor |
Micro ATX 9.6" x 9.6" (in inches) 244 x 244 x 46.1mm |
| Environmental |
Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: IMB-X1317-10G
