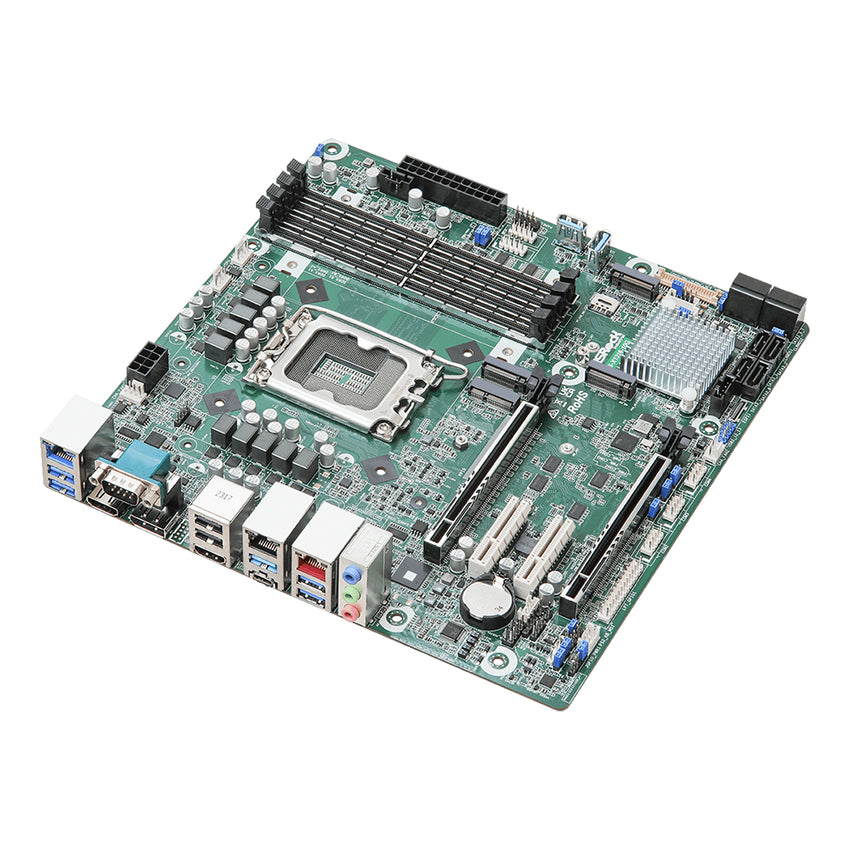

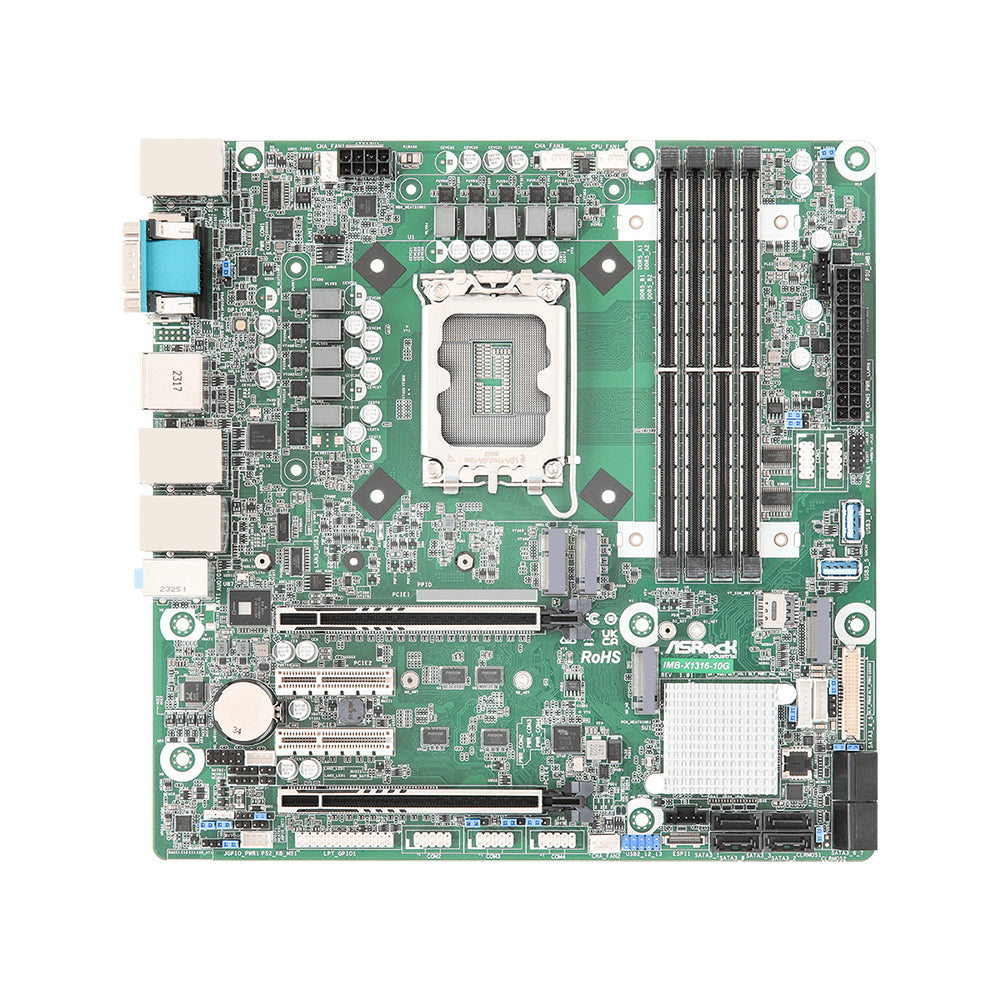

Manufacturer | ASRock Industrial |
Part Number | IMB-X1316-10G |
CPU |
Supports 14th Gen Intel Core Processors (Raptor Lake-S) Supports Up to 125W Socket LGA 1700 |
Chipset | Intel W680 |
Memory |
4 x DDR5 DIMM slots Maximum 192GB Capacity Supports ECC/Non-ECC DIMM 5600/4400 MHz |
Video |
Intel UHD Graphics (CPU Dependent) HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4a Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Quad Displays |
Audio |
Realtek ALC897 HD Audio |
Storage Technology |
8 x SATA3 Connectors 1 x M.2 22110/2280/2242 slot (PCI-E 4.0 x4, M Key) 1 x M.2 2280/2242 slot (PCI-E 3.0 x4, M Key) Supports Intel VMD RAID 0/1/5/10 by Identical Interface |
Connectivity |
1 x Intel I226LM 2.5GbE LAN (Supports vPro) 1 x Intel I210AT GbE LAN 1 x Marvell AQC113 10G LAN |
Expansion Slots |
1 x PCI-E 5.0 x16 slot or 2 x PCI-E 5.0 x16 slots (x8/x8) 2x PCI-E 4.0 x4 slots Note: 1 x PCI-E 4.0 x4 slot shared space with M.2 slot 1 x M.2 2230 slot (E Key, PCIe x1, USB 2.0) 1 x M.2 3042/3052 slot (B Key, PCIe x1, USB 3.2 Gen1, USB 2.0, and SIM) 1 x SIM Socket |
Power |
1 x 24-Pin ATX Power Connector 1 x 8-Pin 12V ATX Power Connector |

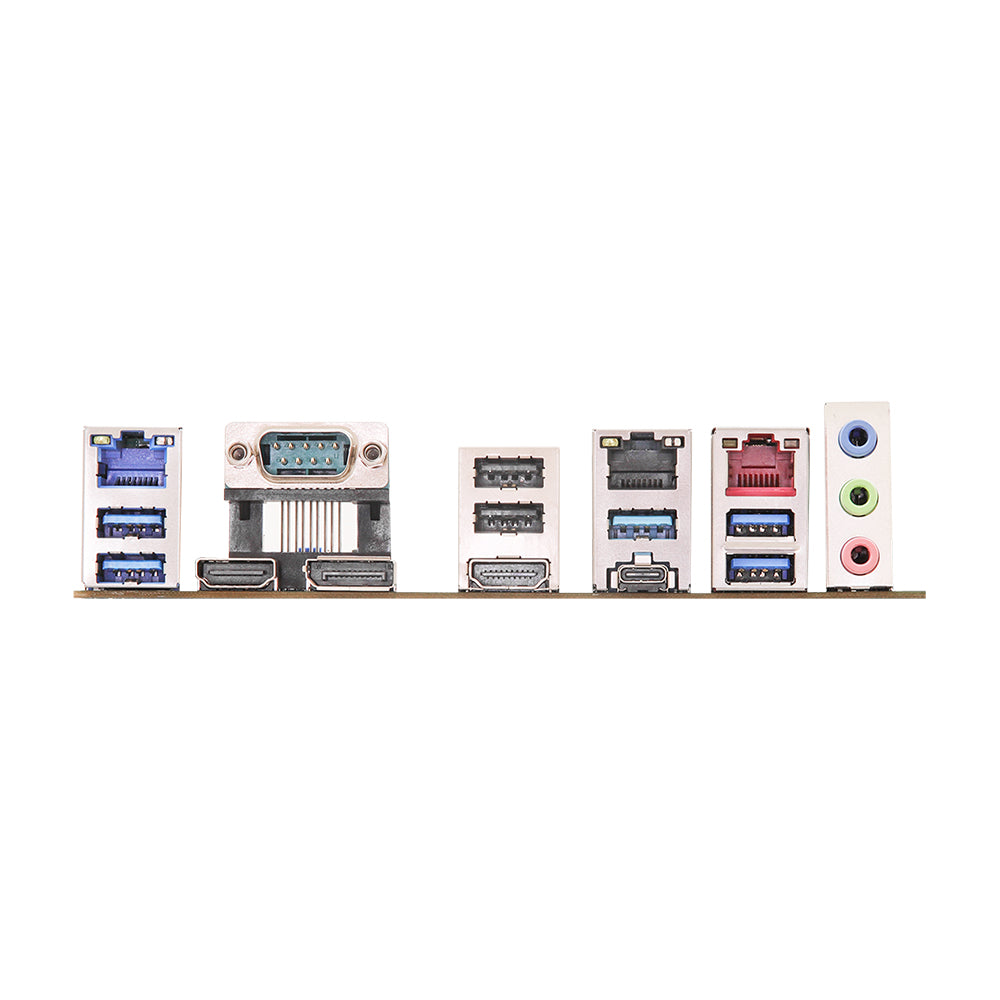

Rear I/O |
1 x RJ45 2.5GbE LAN (Support vPro) 5 x USB 3.2 (Gen2) 1 x COM (RS232/422/485) 2 x HDMI 1 x DisplayPort 2 x USB 2.0 1 x RJ45 GbE LAN 1 x USB 3.2 (Gen2x2) Type-C (5V/3A) 1 x RJ45 10G LAN 3 x Audio I/O |
Onboard I/O Headers |
2 x USB 3.2 (Gen2) Vertical Connectors 1 x COM (RS232/422/485) 4 x COM (RS232) 1 x Parallel Port (Shared with GPIO) 1 x GPIO header (8 x GPI, 8 x GPO) (shared with LPT header) 1 x LVDS 1 x Speaker header 1 x PS/2 header 1 x Thunderbolt header (PCIE3 support) |
TPM |
TPM 2.0 onboard IC |
Form Factor |
Micro ATX 9.6" x 9.6" (in inches) 244 x 244 x 36mm |
Environmental |
Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing) |
Warranty | 1-Year Manufacturer's Limited Warranty |
