Manufacturer	ASRock Industrial
Part Number	IMB-X1313
CPU	Supports Intel 10th Gen Core Processors, Comet Lake-S Socket LGA 1200 Maximum 125W TDP
Chipset	Intel W480E Onboard TPM 2.0
Memory	4 x DDR4 DIMM slots Core i9/i7: 2933 MHz Core i5/i3: 2666 MHz Pentium/Celeron: 2400 MHz Maximum 128GB Capacity ECC Supported by CPU
Video	Intel UHD Graphics HDMI 2.0a Max Resolution: 4096x2160@60Hz DisplayPort 1.2 Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1200@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 4096x2304@60Hz Supports Triple Displays
Audio	Realtek ALC887/ALC 897 HD Audio
Storage Technology	8 x SATA3 Connectors Note: Only SATA 1-6 supports RAID function 1 x M.2 2280/2260/2242 slot (PCIe x4, SATA) Note: shared with SATA_1 and SATA_2 ports. PCIe mode disables both SATA Connectors. SATA mode disables SATA_1 connector. Supports Intel SATA RAID 0/1/5/10
Connectivity	1 x Intel I225LM/I225V 2.5GbE LAN 1 x I219LM Gbe LAN (Supports AMT/vPro)
Expansion Slots	2 x PCI-E 3.0 x16 slots (x16 or x8/x8) 2 x PCI-E 3.0 x4 slot 1 x M.2 3042/3052 slot (PCIe x1, USB 3.2 Gen1, USB 2.0, and SIM) 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi)
Power	24-Pin ATX Power Connector 8-Pin 12V ATX Power Connector for CPU AT/ATX Support

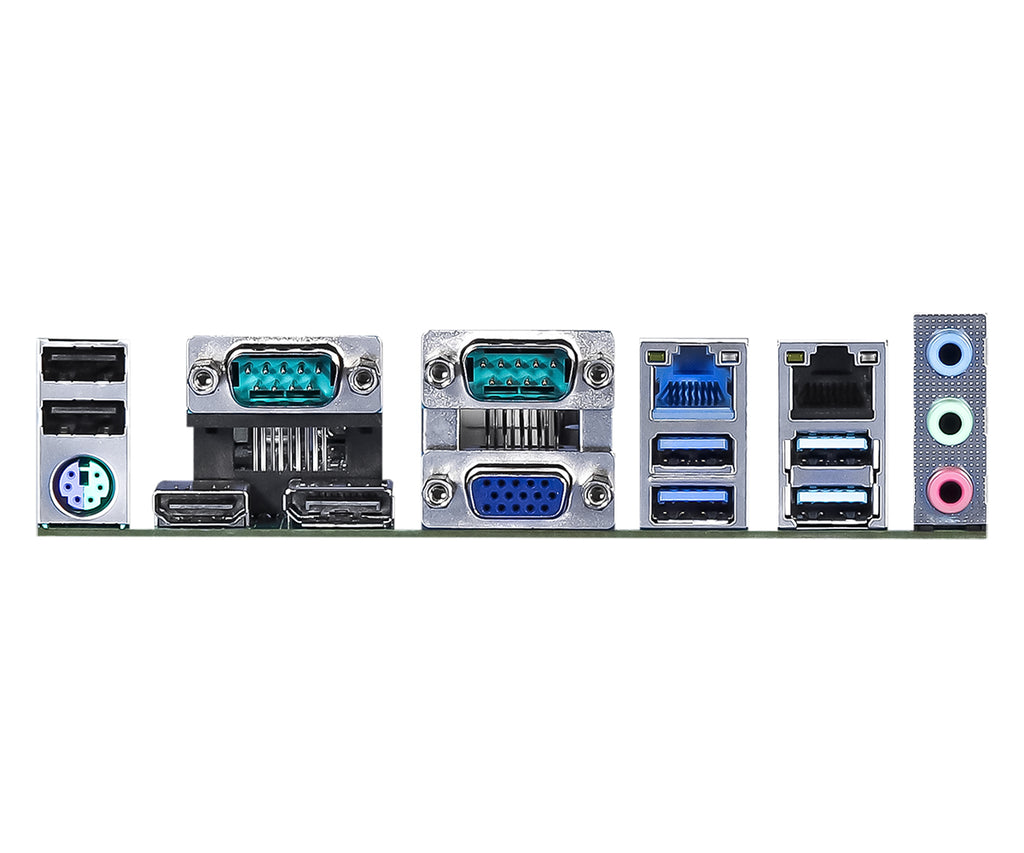

Rear I/O	2 x USB 2.0 1 x PS/2 2 x COM (RS232/422/485) 1 x HDMI 1 x DisplayPort 1 x VGA 1 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen2) 1 x RJ45 GbE LAN 3 x Audio I/O
Onboard I/O Headers	2 x USB 3.2 (Gen1) headers (Supports 4 ports) 1 x USB 2.0 header (2.54mm pitch, Supports 2 ports) 4 x COM (RS232) 1 x Parallel header (Shared with GPIO) 1 x GPIO (8 x GPI, 8 x GPO, Shared with LPT header) 1 x LVDS header 1 x Speaker header
Form Factor	Micro ATX 244 x 244mm 9.6" x 9.6"
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Warranty	1-Year Manufacturer's Limited Warranty
