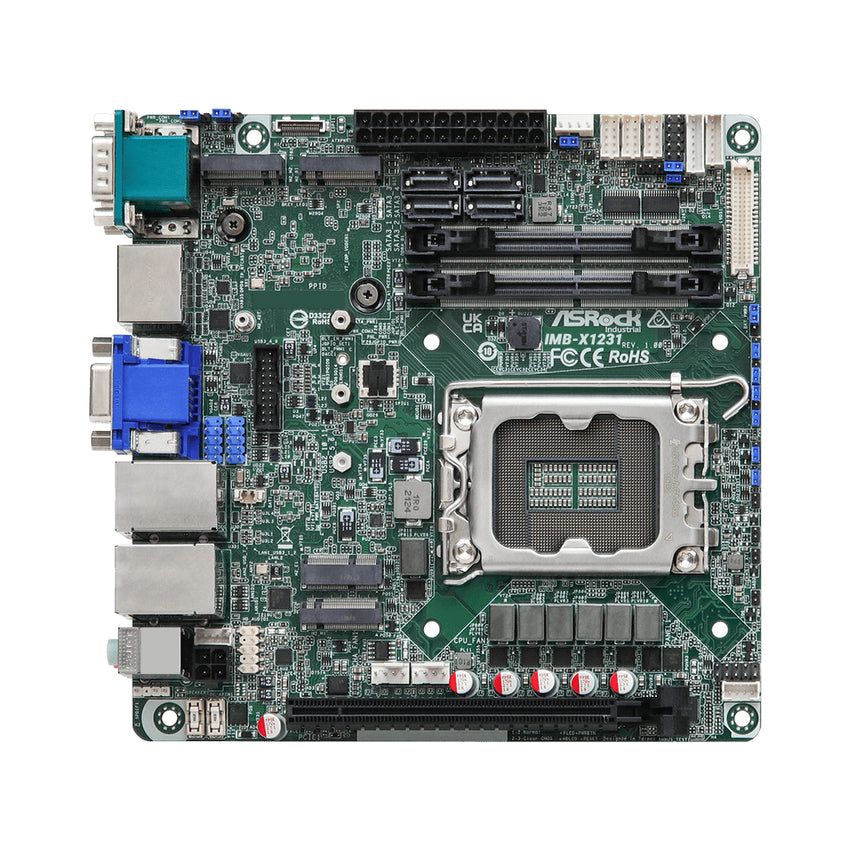

Manufacturer	ASRock Industrial
Part Number	IMB-X1231
CPU	Supports Intel 14th/13th/12th Gen Core Processor Socket LGA 1700 Supports up to 65W TDP
Chipset	Intel W680 TPM 2.0 onboard IC
Memory	2 x DDR4 SODIMM slots Maximum 128GB Capacity Supports ECC/non-ECC Dual Channel
Video	Intel UHD Graphics DisplayPort Max Resolution: 4096x2160@60Hz HDMI 2.0b Max Resolution: 4096x2160@60Hz eDP Max Resolution: 1920x1200@60Hz LVDS Max Resolution: 1920x1200@60Hz VGA Max Resolution: 1920x1200@60Hz Supports Quad Displays
Audio	Realtek ALC897 HD Audio
Storage Technology	1 x M.2 2280/2260/2242 slot (PCI-E 3.0 x4) 1 x M.2 2242 slot (PCI-E 4.0 x4 and SATA, Can support 4 SATA ports with M2X4-SATA-4P Module) 4 x SATA3 6Gb/s Connectors Supports Intel VMD RAID 0/1/5/10 Note: Supported by identical interface (PCIe or SATA)
Connectivity	1 x Intel I225-LM 2.5GbE LAN with vPro (Requires vPro Compatible CPU) 1 x I225-LM/I225-V 2.5GbE LAN
Expansion Slots	1 x PCI-E 4.0 x16 slot (Supports x8/x8) 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi, E Key) 1 x M.2 3042/3052 slot (PCIe x1, USB 3.2 Gen1, USB 2.0, B Key) 1 x SIM socket (Connect to M.2 B Key)
Power	1 x 24 Pin ATX Power Connector 1 x 4-Pin 12V ATX Power Connector or 12V DC-IN Co-Design AT/ATX Supported

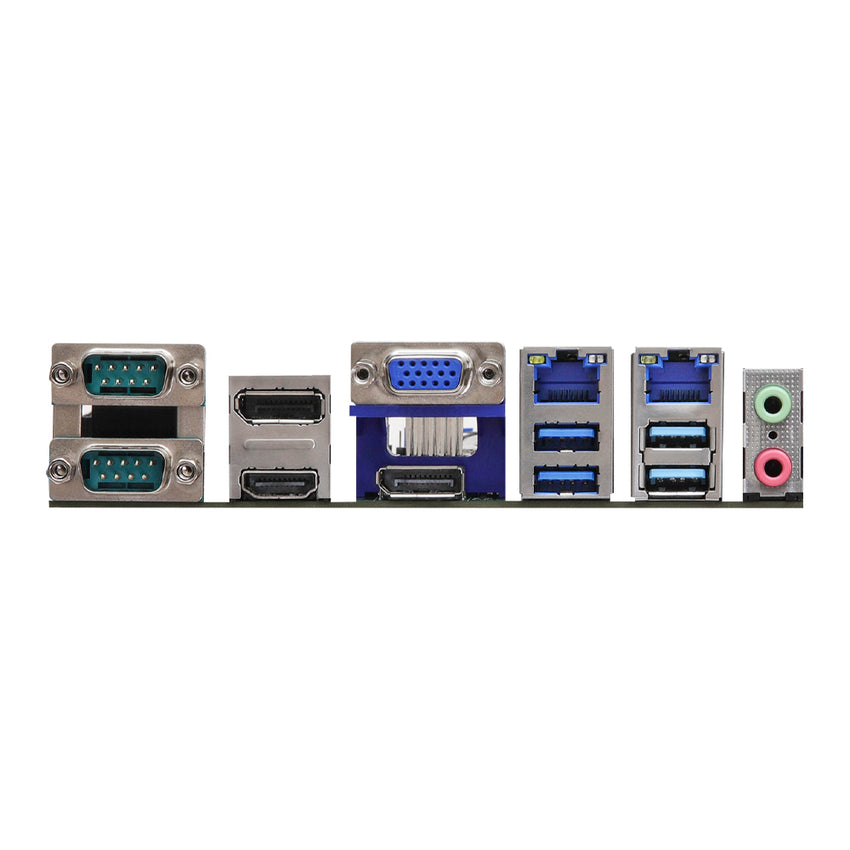

Rear I/O	2 x COM (RS232/422/485) 2 x DisplayPort 1 x HDMI 2.0b 1 x VGA 2 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen2) 2 x Audio I/O
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports up to 2 ports) 2 x USB 2.0 header (2.54mm pitch, Supports up to 4 ports) 1 x GPIO (4 x GPI, 4 x GPO) 1 x LVDS/eDP header 1 x Speaker header
Form Factor	Mini ITX 6.7" x 6.7" (in inches) 170 x 170mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% Storage Humidity: 5% to 90%
Warranty	1-Year Manufacturer's Limited Warranty
