Manufacturer	ASRock Industrial
Part Number	IMB-1317
CPU	Supports Intel Core Ultra Processor, Arrow Lake-S Socket LGA 1851 Supports up to 125W TDP
Chipset	Intel Q870
Memory	4 x DDR5 DIMM slots Maximum 192GB Capacity (48GB per DIMM) Non-ECC  6400/5600 MHz
Video	Intel Xe LPG Graphics (CPU Dependent) HDMI 2.1 TMDS Max Resolution: 7680x4320@60Hz DisplayPort 2.1/1.4a Max Resolution: 4096x2160@60Hz eDP Max Resolution: 1920x1200@60Hz  Supports Quad Display
Audio	Realtek ALC897 Audio Codec
Storage Technology	8 x SATA3 6Gb/s Connectors 1 x M.2 2280/2242 slot (PCI-E 5.0 x4) 1 x M.2 2280/2242 slot (PCI-E 4.0 x4) Intel VMD RAID 0/1/5/10 (Support by identical interface)
Connectivity	1 x Intel I226V 2.5G LAN  1 x Intel I219LM GbE LAN (Supports vPro)
Expansion Slots	1 x PCI-E 5.0 x16 slot or 2 x PCI-E 5.0 x16 (x8/x8 Signal) 2 x PCI-E 4.0 x4 slots
Power	1 x 24-Pin ATX Power Connector 2 x 12V 8-Pin ATX Power Connector for CPU

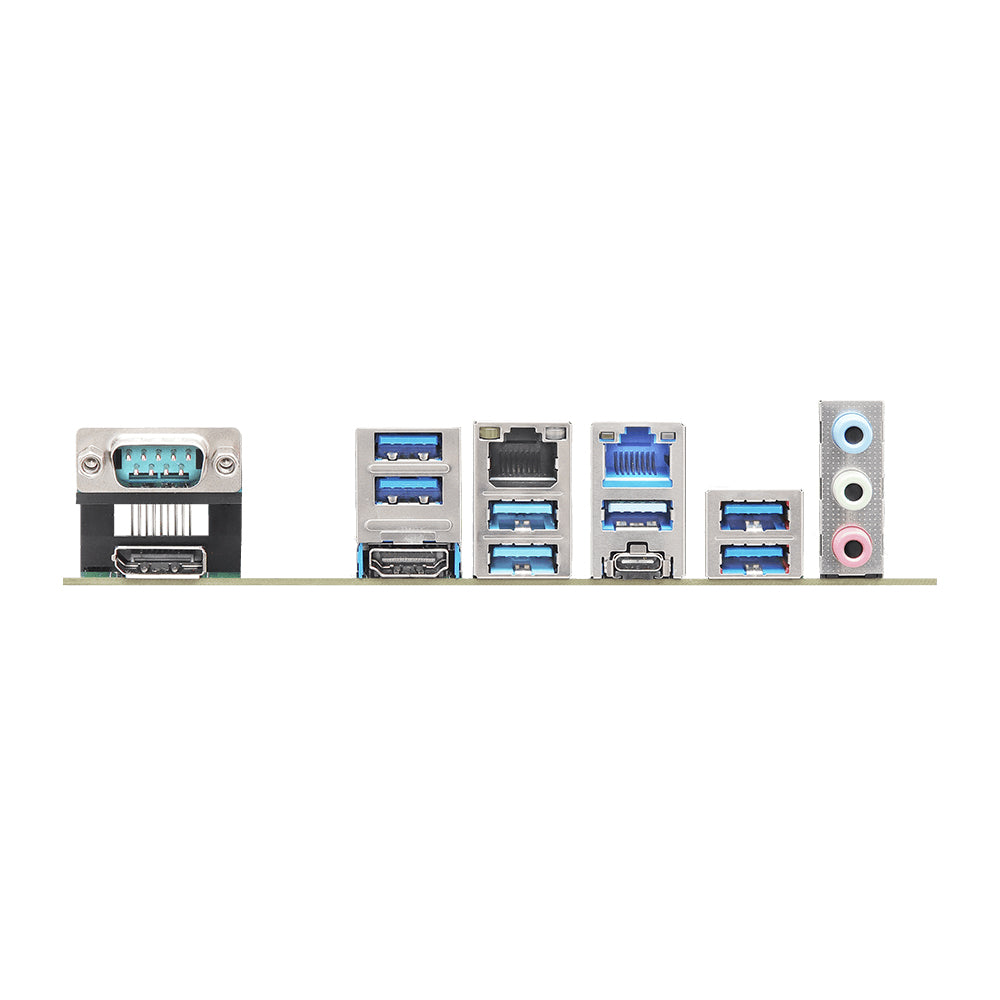

Rear I/O	1 x Serial COM (RS232/422/485) 1 x DisplayPort 7 x USB 3.2 (Gen2) 1 x HDMI 2.1 TMDS 1 x RJ45 GbE LAN (Supports vPro) 1 x RJ45 2.5GbE LAN 1 x USB4/Thunderbolt 4 (5V/3A, Supports DP 2.1) 3 x Audio I/O
Onboard I/O Headers	1 x USB 2.0 header (2mm pitch header) 2 x USB 3.2 (Gen2) Vertical Connector (Type-A) 1 x USB4/Thunderbolt 4 Veritcal Connector (5V/3A, Supports DP 2.1 display output) 1 x COM header (RS232/422/485) 1 x COM header (RS232/TTl 5V/ccTalk) (Switch by Jumper) 3 x COM header (RS232) 1 x Parallel header (Shared with GPIO) 1 x 16-bit GPIO (8 x GPI, 8 x GPO) (Shared with LPT header) 1 x LVDS Connector (LVDS/eDP signal, switch by BIOS) 1 x Speaker header 1 x Thunderbolt header
TPM	Onboard TPM 2.0 IC
OS Support	Windows 11
Form Factor	Micro ATX 9.6" x 9.6" (in inches) 244 x 244 x 46.1mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Warranty	1-Year Manufacturer's Limited Warranty
