Manufacturer	ASRock Industrial

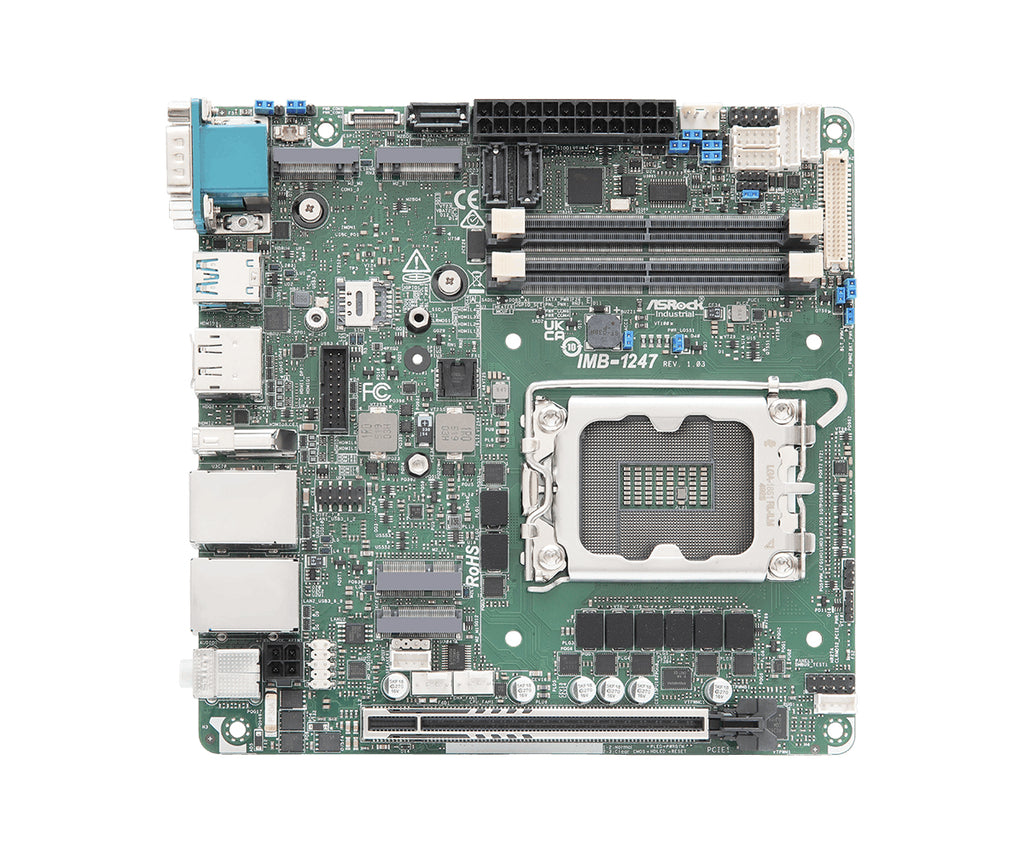

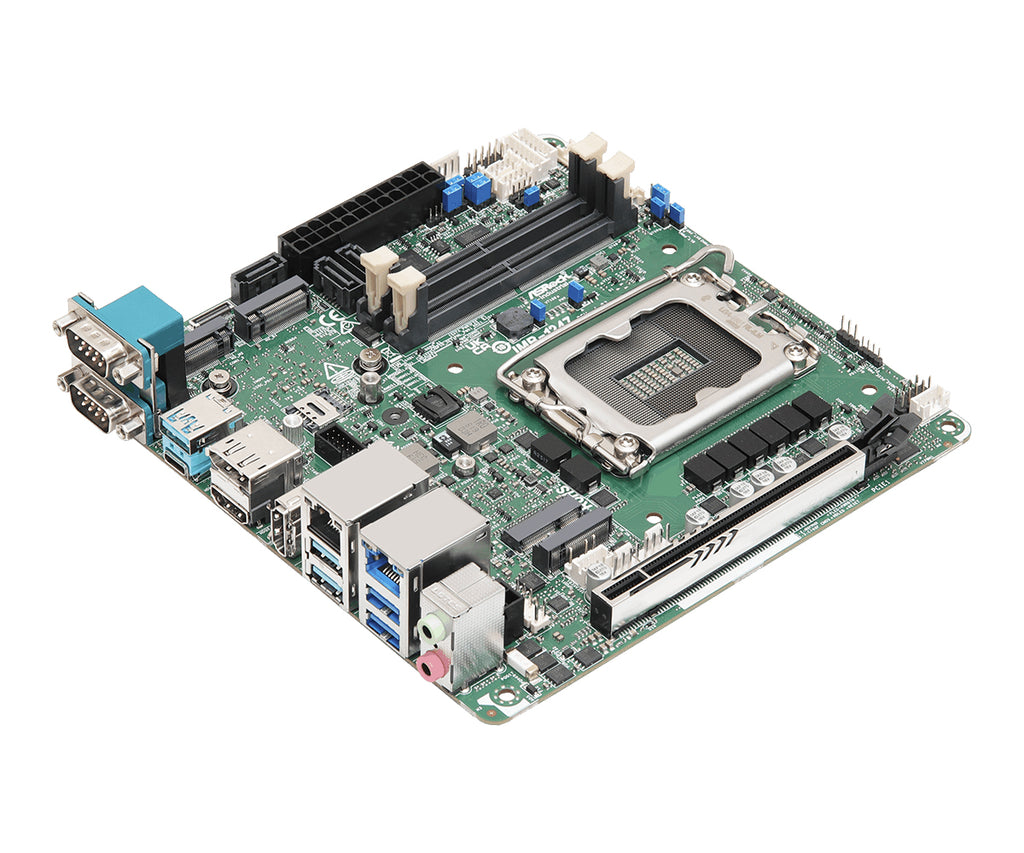

Part Number	IMB-1247
CPU	Supports Intel Core Ultra Processors, Arrow Lake-S Socket LGA 1851 Max 65W TDP
Chipset	Intel Q870 TPM 2.0 onboard IC
Memory	2 x DDR5 SODIMM slots Maximum 96GB Capacity CSO-DIMM supports 6400/5600MHz SODIMM supports 5600 MHz Dual Channel
Video	Intel Xe LPG Graphics (CPU dependent) HDMI 2.1 TMDS Max Resolution: 7680x4320@60Hz DisplayPort 2.1/1.4a Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz (Shared with eDP) eDP Max Resolution: 1920x1080@60Hz (Shared with LVDS) Supports Quad Display
Audio	Realtek ALC897 HD Audio
Storage Technology	3 x SATA3 6 Gb/s Ports Note: SATA3_7 shared with M.2 Key M1 1 x M.2 3042/2280 slot (PCI-E 4.0 x4/SATA) 1 x M.2 2242 slot (PCI-E 4.0 x4/SATA) Supports Intel VMD RAID 0/1/5/10 by indentical interfaces
Connectivity	1 x Intel I226V 2.5GbE LAN 1 x Intel I219LM GbE LAN (Supports vPro)
Expansion Slots	1 x PCI-E 5.0 x16 slot (Supports x8/x8, x8/x4/x4) 1 x M.2 2230 slot (E Key, PCI-E 4.0 x1, USB 2.0, CNVi) 1 x M.2 3042/3052 slot (B Key, PCI-E 4.0 x1, USB 3.2 Gen1, USB 2.0, and SIM) 1 x SIM Socket
Power	1 x 24-Pin ATX Power Connector 1 x 12V 4-Pin ATX Power Connector for CPU 12V DC-IN Co-Design

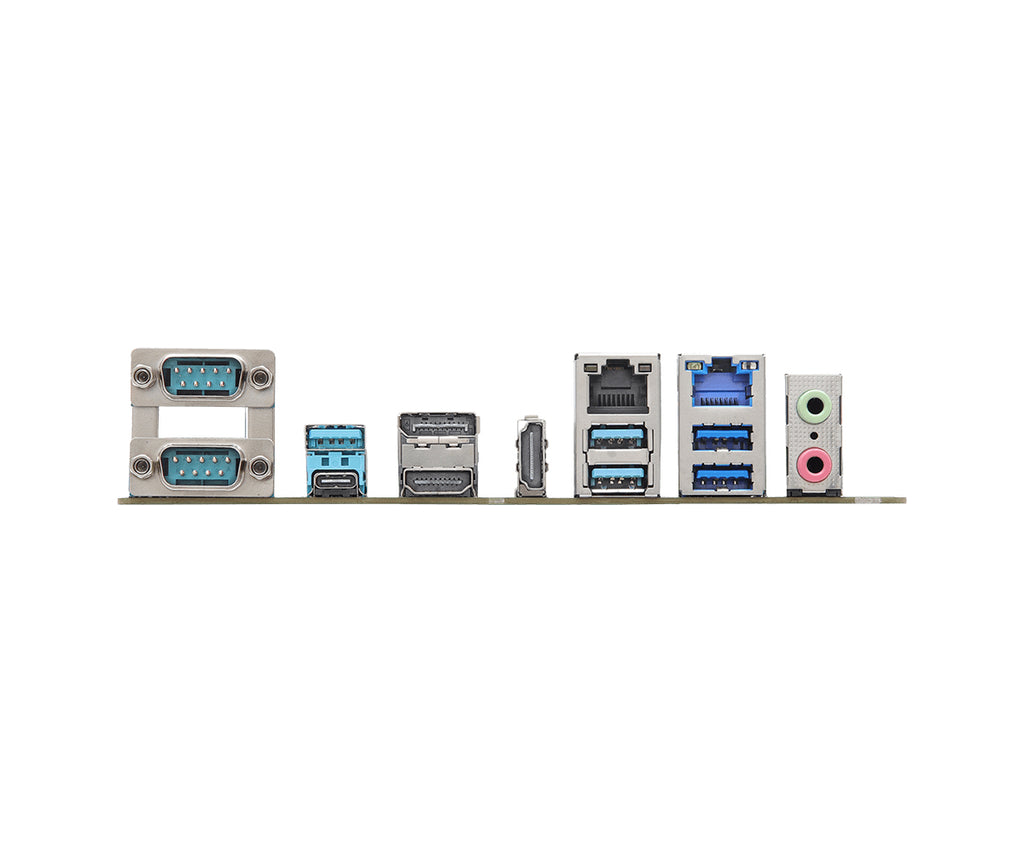

Rear I/O	2 x COM (RS232/422/485) 5 x USB 3.2 (Gen2) 1 x USB 4/Thunderbolt 4 Type-C (5V/3A, Supports DP 2.1 Display Output) 1 x DisplayPort 2 x HDMI 1 x RJ45 GbE LAN (Supports vPro) 1 x RJ45 2.5GbE LAN 2 x Audio I/O
Onboard I/O Headers	1 x USB 3.2 header (Supports 2 Ports) 1 x USB 2.0 header (2.54mm pitch, Supports 2 Ports) 2 x COM (RS232) 1 x GPIO (4 x GPI, 4 x GPO) 1 x LVDS Connectors (LVDS/eDP Signal, Switch by BIOS) 1 x Speaker header
OS Support	Windows 11
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Compliance	CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Warranty	1-Year Manufacturer's Limited Warranty
