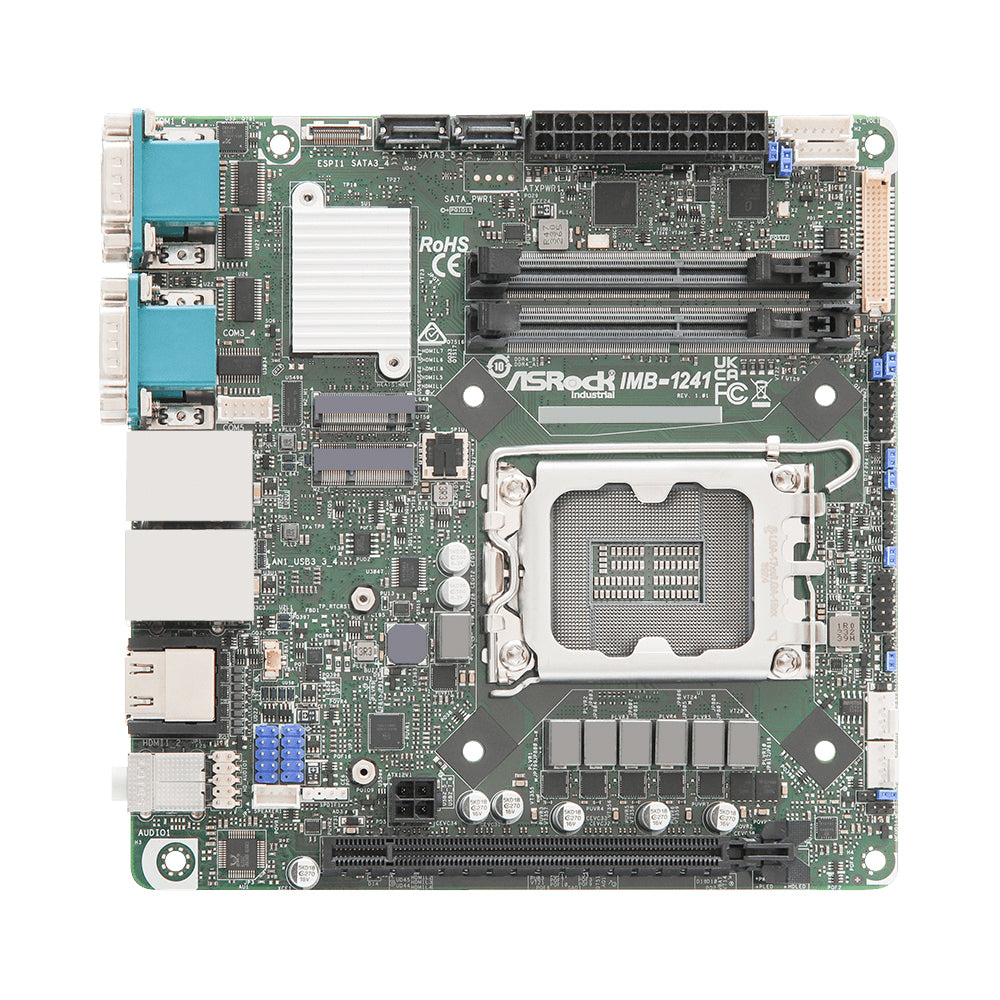

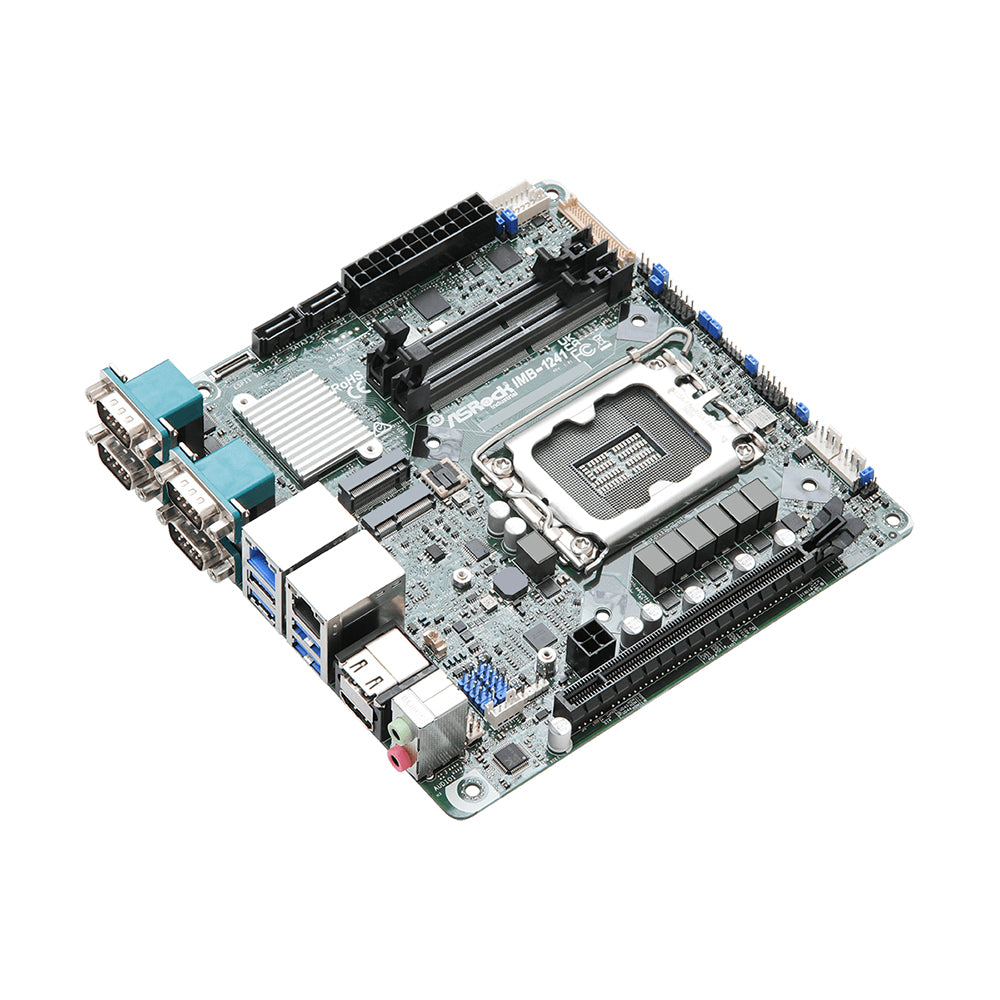

Manufacturer | ASRock Industrial |
Part Number | IMB-1241 |
CPU | Supports Intel 14th/13th/12th Gen Core Processors, Raptor Lake-S Socket LGA 1700 Maximum 65W TDP |
Chipset | Intel H610 Intel PTT TPM |
Memory |
2 x DDR4 SODIMM slots Maximum 128GB Capacity 3200 MHz |
Video | Intel UHD Graphics HDMI 2.0b Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz (Shared with eDP) eDP Max Resolution: 1920x1200@60Hz Supports Triple Displays |
Audio | Realtek ALC897, High Definition Audio. Mic-in, Line-out |
Storage Technology | 2 x SATA3 6Gb/s Connectors 1 x M.2 2280/2242 slot (PCI-E 3.0 x4, SATA, USB 2.0) |
Connectivity | 1 x Intel I219V GbE LAN 1 x Realtek RTL8125BG 2.5G LAN |
Expansion Slots | 1 x PCI-E 4.0 x16 slot 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi) |
Power | 1 x 24-Pin ATX Power Connector 1 x 12V 4-Pin ATX Power Connector for CPU |

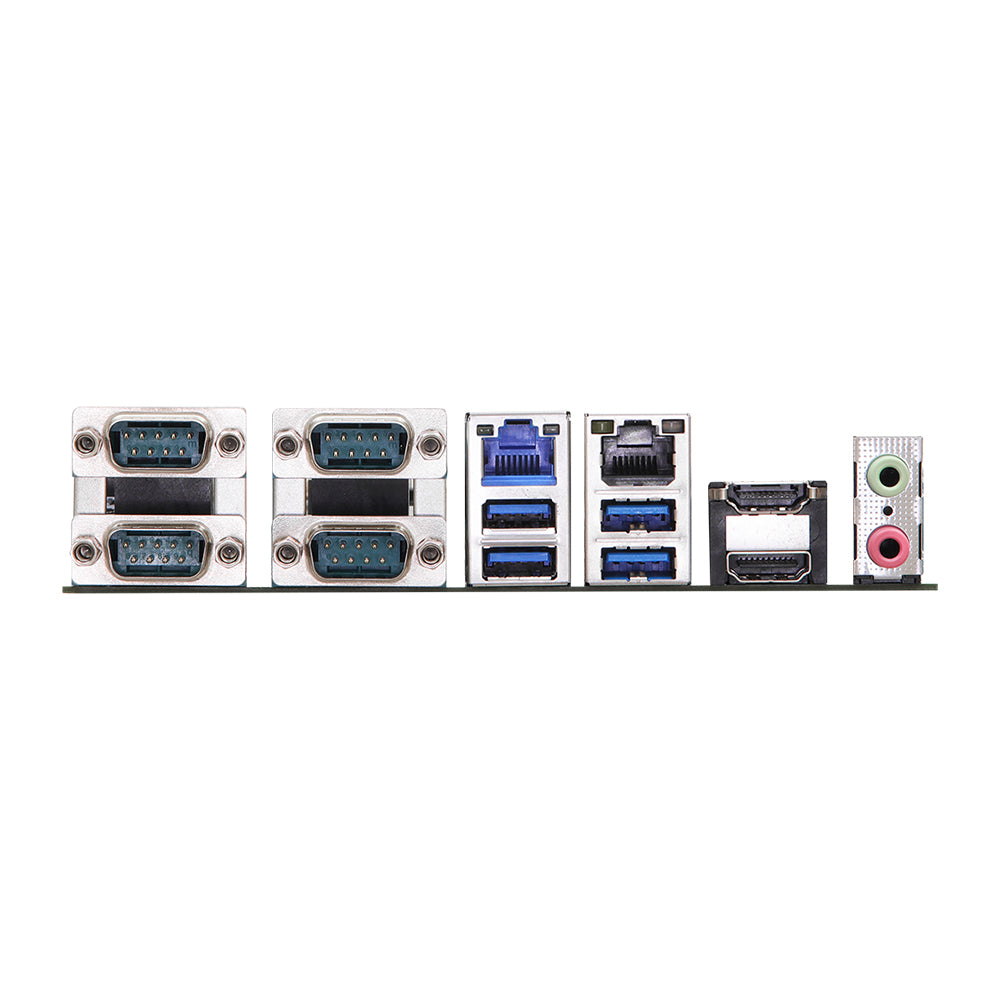

Rear I/O | 1 x COM (RS232/422/485) 3 x COM (RS232) 1 x RJ45 2.5GbE LAN 2 x USB 3.2 (Gen2) 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen1) 2 x HDMI 2.0b 2 x Audio I/O |
Onboard I/O Headers | 2 x USB 2.0 headers (Supports up to 4 ports, 2.54mm pitch) 1 x COM header (RS232) 1 x GPIO (4 x GPI, 4 x GPO) 1 x LVDS (Shared with eDP) 1 x Speaker header |
Form Factor | Mini ITX 6.7" x 6.7" 170 x 170mm |
Environmental | Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 80°C (-40°F to 176°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing) |
Compliance | CE, FCC Class B, BSMI, RCM, VCCI, UKCA |
Warranty | 1-Year Manufacturer's Limited Warranty |
