Manufacturer	ASRock Industrial
Part Number	IMB-1237
CPU	Supports Intel Core Series 2 Processor, Bartlett Lake-S Supports Intel 14th/13th/12th Gen Core Processors, Raptor Lake-S Socket LGA 1700 Maximum 65W TDP
Chipset	Intel H610 Onboard TPM 2.0 IC
Memory	2 x DDR5 SODIMM slots 5600/4800 MHz Maximum 96GB Capacity
Video	Intel UHD Graphics HDMI 2.0b Max Resolution: 4096x2160@60Hz HDMI 1.4b Max Resolution: 4096x2160@30Hz DisplayPort 1.4a Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz (Shared with eDP) eDP Max Resolution: 1920x1200@60Hz (Shared with LVDS) Supports Triple Displays
Audio	Realtek ALC662, High Definition Audio. Mic-in, Line-out
Storage Technology	2 x SATA3 6Gb/s Connectors 1 x M.2 2280/2242 slot (PCI-E 4.0 x4)
Connectivity	1 x Intel I226V 2.5G LAN 1 x Intel I219V GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi) 1 x M.2 3042/3052 slot (PCIe x1, USB 3.2 Gen1, USB 2.0) 1 x SIM Socket (Connected to M.2 Key B)
Power	24-pin ATX Connector 4-pin CPU ATX Connector 12V DC-IN Co-Design AT/ATX Supported

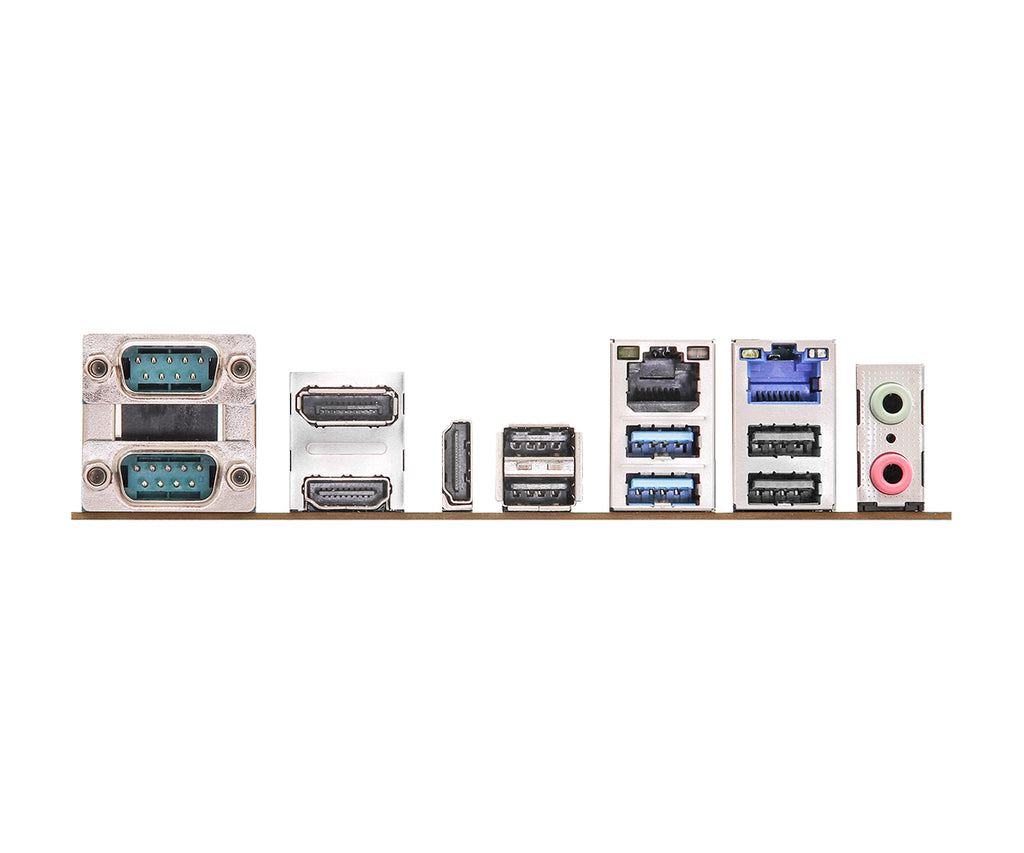

Rear I/O	2 x COM (RS232/422/485) 1 x DisplayPort 2 x HDMI 4 x USB 2.0 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) 1 x RJ45 2.5GbE LAN 2 x Audio I/O
Onboard I/O Headers	1 x USB 3.2 (Gen1) header 1 x USB 2.0 header 2 x COM (RS232) 1 x 8-bit GPIO (4 x GPI, 4 x GPO) 1 x LVDS (Connector with LVDS/eDP Signal, switch by BIOS) 1 x SATA PWR Output 1 x Speaker header
OS Support	Windows 11 Windows 10
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 80°C (-40°F to 176°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Warranty	1-Year Manufacturer's Limited Warranty
