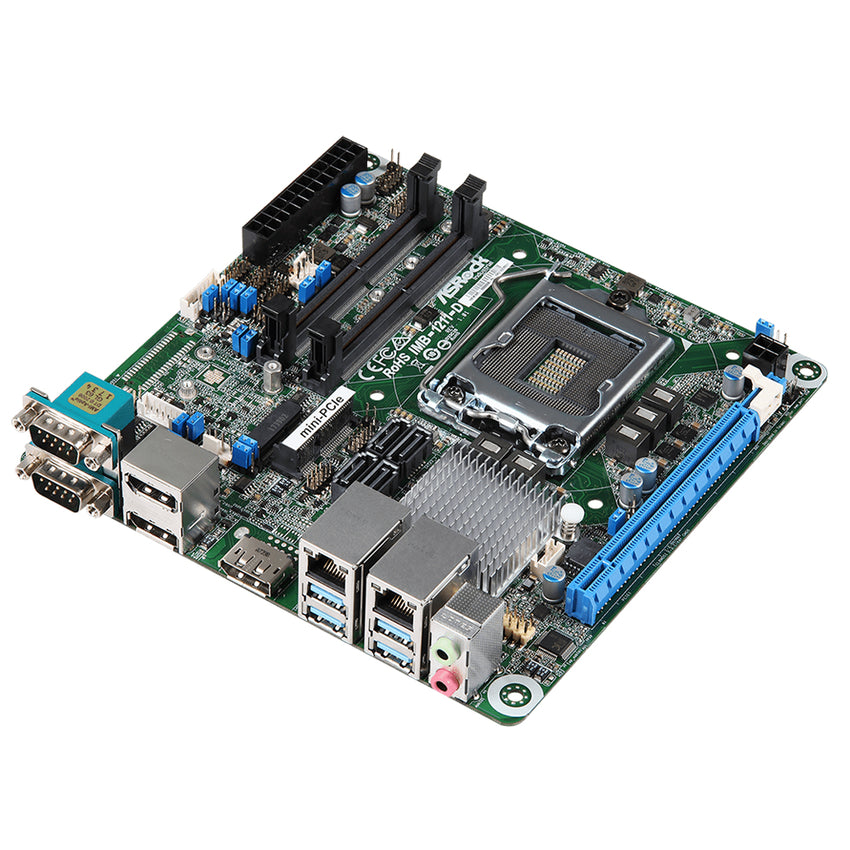

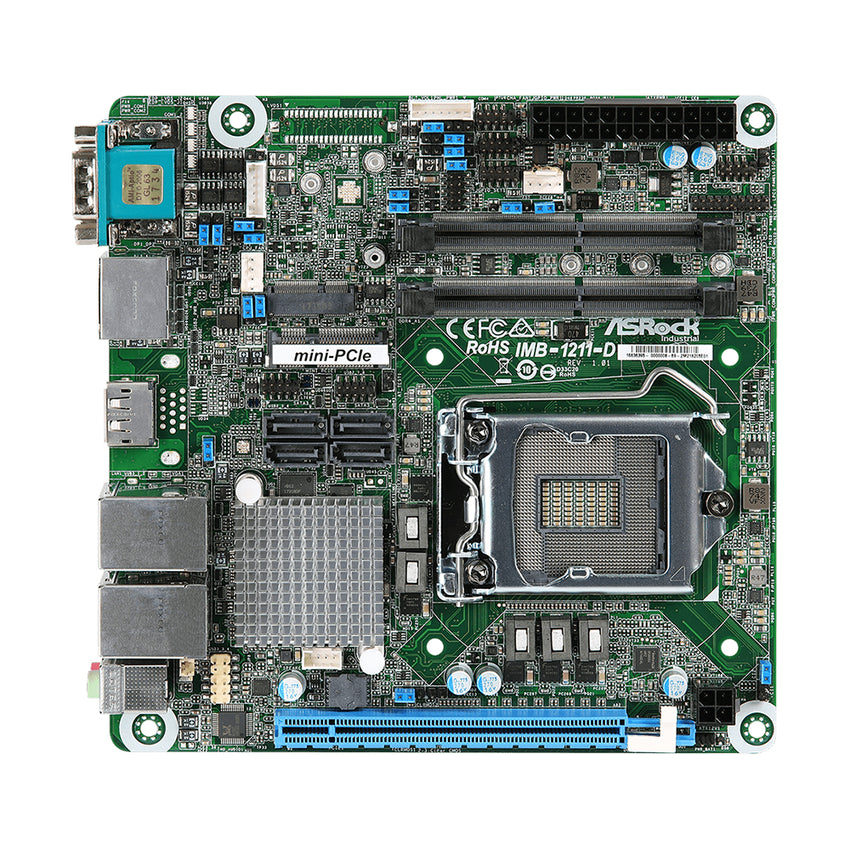

| Manufacturer | ASRock Industrial |
| Product ID | IMB-1211-D |
| CPU |
Supports Intel 8th/9th Gen Processors (Coffee Lake-S) Socket LGA 1151 Supports up to 65W TDP Performance of CPUs over 65W will be limited due to power design |
| Chipset | Intel Q370 |
| Memory |
2 x DDR4 SODIMM slots Dual Channel 2666 MHz Maximum 64GB Capacity for Core i9/i7/i5 CPUs Maximum 32GB Capacity for Core i3/Pentium/Celeron CPUs Non-ECC, Unbuffered Memory Only |
| Video |
Intel HD Graphics (CPU Dependent) DisplayPort Max Resolution: 4096x2304@60Hz eDP Max Resolution: 4096x2304@60Hz Supports Triple Displays |
| Audio | Realtek ALC887 HD Audio |
| Storage Technology |
4 x SATA3 6.0 GB/s Ports 1 x M.2 2280/2260/2242 slot (PCIe x4 or SATA) |
| Connectivity |
1 x Intel I219LM GbE LAN with AMT/vPro 1 x Intel I210 GbE LAN |
| Expansion Slots |
1 x PCI-E 3.0 x16 slot (Supports riser card x8/x8, x8/x4/x4) 1 x Mini PCI-E slot (Full/Half size, PCIe x1 and USB 2.0) 1 x M.2 2230 slot (PCIe x1, USB 2.0, and CNVI for Wireless, E Key) |

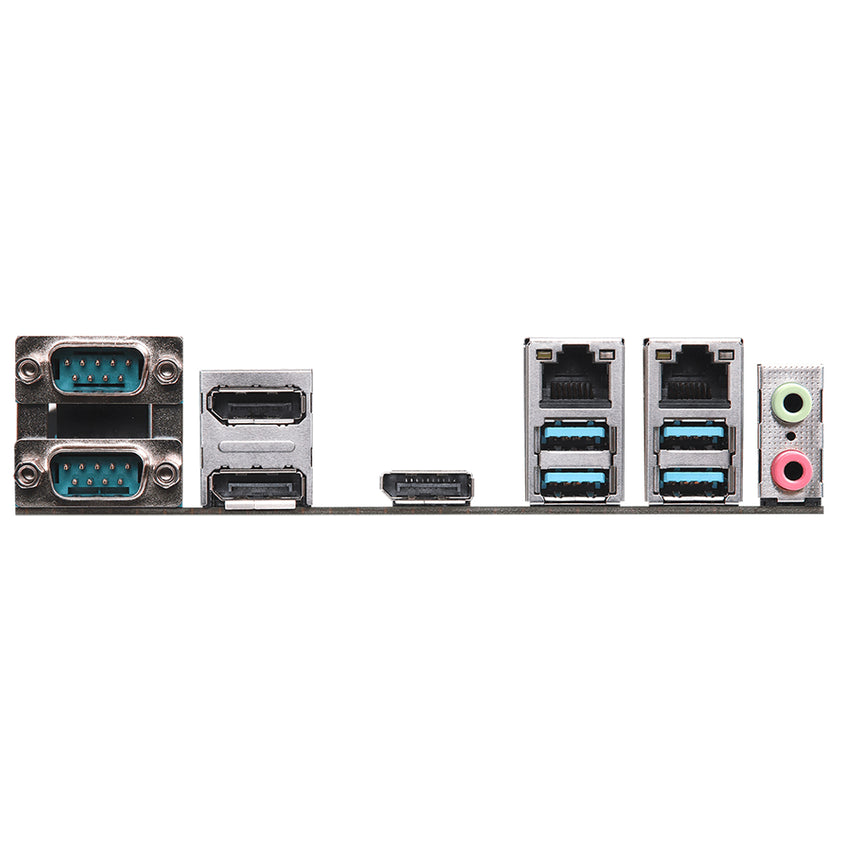

| Rear Panel I/O |
2 x COM Ports (RS232/422/485) 3 x DisplayPorts 2 x RJ45 GbE LAN 4 x USB 3.1 (Gen1) 2 x Audio I/O |
| Onboard I/O Headers |
2 x USB 2.0 headers (Supports up to 4 ports, 2mm pitch) 3 x COM header (RS232) 1 x 8-Pin GPIO (4 x GPI, 4 x GPO) 1 x eDP 1 x TPM 2.0 onboard IC 1 x Speaker header |
| Power |
24+4 Pin ATX Power Connector AT/ATX Supported |
| Form Factor |
Mini-ITX 170 x 170mm 6.7" x 6.7" (in inches) |
| Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% Non-Operating Humidity: 5% to 90% |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: IMB-1211-D
