Manufacturer	ASRock Industrial

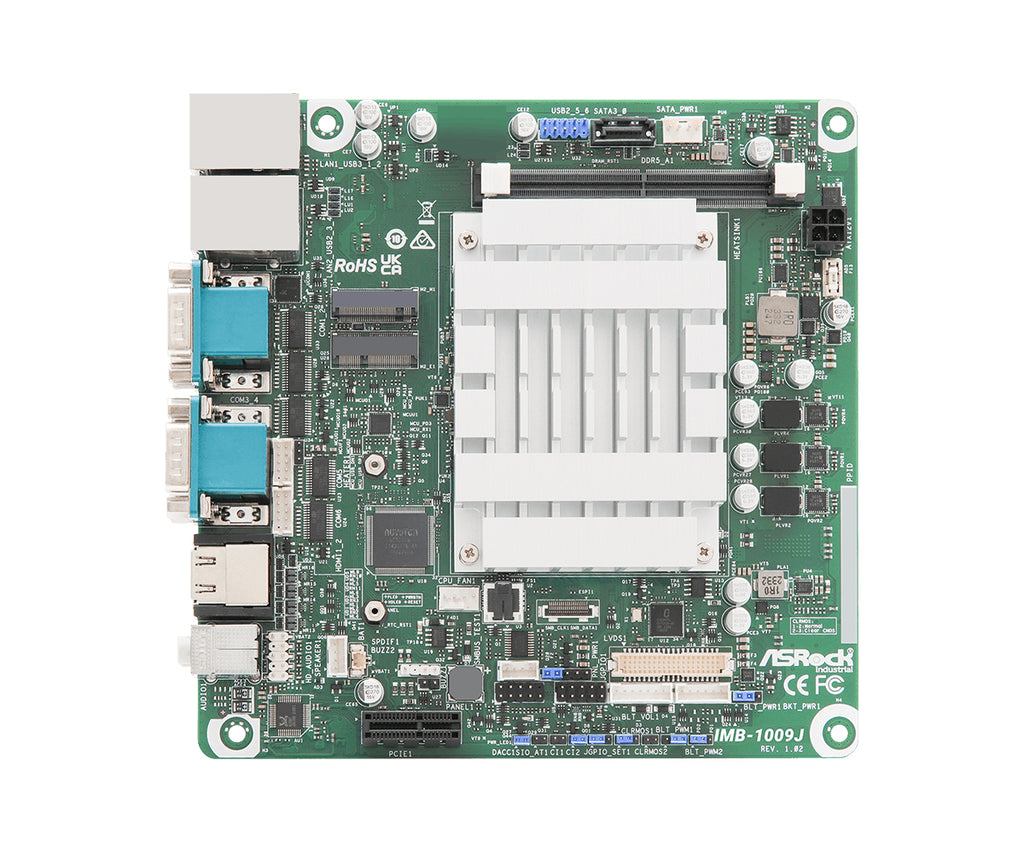

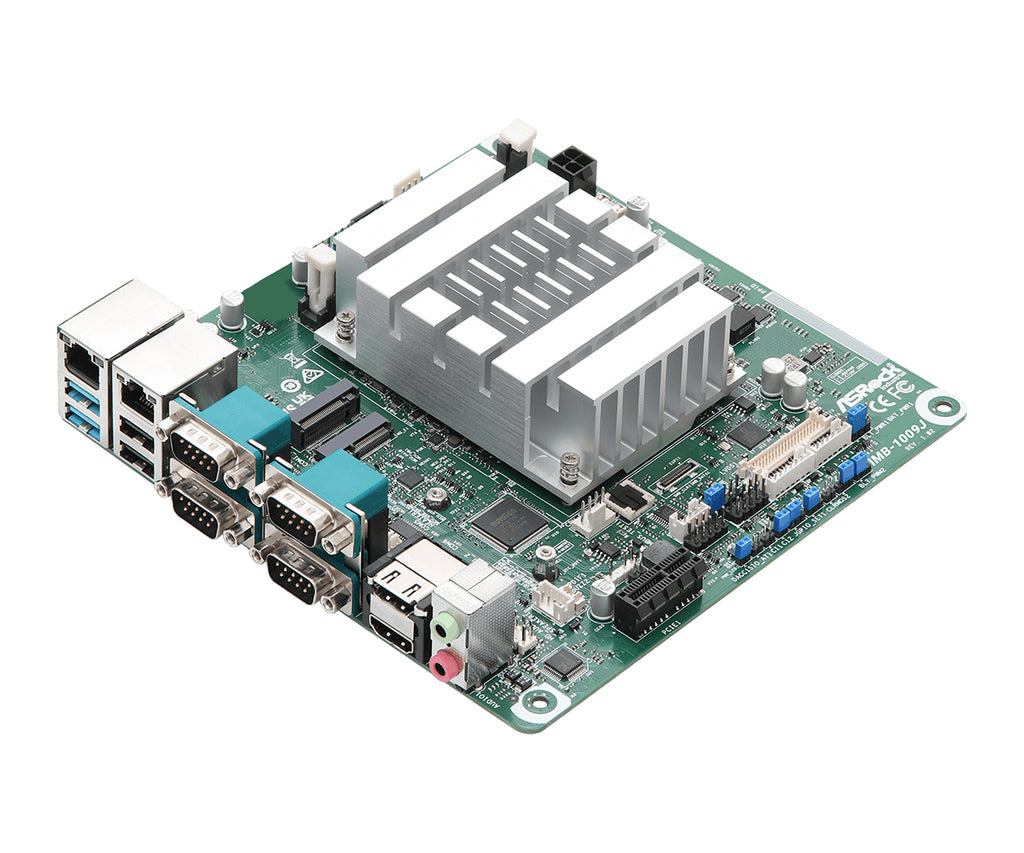

Part Number	IMB-1009J
CPU	Intel N150 Processor 4 Cores / 4 Threads 3.6 GHz 6W TDP, 6 MB Intel Smart Cache
Chipset	SoC Intel PTT
Memory	1 x DDR5 SODIMM slot Maximum 32GB Capacity 4800 MHz
Video	Intel Graphics 1 GHz 24 Execution Units HDMI 2.0b Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 1920x1080@60Hz Supports Triple Displays
Audio	Realtek ALC897 HD Audio
Storage Technology	1 x SATA3 Connectors 1 x M.2 2280/2242 slot (PCIe 3.0 x1, SATA)
Connectivity	2 x Realtek RTL8111H GbE LAN
Expansion Slots	1 x PCI-E 3.0 x1 1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi)
Power	4-Pin ATX 12V DC-IN

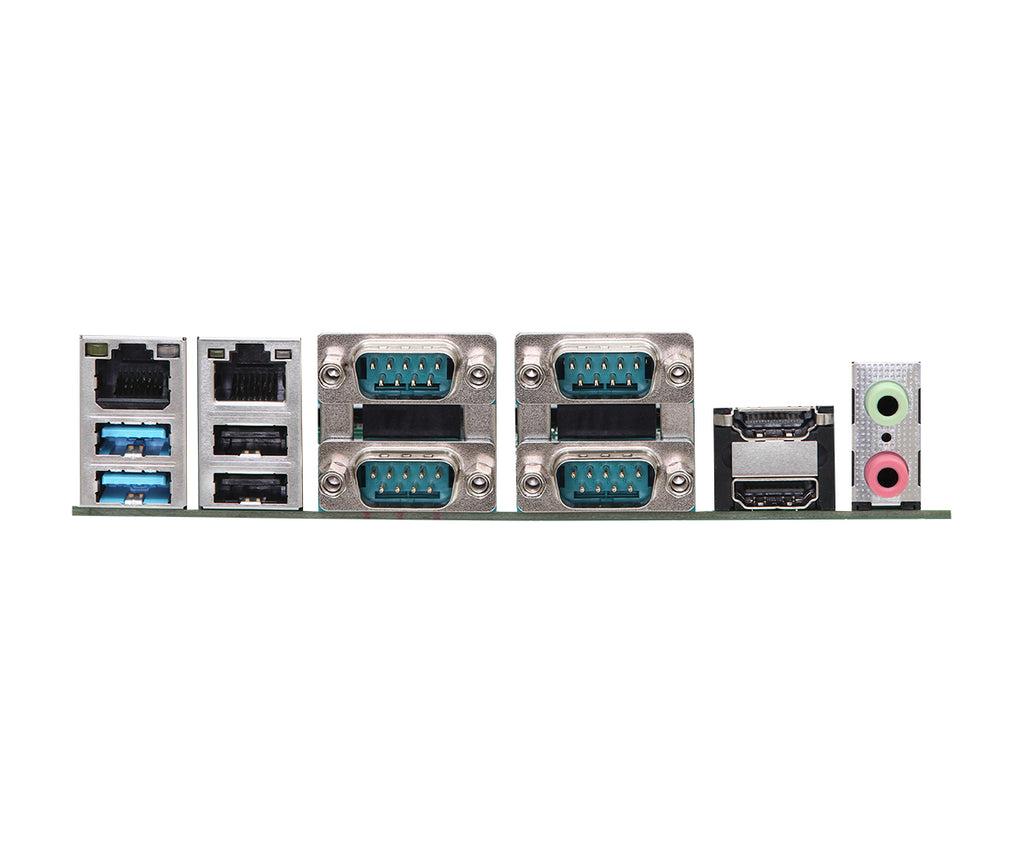

Rear I/O	2 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) 2 x USB 2.0 1 x COM (RS232/422/485) 3 x COM (RS232) 2 x HDMI 2.0b 2 x Audio I/O
Onboard I/O Headers	1 x USB 2.0 header (2.54mm pitch, Supports 2 ports) 2 x COM headers (RS232) 1 x GPIO (4 x GPI, 4 x GPO) 1 x LVDS connector (with LVDS/eDP signal, switch by BIOS) 1 x Speaker header
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Compliance	CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Warranty	1-Year Manufacturer's Limited Warranty
