| Manufacturer | ASRock Industrial |
| Product ID | iEP-5010G-010 |
| Model Name | iEP-5010G |
| CPU | Intel Atom x6425RE Processor 4 Cores / 4 Threads 1.90 GHz 12W TDP, 1.5MB L2 Cache |
| Chipset | SoC Onboard TPM 2.0 |
| Memory | 2 x DDR4 SODIMM slots Maximum 32GB Capacity 3200 MHz Supports In-Band ECC |
| Video | Intel UHD Graphics 400 MHz 32 Execution Units HDMI Max Resolution: 3840x2160@60Hz VGA Max Resolution: 1920x1200@60Hz Supports Dual Displays |
| Audio | 1 x Mic In 1 x Line Out |
| Storage Technology | 1 x SATA3 6.0Gb/s Connector 1 x M.2: PCI-E 3.0 x4 or SATA 1 x Micro SD card Slot (SD Card Specifications version 3.01) |
| Connectivity | 1 x Intel I226-IT 2.5GbE LAN Supports TSN, TCC under Ubuntu Supports WDT, Intel In-Band Manageability 2 x Intel I210-IT GbE LAN Optional 2 x PoE/Non-PoE Intel I210-AT LAN |
| Expansion Slots | 1 x M.2 3042/3052 slot (B Key, PCIe 3.0/USB3.2) Supports 4G LTE/5G Module 1 x Nano SIM Card Slot 1 x M.2 2230 slot (E Key, PCIe 3.0/USB2.0) Supports WIFI/BT Module |

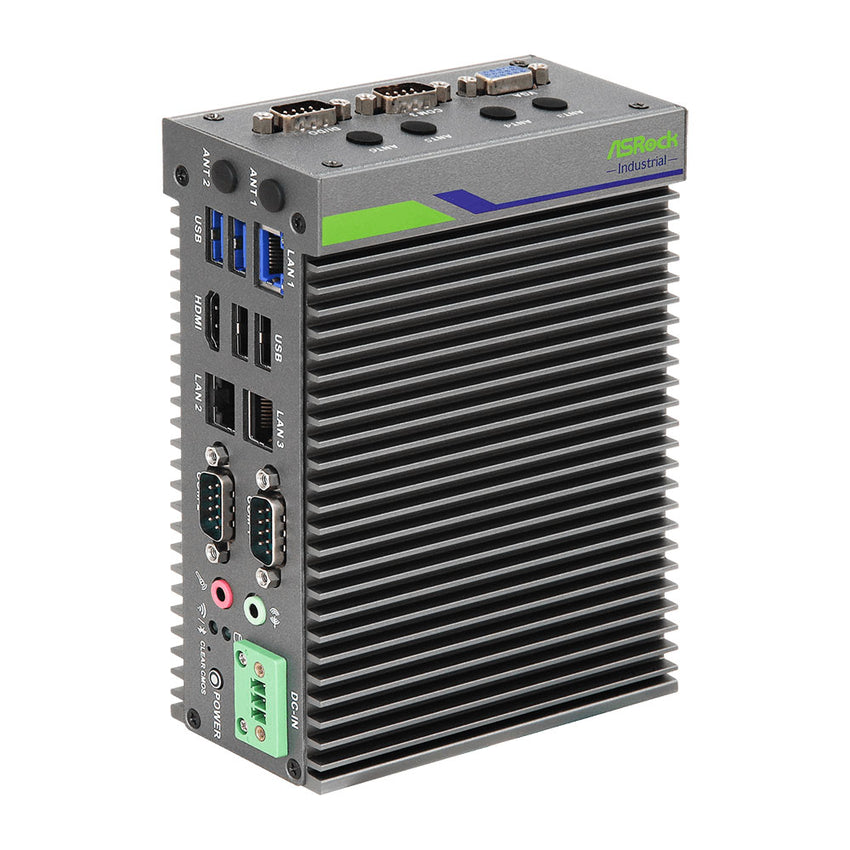

| Rear Panel I/O | 2 x Antenna Cutout 1 x RJ45 2.5GbE LAN 2 x USB 3.2 (Gen1) 2 x USB 2.0 1 x HDMI 2 x RJ45 GbE LAN 2 x COM (RS232/422/485) 2 x Audio I/O 2 x Status LED (HDD, WIFI/BT) 1 x 6-36V 3-Pin Terminal Block (Phoenix Type) 1 x Power Button with LED 1 x Clear CMOS Button |
| Top Panel I/O | 4 x Antenna Cutout 1 x VGA 1 x COM (RS232/422/485) 1 x 9-Pin D-Sub Connector (4DIs/4DOs) |
| Drive Support | 1 x 2.5" SATA Drive Bay (9.5mm Max Height) 1 x M.2 2280 slot (PCI-E 3.0 x4/SATA) 1 x Micro SD Card slot (SD Card Specification version 3.01) |
| OS Support | Windows 10 Ubuntu 22.04 LTS |
| Power Supply | 6-36V 3-Pin Terminal Block DC-IN |
| Case Dimensions | 157 x 125 x 58mm 6.2" x 4.9" x 2.3" (in inches) |

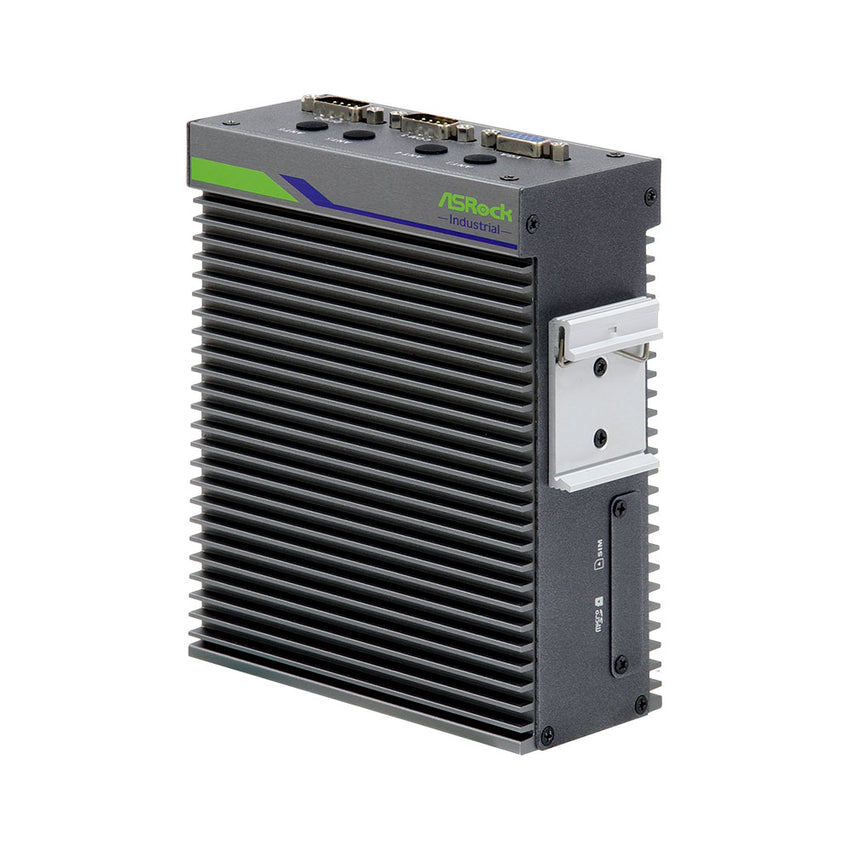

| Mounting | DIN Rail Wall Mounting |
| Environmental | Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 95%@40°C (non-condensing) Operating Vibration: 5 Grms, 5-500Hz, 3 axes with SSD Contact ESD: +/-8 KV, Air +/-15 KV Operating Shock: 100G, half sine 11ms durationg with SSD CE Safety: LVD |
| Compliance | FCC Class A (EN61000-6-4/-2) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: iEP-5010G-010
