Product ID	iBOX-V1000M
CPU	AMD Ryzen Embedded V1605B Processor 2.0 - 3.6 GHz 4 Cores / 8 Threads 25W TDP
Chipset	SoC
Memory	2 x DDR4-2400MHz SODIMM slots Maximum 32GB capacity Notes: 32GB requires 2 x 16GB
Video	AMD Radeon Vega 8 Graphics 1100 MHz Supports Triple Displays Max Resolution (for single display): 4096x2160@60Hz
Audio	N/A
Storage Technology	SATA3 6Gb/s M.2: PCI-E x4 and SATA support
Connectivity	2 x Realtek RTL8111G GbE LAN
Expansion Slots	1 x M.2 slot (2230, for Wireless)

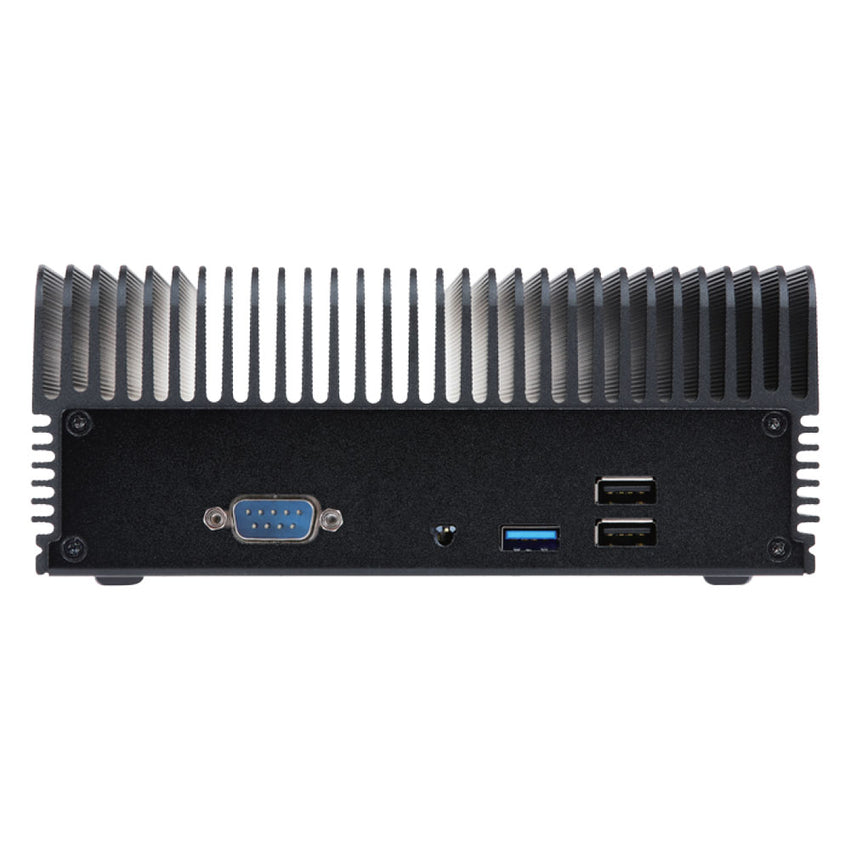

Front Panel I/O	1 x Serial COM Port (RS232/422/485) 1 x Audio Out 1 x USB 3.1 (Gen1) 2 x USB 2.0

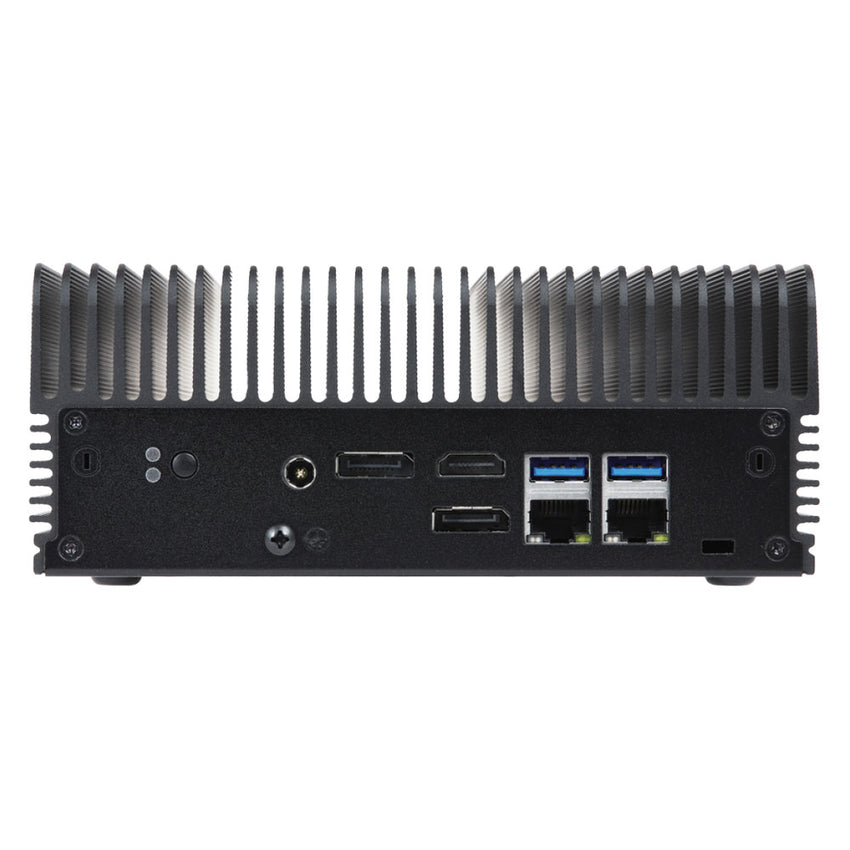

Rear Panel I/O	2 x Status LED (Power, HDD) 1 x Power Button 1 x 12V DC-IN 2 x DisplayPort 1 x HDMI 2 x USB 3.1 (Gen1) 2 x RJ45 GbE LAN
Drive Support	1 x 2.5" Drive Bay 1 x M.2 slot (2242/2260/2280, PCI-E x4 or SATA3)
Power Supply	12V DC-IN 96W AC/DC Adapter
Case Dimensions	171.8 x 150 x 71.5mm 6.8" x 5.9" x 2.8" (in inches)
Mounting	Wall and VESA Mounting Bracket
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -40°C to 80°C (-40°F to 176°F) Operating Humidty: 10% - 90% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
