| Manufacturer | ASRock Industrial |
| Product ID | iBOX-1315UE/D5 |
| CPU | Intel Core i3-1315UE Processor 2 P-Cores / 4 E-Cores / 8 Threads 1.2 - 4.5 GHz 12W - 55W, 12MB Intel Smart Cache |
| Chipset | SoC TPM 2.0 Onboard IC |
| Memory | 2 x DDR5 SODIMM Slots Maximum 32GB Capacity 4800 MHz |
| Video | Intel UHD Graphics 1.20 GHz 64 Execution Units HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 2.1/1.4a Max Resolution: 4096x2160@60Hz Supports Quad Displays |
| Audio | Realtek ALC256 HD Audio |
| Storage Technology | 1 x SATA3 6Gb/s Ports 1 x M.2 2280/2260/2242 slot (PCI-E 4.0 x4) Note: M.2 2280 supported by bracket |
| Connectivity | 1 x Intel I226LV 2.5GbE LAN with vPro 1 x Intel I226V 2.5GbE LAN |
| Expansion Slots | 1 x M.2 2230 slot (E-Key, PCIe x1, USB 2.0, CNVi) |

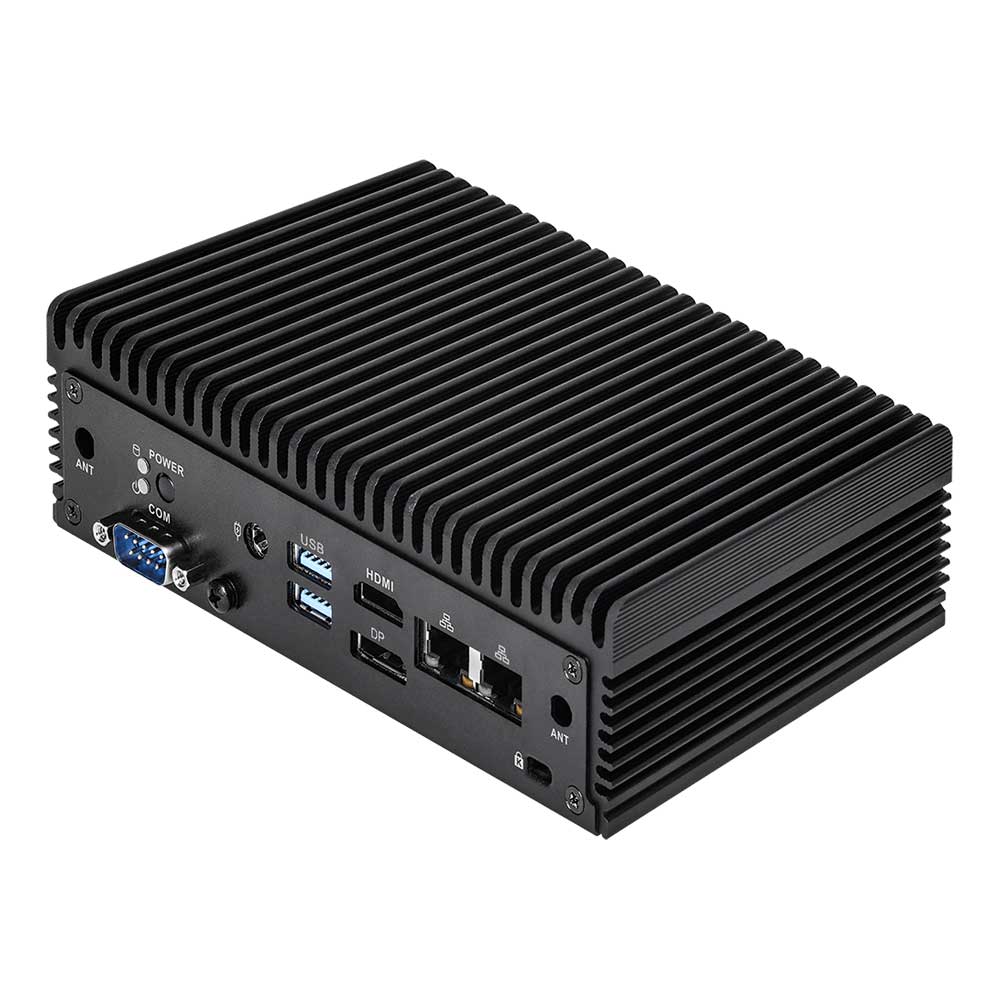

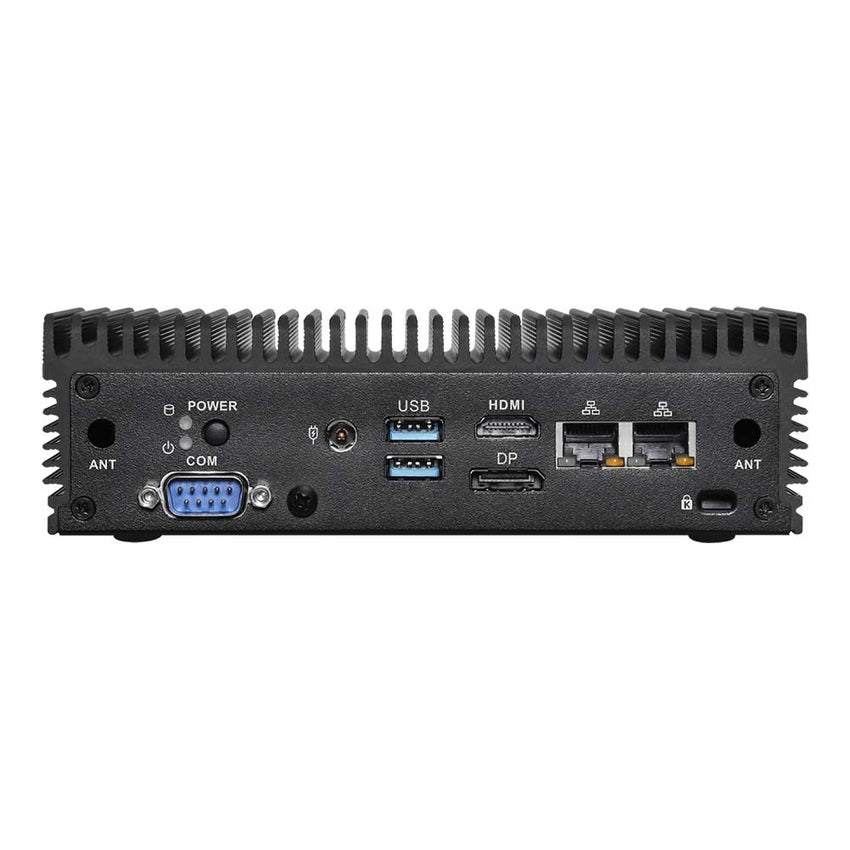

| Rear Panel I/O | 2 x Antenna Cutout 2 x Status LED (Power, HDD) 1 x Power Button 1 x COM (RS232/422/485) 1 x DC-IN 2 x USB 3.2 (Gen2) 1 x HDMI 1 x DisplayPort 2 x RJ45 2.5G LAN 1 x Kensington Lock |

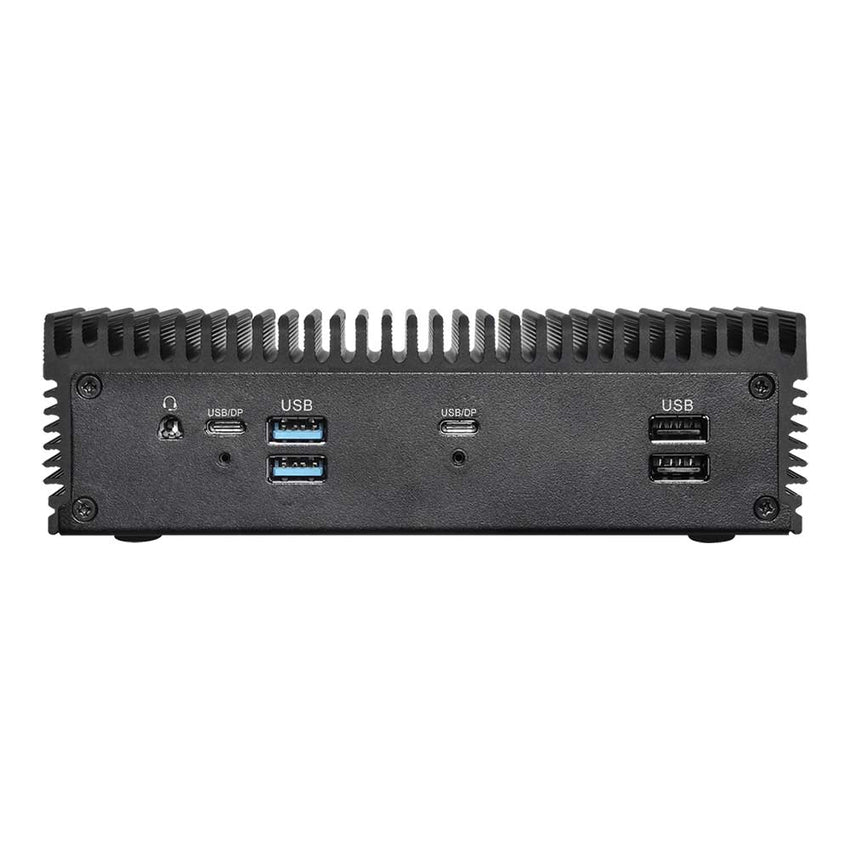

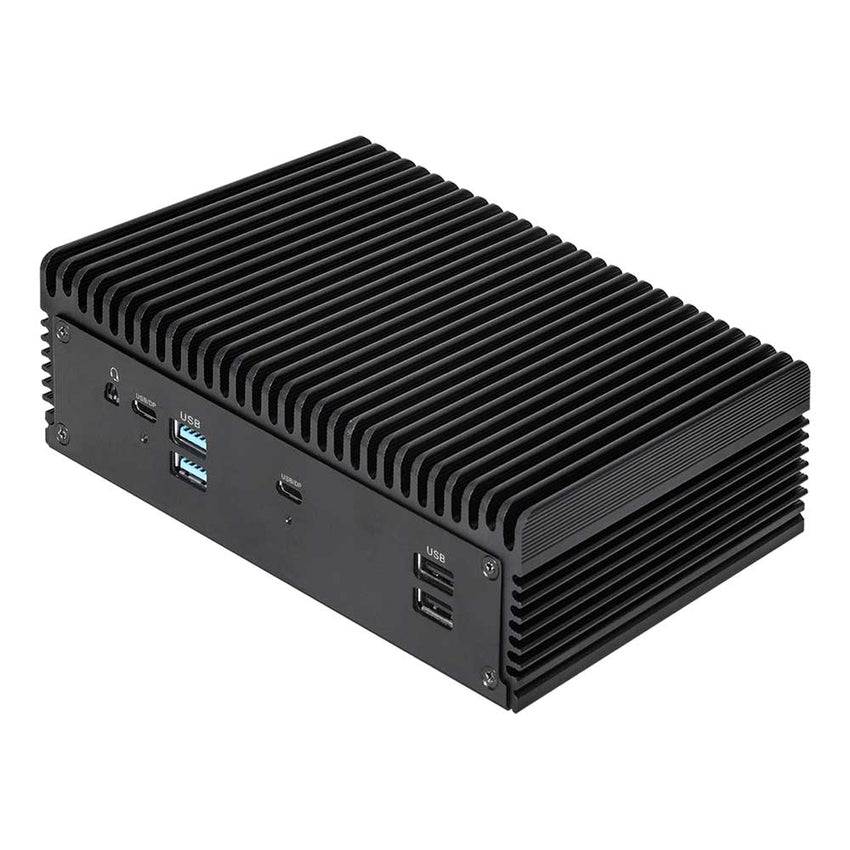

| Front Panel I/O | 1 x Audio I/O x USB 4/Thunderbolt 4 (Supports DP 2.1 display output) 2 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2) Type-C (Suppots DP 1.4a display output) 2 x USB 2.0 |
| Drive Support | 1 x M.2 2280/2260/2242 slot (PCI-E 4.0 x4) |
| OS Support | Windows 10 Windows 11 |
| Power Supply | 12-19V DC-IN 90W 19V Power Adapter |
| Case Dimensions | 171.8 x 109.45 x 50.05mm 6.76" x 4.31" x 1.97" (in inches) |
| Mounting | VESA Mount Wall Mount DIN Rail |
| Environmental | Operating Temperature: -20°C to 50°C (-4°F to 122°F) with air flow Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing) |
| Compliance | CE, FCC |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: iBOX-1315UE/D5
