| Manufacturer |
ASRock Industrial |
| Product ID |
iBox-1265UE |
| CPU |
Intel Core i7-1265UE Processor
2 P-Cores / 8 E-Cores / 12 Threads
3.50 GHz Max E-Core Turbo Frequency
4.70 GHz Max P-Core Turbo Frequency
15W TDP, 12MB Intel Smart Cache |
| Chipset |
SoC
TPM 2.0 Onboard IC
|
| Memory |
2 x DDR4 SODIMM slots
Maximum 64GB Capacity
3200 MHz
Non-ECC, Unbuffered Memory Only |
| Video |
Intel Iris Xe Graphics
1.25 GHz
96 Execution Units
HDMI Max Resolution: 4096x2160@60Hz
DisplayPort Max Resolution: 4096x2160@60Hz
DisplayPort via Type-C Max Resolution: 4096x2160@60Hz
Supports Quad Display
|
| Audio |
Realtek ALC233 High Definition Audio
|
| Storage Technology |
1 x SATA3 6.0 GB/s Ports
M.2: PCI-E 4.0 x4
|
| Connectivity |
2 x Intel I225LM 2.5 GbE LAN
Supports iAMT/vPro |
| Expansion Slots |
1 x M.2 2230 slot (PCIe x1, USB 2.0, CNVi)
|

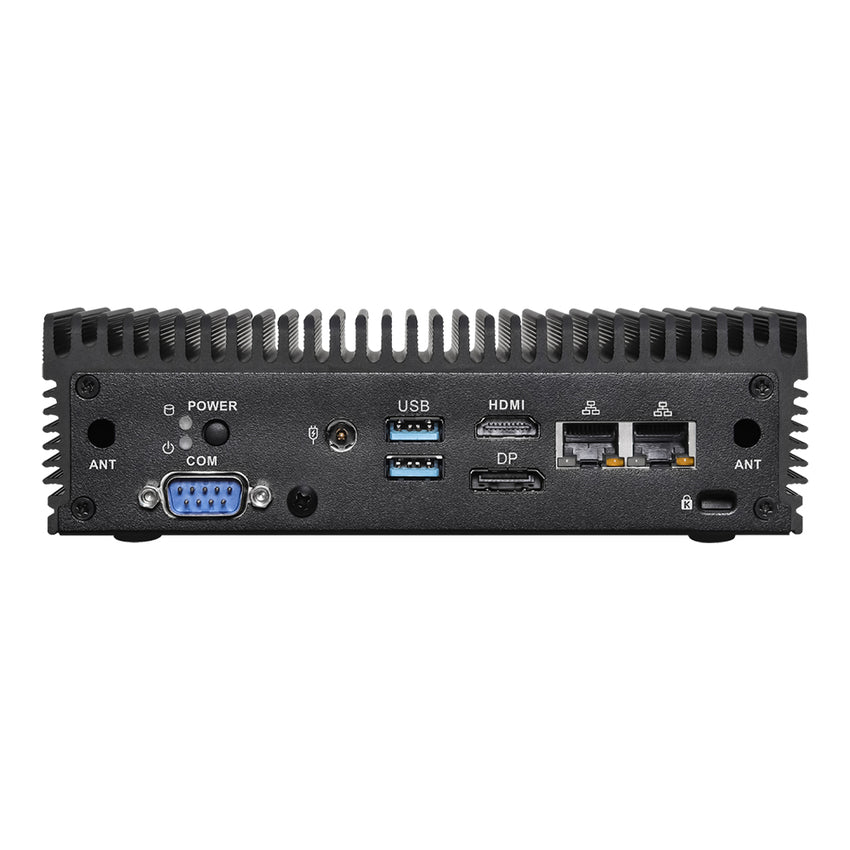

| Rear Panel I/O |
2 x Antenna Cutouts
2 x Status LED (HDD, Power)
1 x Power Button
1 x COM (RS232)
1 x 12-19V DC-IN
2 x USB 3.2 (Gen2) Type-A
1 x HDMI
1 x DisplayPort
2 x RJ45 2.5GbE LAN
1 x Kensington Lock
|

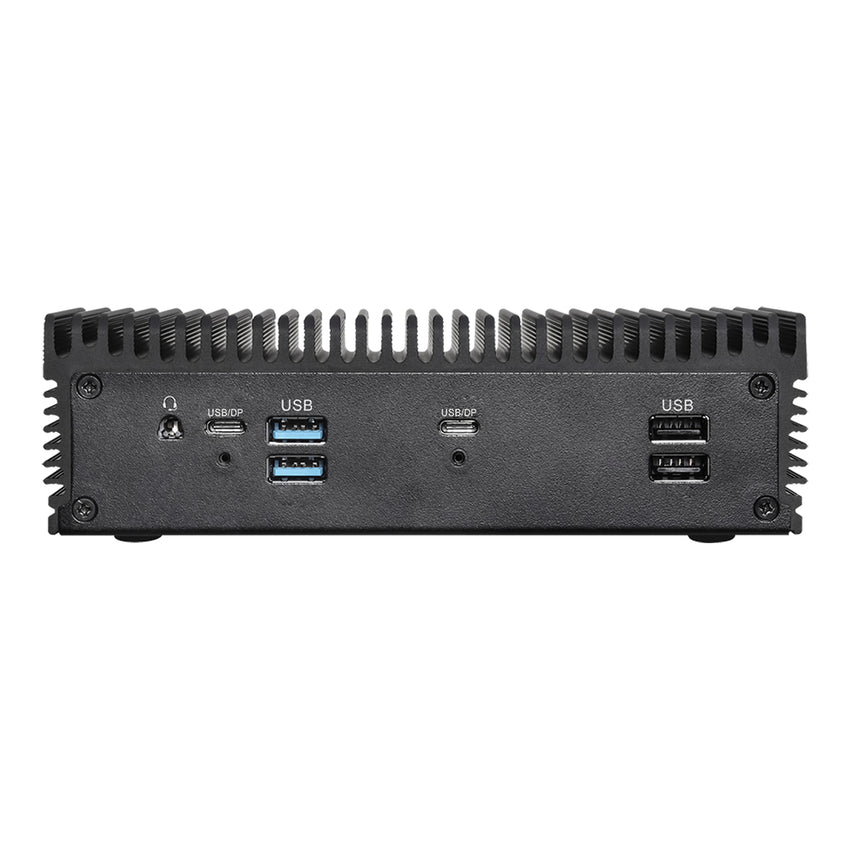

| Front Panel I/O |
1 x Audio I/O
2 x USB 3.2 (Gen2) Type-C (Supports DisplayPort 1.4a Output)
2 x USB 3.2 (Gen2) Type-A
2 x USB 2.0
|
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280/2260/2242 slot (PCI-E 4.0 x4)
Supports 2280 by bracket
|
| OS Support |
Windows 11
Windows 10
|
| Power Supply |
12-19V DC-IN
90W 19V AC/DC Adapter
|
| Case Dimensions |
171.8 x 50.05 x 109.45mm
6.76" x 1.97" x 4.31" (in inches)
|
| Mounting |
Wall Mount Kit
VESA Mounting
Din RAIL (By Request)
|
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 5% to 90% (non-condensing)
Non-operating Humidty: 5% to 90% (non-condensing) |
| Compliance |
CE, FCC Class A
|
| Warranty |
1-Year Warranty on Parts and Labor |
